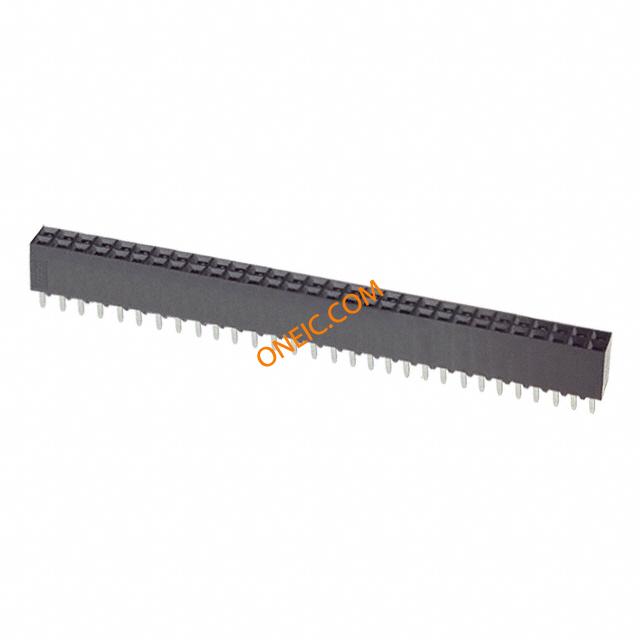

8-534206-0

制造商	TE Connectivity Ltd.
描述	Conn Socket Strip SKT 60 POS 2.54mm Solder ST Thru-Hole Gang of Tubes .100 inch AMPMODU Receptacles CONN RECEPT 60POS .100 VERT DUAL Conn Socket Strip SKT 60 POS 2.54mm Solder ST Thru-Hole Gang of Tubes Search Keywords:AMPMODU, board to board, NIC, Network Interface Cards, PC Cards, MIL-C-55032, MIL-C-24519, pcb connectors, wire to board, signal, AMPMODU 60 Positions Vertical Through-Hole Dual Row Header 60 MODII VRT DR CE 100/115
分类	连接器解决方案矩形连接器FPC/FFC矩形连接器

对参数有疑问？问 AI 助手

商业参数

标准包装数量

Rail / Tube

合规参数

RoHS	Lead free / RoHS Compliant	标准	CSA LR7189, UL E28476
MIL-C-55032	No	材料阻燃等级	UL 94V-0

电气参数

输入电阻	5000	额定交流电压	333
连接器阻抗	Closed Entry, Top	最大额定电流	2
初始电阻（最小）	12

机械参数

颜色	Black	间距	2.54 mm
高度	5.03 mm [ .198 in ]	包装方式	Tube
壳体颜色	黑色	引脚样式	直角
轴径尺寸	不带	排间距	0.100" (2.54mm)
端接方式	Solder	触头类型	Female Socket
引脚间距	0.100" (2.54mm)	安装类型	Through Hole
连接器类型	Receptacle	接触镀层	Gold Over Nickel
安装样式	标准	排数	2
插入件材料	磷青铜	操作力	Standard
壳体材料	聚酯 - GF	包装数量	7
面板安装类型	通孔 - 焊接	端接样式	插座
触点数	60	接触件尾部长度	2.92
位数	60	兼容外壳尺寸（如TM-700等）	与接头配合
典型触点布局	Short Point	端子柱长度	2.92 mm [ .115 in ]
接触镀层厚度	30µin (0.76µm)	每排/每行位置数	All

产品信息

备注	TE 建议使用接合金或带双层电镀母端配件的双层电镀公端。, 为了获得最小接合柱长度，在最大触点尺寸上增加 .51 [.020]（不包含斜面上的柱引线）。	类型	Socket Strip
连接器性别	SKT	系列	AMPMODU, MOD II
可密封	否	可堆叠	Yes
产品子类型	连接器	装配配置	Board Standoff
加载位置数	All
