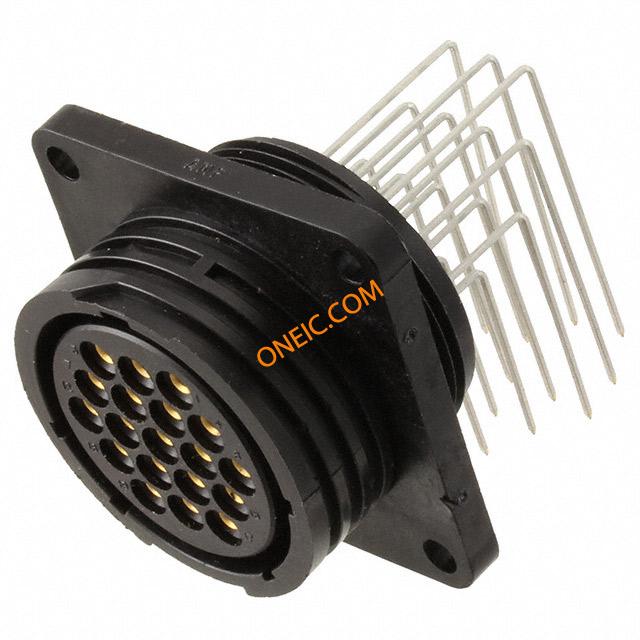

796502-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn CPC SKT 19 POS Solder RA Thru-Hole 19 Terminal 1 Port CONN RCPT CPC 19POS R/A 30GOLD CPC (Circular Plastic) and Circular Metal-Shell Connectors CPC (Circular Plastic) and Circular Metal-Shell Connectors Product Highlights:ConnectorConnector Type = Receptacle19 Positions19 Signal Positions0 Power PositionsSearch Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC CPC POSTED RCPT,23-19,R/A |
| 分类 |
商业参数
| 其他名称 | A109479 | 标准包装规格 | 8 |
| 标准包装数量 | Trays | ||
合规参数
| RoHS | Lead free / RoHS Compliant | ||
电气参数
| 输入端 | 2.15 | 额定电压 | 600VAC/DC |
| 防溅等级 | 无 | 最大额定电流 | 13A |
| 连接器类型 - 电压输入 | 反向 | ||
机械参数
| 外形尺寸(长x宽) | 23 | 包装方式 | Tray |
| 方向 | A | 端接方式 | Solder |
| 安装类型 | Through Hole | 连接器类型 | Receptacle, Female Sockets |
| 接触镀层 | Gold | 紧固类型 | Threaded |
| 引脚数 | 0 | 外壳材料（壳体） | 母端, 母端 |
| 包装数量 | 8 | 面板安装类型 | 带有 |
| 端接样式 | 插座 | 触点数 | 19 |
| 位数 | 19 | 外壳尺寸-插件 | 23-19 |
| 安装孔直径 | 带有 | 外壳材料及表面处理 | Thermoplastic |
| 接触镀层厚度 | 30µin (0.76µm) | 第一连接器安装类型 | Panel |
产品信息
| 类型 | CPC | 连接器性别 | RCP |
| 钥匙类型 | A | 产品子类型 | 连接器组件 |
环境参数
| 工作范围 | 密封 | 工作温度 | -40°C ~ 105°C |
