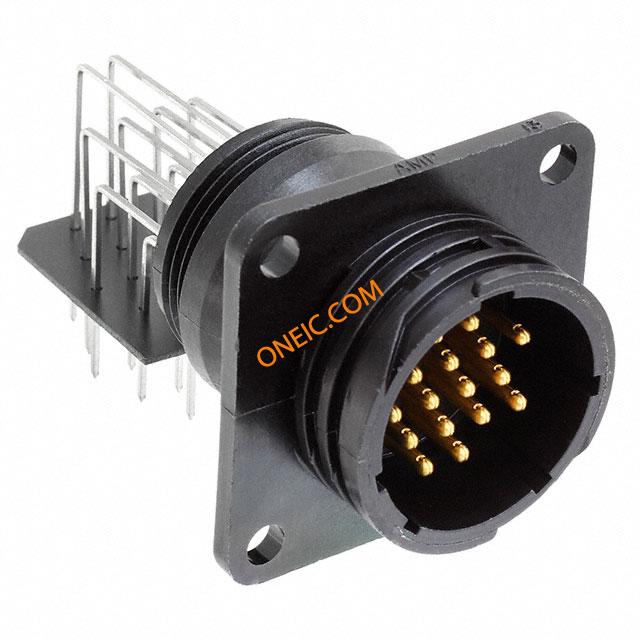

796404-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn CPC PIN 16 POS Solder RA Thru-Hole 16 Terminal 1 Port CPC Connectors CONN RCPT CPC 16POS R/A GOLD CPC POSTED RCPT,17-16,R/A |
| 分类 |
商业参数
| 其他名称 | A109475 | 标准包装数量 | Trays |
合规参数
| RoHS | Contains lead / RoHS non-compliant | 合规性 | No |
| 无铅定义 | Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c | RoHS/ELV合规状态 | Not ELV/RoHS compliant |
| UL阻燃等级 | UL 94V-0 | ||
电气参数
| 输入端 | 2.43 | 额定电压 | 600VAC/DC |
| 防溅等级 | 无 | 最大额定电流 | 13A |
| 连接器类型 - 电压输入 | 标准 | ||
机械参数
| 密封型 | No | 外形尺寸(长x宽) | 17 |
| 包装方式 | Tray | 外壳尺寸 | 17 |
| 方向 | A | 端接方式 | Solder |
| 螺纹尺寸 | 15/16-20 UNEF-2A | 外壳颜色 | Black |
| 安装类型 | Through Hole | 插针或插孔 | Pin |
| 连接器类型 | Receptacle, Male Pins | 接触镀层 | Gold Flash |
| 紧固类型 | Threaded | 安装样式 | Panel |
| 引脚数 | 0 | 外壳材料（壳体） | 母端, 母端 |
| 壳体材料 | Thermoplastic | 包装数量 | 14 |
| 面板安装类型 | 带有 | 端接样式 | Printed Circuit Board |
| 触点数 | 16 | 位数 | 16 |
| 外壳尺寸-插件 | All Plastic | 安装孔直径 | 3.81 [.150] |
| 外壳材料及表面处理 | Thermoplastic | 接触镀层厚度 | 30µin (0.76µm) |
| 第一连接器安装类型 | Panel | ||
产品信息
| 类型 | CPC | 连接器性别 | RCP |
| 系列 | Series 1 | 预加载 | Yes |
| 产品子类型 | Connector | 其他规格 | Without |
环境参数
| 工作范围 | 密封 | 工作温度 | -40°C ~ 105°C |
