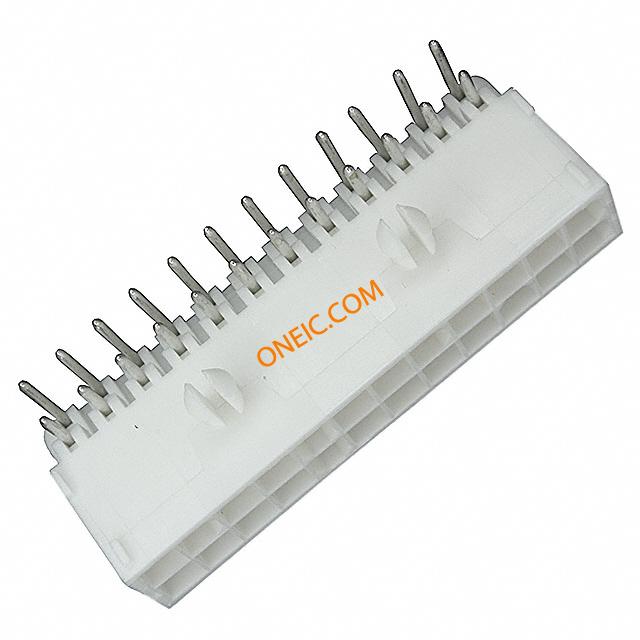

点击放大查看
794108-2
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Power PIN 24 POS 4.14mm Solder RA Thru-Hole 24 Terminal 1 Port .163" Centerline, 600 V, 9.5 A max. CONN HDR 24POS R/A DUAL .163 AU Pin & Socket Connectors 24P R/A HDR ASSY MINI UMNL AU Conn Power PIN 24 POS 4.14mm Solder RA Thru-Hole 24 Terminal 1 Port Product Highlights:HeaderMini-Universal MATE-N-LOK, Mini-Universal MATE-N-LOK 2Number of Circuits = 244.14 x 4.14 mm Centerline, MatrixDouble-Row Contact LayoutSearch Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP |
| 分类 |
商业参数
| 产品类别 | Pin & Socket Connectors | 标准包装数量 | Bulk |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | Contains lead / RoHS non-compliant | ||
机械参数
| 颜色 | White | 间距 | 4.14 mm |
| 包装方式 | Bulk | 排间距 | 0.163" (4.14mm) |
| 端接方式 | Solder | 触头类型 | Male Pin |
| 安装类型 | Through Hole | 连接器类型 | Header, Shrouded |
| 接触镀层 | Gold | 紧固类型 | Locking Ramp |
| 安装样式 | Wire | 排数 | 2 |
| 触点数 | 24 | 位数 | 24 |
| 接触镀层厚度 | 30µin (0.76µm) | ||
产品信息
| 类型 | Power | 连接器性别 | PIN |
| 产品特性 | Board Lock | 产品子类型 | Receptacle Housings |
| 加载位置数 | All | ||
