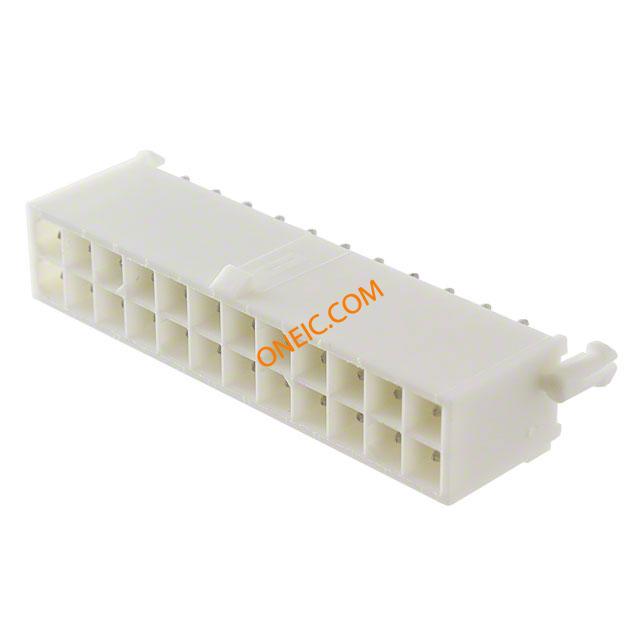

794079-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Power PIN 24 POS 4.14mm Solder ST Thru-Hole 24 Terminal 1 Port .163" Centerline, 600 V, 9.5 A max. CONN HEADER 24POS PCB TIN WHITE Power to the Board 12x2 VERT HDR UL94V0 400 Conn Power PIN 24 POS 4.14mm Solder ST Thru-Hole 24 Terminal 1 Port Product Highlights:HeaderMini-Universal MATE-N-LOK, Mini-Universal MATE-N-LOK 2Number of Circuits = 244.14 x 4.14 mm Centerline, MatrixDouble-Row Contact LayoutSearch Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP |
| 分类 |
商业参数
| 产品类别 | Power to the Board | 标准包装数量 | Bulk |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | Contains lead / RoHS non-compliant | ||
电气参数
| 额定电压 | 600 V | 最大额定电流 | 9.5 A |
机械参数
| 颜色 | White | 间距 | 0.163" (4.14mm) |
| 包装方式 | Bulk | 排间距 | 0.163" (4.14mm) |
| 端接方式 | Solder | 触头类型 | Male Pin |
| 安装类型 | Through Hole | 连接器类型 | Header, Shrouded |
| 接触镀层 | Tin-Lead | 紧固类型 | Locking Ramp |
| 安装样式 | Through Hole | 排数 | 2 |
| 触头材料 | Brass | 壳体材料 | Polyamide (PA) |
| 端接样式 | Solder Pin | 第一触头极性 | Pin (Male) |
| 触点数 | 24 | 位数 | 24 |
| 接触镀层厚度 | 150µin (3.81µm) | ||
产品信息
| 产品特性 | Board Lock | 产品子类型 | Headers |
| 加载位置数 | All | ||
