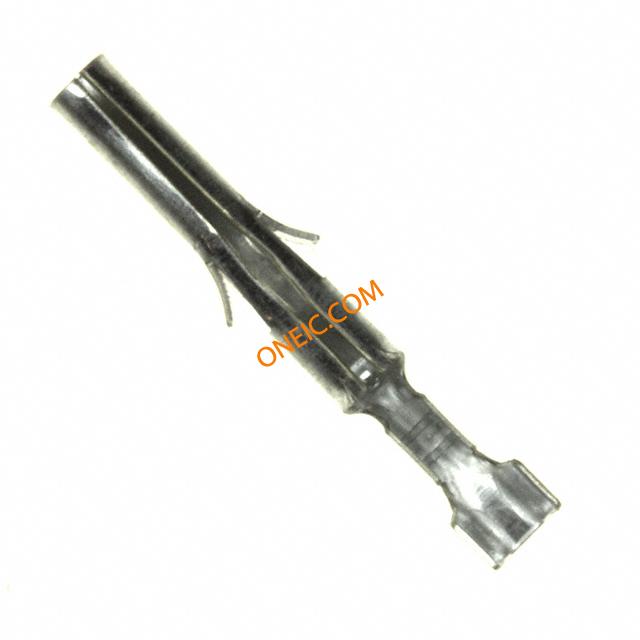

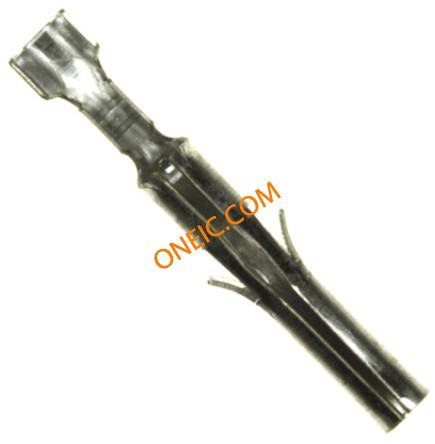

794019-1

点击放大查看

794019-1

制造商
TE Connectivity Ltd.
描述Contact SKT Crimp ST Cable Mount Loose Piece .062" Commercial Pin & Socket Connector CONN SOCKET 24-30AWG TIN CRIMP .062 Pin + Socket Socket Contact24-30AWG Pin & Socket Connectors SCKT CONTACT 30-24 Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:ContactCommercial Pin and SocketTerminate To WireCrimp Termination MethodContact Type = SocketSearch Keywords:soft shell, wire to wire, Power Pin & Socket, Lighting Interconnection, cabled power, pcb connectors, power, discrete wire, crimp, .062Soft-ShellPin&Socket,Contacts(Pre-TinnedBrass),Socket,for30-24AWG 1 Position Wire-to-Wire Crimp Straight Cable Mount Receptacle Connector .062 CP&S SOK PTPBR L/P 30-24
分类
连接器解决方案接触件接触件（通用）
对参数有疑问？问 AI 助手

商业参数

产品类别Pin & Socket Connectors标准包装数量Bulk
工厂包装数量1000

合规参数

RoHSLead free / RoHS CompliantUL等级获得认可
UL档案号E28476CSA档案号LR 7189
标准编号CSA, UL认证机构标志否

电气参数

额定电压250 V供电电压250
最大额定电流7 A最小供电电压250VAC
连接器类型 - 电压输入成形插座

机械参数

深度2.67 mm间距Not Required mm
镀层预镀锡包装方式Bulk
电缆类型分离式导线导线线规24-30 AWG
端接方式Crimp触头类型Power
外壳颜色Not Required安装类型Straight
插针或插孔Socket连接器类型Connector Headers and PCB Receptacles
接触镀层Pre-Tin安装样式Cable
插入件材料黄铜触头材料Brass
壳体材料Not Required总长度16.76 mm
包装数量1000主要材料Contact
端接样式Crimp第一触头极性Socket (Female)
触点数Not Required接触件端接Crimp
绝缘直径0.060In.接触件表面处理 - 配合预镀锡
法兰上方插针尺寸1.57 mm [ .062 in ]线规或范围 - AWG30-24

产品信息

类型Contact连接器性别SKT
系列AMP 0.062制造商全称AMP0.062
产品子类型Contacts其他规格否
应用细节Power适用产品/相关产品AMP0.062Soft-ShellConnectors

环境参数

测试温度标准件 - 非灼热丝工作温度-55 – 105 °C [ -67 – 221 °F ]

文档与媒体

PDF 文档
1444132.pdf
在线文档
794019-1?RQPN=794019-1
