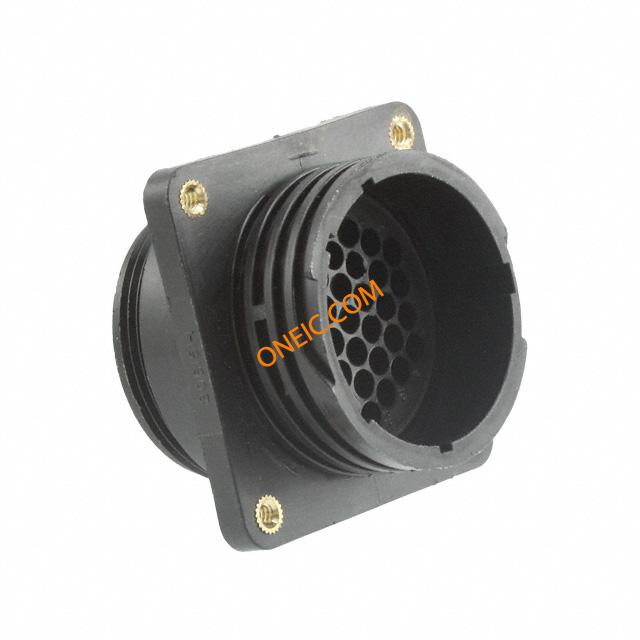

787610-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn CPC PIN 37 POS Crimp ST Panel Mount 37 Terminal 1 Port CPC Connectors CONN RCPT CPC 37POS SIZE 23 Standard Circular Connector CPC RECPT,SIZE 23-37 W/INSERTS Conn CPC PIN 37 POS Crimp ST Panel Mount 37 Terminal 1 Port Product Highlights:ConnectorNumber of Positions = 37ReceptacleFor Use With Pin ContactsNot PreloadedSearch Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC ConnectorHousing;CPCRecept.Assy;37Pos;Sz23;Series1;PanelMnt;StdSex CPC RECPT,SIZE 23-37 W/INSERTS |
| 分类 |
商业参数
| 商标名 | CPC Series 1 | 其他名称 | 7876101 |
| 标准包装数量 | Trays | 工厂包装数量 | 21 |
合规参数
| RoHS | Lead free / RoHS Compliant | 合规性 | No |
| 抗辐射加固 | No | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | UL阻燃等级 | UL 94V-0 |
| 认证机构标志 | 否 | 材料阻燃等级 | UL 94V-0 |
电气参数
| 防溅等级 | 无 | 通道数量 | 37 |
| 连接器类型 - 电压输入 | 标准 | ||
机械参数
| 颜色 | Black | 深度 | 44.45 mm |
| 高度 | 44.45 mm | 密封型 | No |
| 外形尺寸(长x宽) | 23 | 包装方式 | Tray |
| 壳体颜色 | 黑色 | 出线方向 | No |
| 外壳尺寸 | 23 | 方向 | A |
| 外壳样式 | Receptacle | 端接方式 | Crimp |
| 螺纹尺寸 | 1-3/8 - 18 UNEF-2A | 触点形式 | 37Signal |
| 触点尺寸 | 16 | 触头类型 | Crimp |
| 外壳颜色 | Black | 安装类型 | Panel Mount |
| 行程角度 | Straight | 连接器类型 | Receptacle for Male Contacts |
| 紧固类型 | Threaded | 安装样式 | Panel |
| 引脚数 | 0 | 外壳材料（壳体） | 母端, 母端 |
| 连接器样式 | Receptacle | 面板厚度 | 0.125" |
| 壳体材料 | Thermoplastic | 总长度 | 34.29 mm |
| 包装数量 | 21 | 面板安装类型 | Square Flange |
| 主要材料 | CircularPlasticConnector | 端接样式 | Wire |
| 第一触头极性 | Pin | 配接方向 | Keyed |
| 触点数 | 37 | 端接表面处理 | 带有 |
| 绝缘直径 | 2.54 [0.100] | 位数 | 37 |
| 外壳尺寸-插件 | All Plastic | 安装孔直径 | 0.15" |
| 外壳材料及表面处理 | Nylon | 第一连接器安装类型 | Panel |
| 第二连接器安装特性 | Standard | 外壳尺寸-插入件（转换至） | 23-37 |
产品信息
| 备注 | Contacts Not Provided | 类型 | CPC |
| 连接器性别 | RCP | 系列 | Series 1 |
| 产品特性 | ReverseGender | 钥匙类型 | A |
| 预加载 | No | 排列方式 | 23-37 |
| 制造商全称 | Series1 | 产品子类型 | Connector |
| 射频系列/标准 | 787610 | 其他规格 | Without |
| 应用细节 | Commercial | 适用产品/相关产品 | Pin Contacts |
环境参数
| 工作范围 | 不密封 | 防护等级 | IP65 |
| 工作温度 | -55C to 105C | ||
