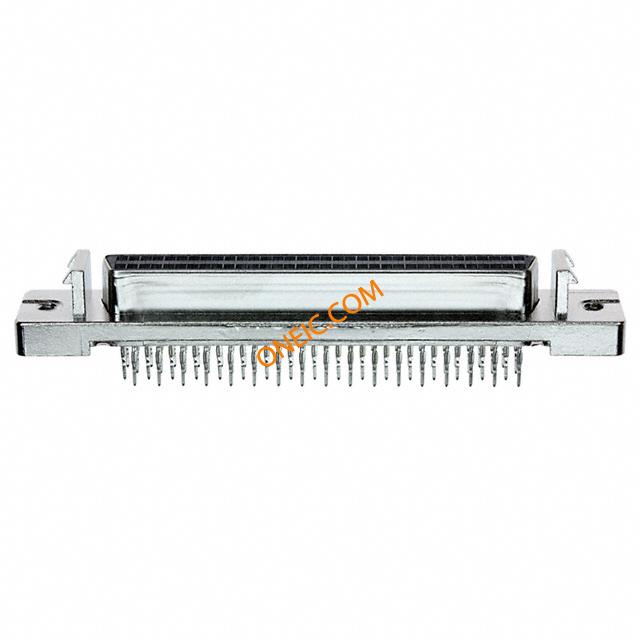

786155-7
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn D-Subminiature SKT 68 POS 2.54mm Solder ST Thru-Hole 68 Terminal 1 Port D-Sub Standard Connectors 68 50SR VRT RCPT PIN .050 Series Board Mount Connectors 68 50SR VRT RCPT,LTCH,ACT PIN Conn D-Subminiature SKT 68 POS 2.54mm Solder ST Thru-Hole 68 Terminal 1 Port Product Highlights:ConnectorConnector Type = Receptacle68 PositionsThrough Hole Contact Termination TypeVertical Mount AngleSearch Keywords:SCSI-2, SCSI-3, EIA RS-232, ISO-11569, HIPPI, High Performance Parallel Interface, IPI-2, IEE 802.3 MII, high density, VME, Versa Module Europe, AMPLIMITE, Subminiature D, box to box, vertical boardmount, right angle posted, straight posted, d-sub, d sub, dsub |
| 分类 |
商业参数
| 产品类别 | D-Sub Standard Connectors | 标准包装数量 | Rail / Tube |
| 工厂包装数量 | 8 | ||
合规参数
| RoHS | RoHS Compliant By Exemption | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS/Not ELV Compliant | 材料阻燃等级 | UL 94V-0 |
电气参数
| 额定电压 | 30V | 开关功能 | Without |
| 最大额定电流 | 1A | ||
机械参数
| 颜色 | Black | 间距 | 1.27 mm [ .05 in ] |
| 材料（通用） | Zinc | 包装方式 | Tube |
| 屏蔽 | 是 | 壳体颜色 | 黑色 |
| 轴径尺寸 | .026 | 屏蔽类型 | Yes |
| 端接方式 | Press-Fit | 触头类型 | Signal |
| 外壳表面处理 | 铜镀镍 | 第二连接器 | With |
| 外壳颜色 | Black | 安装类型 | Vertical |
| 外壳镀层 | Nickel over Copper | 端子尺寸 | .109 |
| 连接器类型 | Receptacle, Female Sockets | 接触镀层 | Gold |
| 法兰特征 | Housing/Shell (2-56); Latchblocks | 安装导轨 | Without |
| 安装样式 | Through Hole | 排数 | 2 |
| 外壳材料（壳体） | Carbon Steel | 电路板厚度 | 1.57 â 2.36 [0.062 â 0.093] |
| 连接器样式 | D-Type | 插入件材料 | 磷青铜 |
| 锁定特性 | Latch Blocks | 触头材料 | Phosphor Bronze |
| 壳体材料 | Thermoplastic | 安装特性 | 安装孔 |
| 包装数量 | 8 | 面板安装类型 | 通孔 - 焊接 |
| 端接样式 | Solder | 触点数 | 68 |
| 位数 | 68 | 外壳尺寸-插件 | Full Metal |
| 安装孔直径 | 不带 | 外壳材料及表面处理 | Steel, Nickel Plated |
| 端子柱长度 | 4.39 [0.173] | 接触镀层厚度 | Flash |
| 后壳材料及镀层 | Nickel over Copper | 外壳尺寸，连接器布局 | 0.050 Pitch x 0.100 Row to Row |
产品信息
| 连接器性别 | Female | 系列 | 0.05 |
| 产品特性 | Shielded | 制造商全称 | AMP |
| 产品子类型 | Connector | ||
环境参数
| 工作温度 | -55°C ~ 105°C | 封装热阻 | 1.57 – 2.36 mm [ .062 – .093 in ] |
