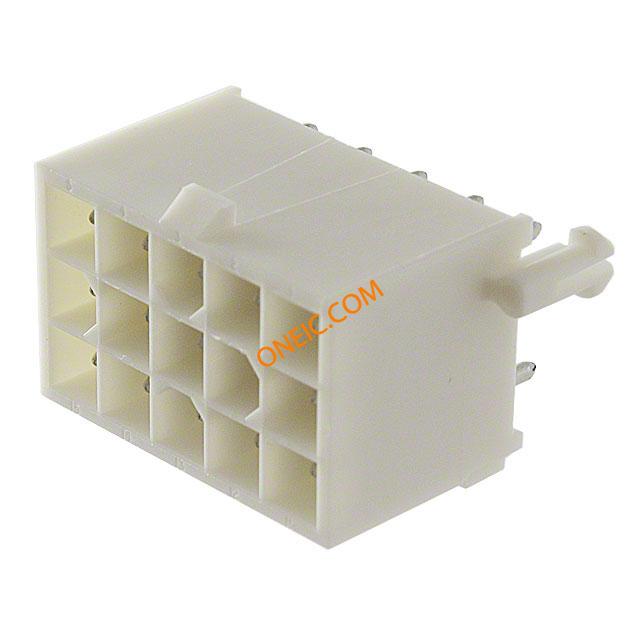

770190-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Power PIN 15 POS 4.14mm Solder ST Thru-Hole 15 Terminal 1 Port .163" Centerline, 600 V, 9.5 A max. CONN HEADER 15POS VERT .163 TIN Pin & Socket Connectors 15 POS MINI UNML HSG 800 Conn Power PIN 15 POS 4.14mm Solder ST Thru-Hole 15 Terminal 1 Port Product Highlights:HeaderMini-Universal MATE-N-LOK, Mini-Universal MATE-N-LOK 2Number of Circuits = 154.14 x 4.14 mm Centerline, MatrixMatrix Contact LayoutSearch Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP 15P MINI-UMNL ASSY V0 SNNI* |
| 分类 |
商业参数
| 产品类别 | Pin & Socket Connectors | 标准包装数量 | Bulk |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | UL等级 | 获得认可 |
| 零件状态 | E28476 | CSA档案号 | LR7189 |
| 标准编号 | CSA, UL | CSA认证 | Certified |
| UL阻燃等级 | UL 94V-0 | 认证机构标志 | 是 |
电气参数
| 额定电压 | 600 V | 供电电压 | 600 |
| 最大额定电流 | 9.5 A | ||
机械参数
| 颜色 | White | 间距 | 0.163" (4.14mm) |
| 宽度 | 13.97 | 长度 | 22.28 |
| 密封型 | Not Sealed | 包装方式 | Bulk |
| 壳体颜色 | 白色 | 排间距 | 0.163" (4.14mm) |
| 端接方式 | Solder | 触头类型 | Male Pin |
| 安装类型 | Through Hole | 连接器类型 | Header, Shrouded |
| 接触镀层 | Tin-Lead | 紧固类型 | Locking Ramp |
| 安装样式 | Through Hole | 引脚数 | 15 |
| 排数 | 3 | 封装形式 | Receptacle |
| 高度（英寸） | 13.49 | 触头材料 | Brass |
| 壳体材料 | Polyamide (PA) | 安装特性 | 板锁 |
| 包装数量 | 200 | 面板安装类型 | 通孔 - 焊接 |
| 端接样式 | Solder Lug | 第一触头极性 | Pin (Male) |
| 触点数 | 15 | 绝缘直径 | 3.2 |
| 位数 | 15 | 兼容外壳尺寸（如TM-700等） | 插头护套 |
| 安装孔直径 | 带有 | 接触件表面处理 - 配合 | 锡铅 |
| 典型触点布局 | 矩阵 | 端子柱长度 | 5.47 – 6.22 mm [ .215 – .245 in ] |
| 接触镀层厚度 | 150µin (3.81µm) | 静电放电屏蔽 | 不带 |
| 后壳材料及镀层 | 尼龙 | ||
产品信息
| 产品特性 | Board Lock | 产品子类型 | Headers |
| 应用细节 | Power | 装配配置 | Without |
| 加载位置数 | All | ||
环境参数
| 测试温度 | 标准件 - 非灼热丝 | 工作温度 | -55 – 105 °C [ -67 – 221 °F ] |
