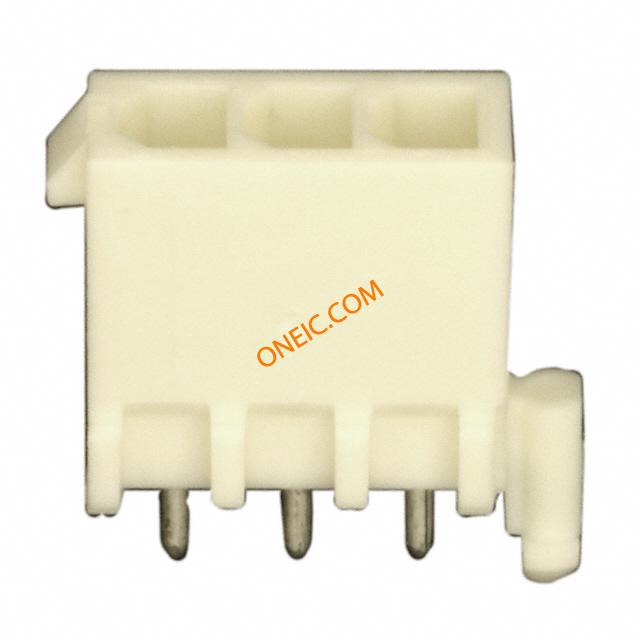

770170-2
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Power PIN 3 POS 4.14mm Solder ST Thru-Hole 3 Terminal 1 Port .163" Centerline, 600 V, 9.5 A max. CONN HEADER 3POS VERT .163 AU Pin & Socket Connectors CONN HEADER 3POS VERT .163 AU Conn Power PIN 3 POS 4.14mm Solder ST Thru-Hole 3 Terminal 1 Port Product Highlights:HeaderMini-Universal MATE-N-LOK, Mini-Universal MATE-N-LOK 2Number of Circuits = 34.14 mm Centerline, MatrixIn-Line Contact LayoutSearch Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP MINI-UNIVM-N-LHDRS,03PMINI-UMNLASSYVOSNAU 03P MINI-UMNL ASSY VO SNAU |
| 分类 |
商业参数
| 产品类别 | Pin & Socket Connectors | 标准包装数量 | Bulk |
| 工厂包装数量 | 200 | ||
合规参数
| RoHS | Contains lead / RoHS non-compliant | UL等级 | 获得认可 |
| 零件状态 | E28476 | CSA档案号 | LR7189 |
| 标准编号 | CSA, UL | CSA认证 | Certified |
| UL阻燃等级 | UL 94V-0 | 认证机构标志 | 是 |
电气参数
| 额定电压 | 600 V | 供电电压 | 600 |
| 最大额定电流 | 9.5 A | 最小供电电压 | 600VAC |
机械参数
| 颜色 | White | 深度 | 6.35 mm |
| 间距 | 4.14 mm | 宽度 | 13.49 |
| 高度 | 14.25 mm | 长度 | 13.97 |
| 密封型 | Not Sealed | 直径 | Not Required mm |
| 包装方式 | Bulk | 壳体颜色 | 白色 |
| 端接方式 | Solder | 触头类型 | Male Pin |
| 外壳颜色 | White | 安装类型 | Through Hole |
| 连接器类型 | Header, Shrouded | 接触镀层 | Gold |
| 紧固类型 | Locking Ramp | 安装样式 | Through Hole |
| 引脚数 | 3 | 排数 | 1 |
| 封装形式 | Receptacle | 高度（英寸） | 5.59 |
| 触头材料 | Brass | 壳体材料 | Polyamide (PA) |
| 总长度 | 17.83 mm | 安装特性 | 板锁 |
| 包装数量 | 200 | 面板安装类型 | 通孔 - 焊接 |
| 主要材料 | InterconnectSystem | 端接样式 | Solder |
| 第一触头极性 | Pin (Male) | 触点数 | 3 |
| 绝缘直径 | 3.2 mm [ .126 in ] | 位数 | 3 |
| 兼容外壳尺寸（如TM-700等） | 插头护套 | 安装孔直径 | 带有 |
| 接触件表面处理 - 配合 | 锡铅 | 典型触点布局 | 直插式 |
| 端子柱长度 | 2.6 mm [ .06 in ] | 接触镀层厚度 | 30µin (0.76µm) |
| 静电放电屏蔽 | 不带 | ||
产品信息
| 类型 | Power | 连接器性别 | PIN |
| 系列 | Mini Universal Mate-N-Lok | 产品特性 | Board Lock |
| 制造商全称 | MATE-N-LOK | 产品子类型 | Headers |
| 端口数 | 1 Port | 应用细节 | Power |
| 装配配置 | Without | 加载位置数 | All |
环境参数
| 测试温度 | 标准件 - 非灼热丝 | 工作温度 | -20C to 105C |
文档与媒体
相关型号
1-172337-9
te connectivity / amp
Conn Housing PL 3 POS 4.2mm Crimp ST Loose Piece .163" Centerline, 600 V, 9.5 A max. CONN PLUG 3POS MINI-UMNL BLACK
172166-1
te connectivity / amp
Conn Housing PL 3 POS 4.2mm Crimp ST Cable Mount Loose Piece .163" Centerline, 600 V, 9.5 A max. CONN PLUG 3POS MINI UNIV-MATE 3 way cable plug Min Mate-N-Lok Pin & Socket Connectors 3P PLUG MINI UNIV M-N-L Conn Housing PL 3 POS 4.2mm Crimp ST Cable Mount Loose Piece Product Highlights:HousingMini-Universal MATE-N-LOKNumber of Circuits = 34.14 mm Centerline, MatrixIn-Line Contact LayoutSearch Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP CONNECTOR HOUSING, PLUG, 3 WAY, NYLON Connector,SoftShell;3;600VAC;Plug;In-Line;Nylon;Plug;Natural Plug; wire-board; male/female; w/o terminals; 4.14mm; PIN:3; 600V Pin housing 4.14 mm Poles 1 x 3 Single row / Free hanging/cable mount / straight / accepts male or female contacts MATE-N-LOK Mini Universal, 172166-1, TE Connectivity TE Connectivity Mini-Universal Mate-N-Lok 系列 1 行 4.2mm 节距 3 路 直 公 压接连接器外壳 3 CIR UNIV M-N-L PLUG
172337-1
te connectivity / amp
Conn Housing PL 3 POS 4.2mm Crimp ST Cable Mount Loose Piece .163" Centerline, 600 V, 9.5 A max. CONN PLUG 3POS MINI-U MNL NAT Housing,plug,Mate-n-lok,3 Way,Natural Pin & Socket Connectors UNIV M-N-L HSG Conn Housing PL 3 POS 4.2mm Crimp ST Cable Mount Loose Piece Product Highlights:HousingMini-Universal MATE-N-LOKNumber of Circuits = 34.14 mm Centerline, MatrixIn-Line Contact LayoutSearch Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP PLUG HOUSING, 3WAY Housing,Natural,Plug,FreeHanging/PanelMount,3Pos Pin housing Pitch4.14 mm Poles 1 x 3 Single row / Free hanging/cable mount / straight MATE-N-LOK Mini Universal, 172337-1, TE Connectivity TE Connectivity Mini-Universal Mate-N-Lok 系列 4.2mm 节距 3 路 直 公 压接连接器外壳 MINI UMNL PLUG HOUSING 3P
1-172166-9
te connectivity / amp
Conn Housing PL 3 POS 4.2mm Crimp ST Loose Piece .163" Centerline, 600 V, 9.5 A max. CONN PLUG 3POS MINI-U MNL BLACK Pin & Socket Connectors MINI PLUG 3P BLK MINI UNIVERSAL M-N-L PLUG 3P MINI UNIVERSAL M-N-L PLUG 3P Search Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP
1-172166-6
te connectivity / amp
Conn Housing PL 3 POS 4.2mm Crimp ST Loose Piece .163" Centerline, 600 V, 9.5 A max. CONN PLUG 3POS MINI-U MNL BLUE
1-172166-2
te connectivity / amp
Conn Housing PL 3 POS 4.2mm Crimp ST Loose Piece .163" Centerline, 600 V, 9.5 A max. CONN PLUG 3POS MINI-U MNL RED Pin & Socket Connectors MINI 3P PLUG RED Conn Housing PL 3 POS 4.2mm Crimp ST Loose Piece Search Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP
794186-1
te connectivity / amp

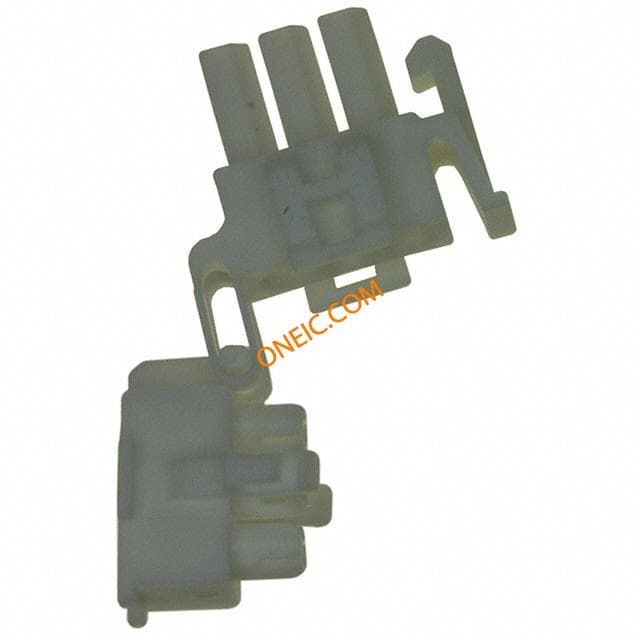

Conn Housing PL 3 POS 4.14mm Crimp ST Individual .163" Centerline, 600 V, 9.5 A max. CONN PLUG 3POS MINI UNIV-MATE 2 Housing,plug,mini Mate-n-lok,1 row,3 Way Pin & Socket Connectors 3P MINI PLUG HSG Conn Housing PL 3 POS 4.14mm Crimp ST Individual Product Highlights:HousingMini-Universal MATE-N-LOK 2Number of Circuits = 34.14 mm Centerline, MatrixIn-Line Contact LayoutSearch Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP PLUG & SOCKET HOUSING, PLUG, NYLON HOUSING,PLUG,MINI-UNIVERSALMATE-N-LOK2,3POSITION,FREEHANGING,IN-LINE Crimp housing Pitch4.14 mm Poles 1 x 3 MATE-N-LOK II Mini Universal, 794186-1, TE Connectivity TE Connectivity Mini-Universal MATE-N-LOK II 系列 4.14mm 节距 3 路 直 公 压接连接器外壳 03P MINI UMNL2 PLUG HSG UL94V0
