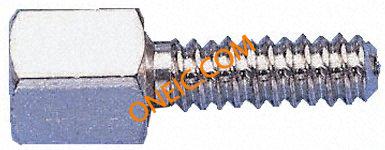

749087-1

制造商	TE Connectivity Ltd.
描述	Connector Accessories Female Screw Lock Kit Stainless Steel Individual D-Sub Tools & Hardware SCREWLOCK KIT female Hardware (AMPLIMITE) AMPLIMITE .050 screwlock kit 4-40,9.02mm Connector Accessories Female Screw Lock Kit Stainless Steel Individual Product Highlights:Female Screw LocksUnfinished Body FinishThread Size = 4-40Thread Length = 9.02 mmScrewlock Style = Screwlock OnlySearch Keywords:SCSI-2, SCSI-3, EIA RS-232, ISO-11569, HIPPI, High Performance Parallel Interface, IPI-2, IEE 802.3 MII, high density, VME, Versa Module Europe, AMPLIMITE, Subminiature D, box to box, vertical boardmount, right angle posted, straight posted, d-sub, d sub, dsub SCREWLOCK, KIT, 4-40, 14.27MM Screwlock;Amplimite;Female;4-40UNC;StainlessSteel;Steel;Steel AMPLIMITE 0.050 Series Female Screwlock Kit TE Connectivity 连接器螺钉 50SR SCREWLOCK KIT,FEMALE
分类	测试、检验与原型制作解决方案测试夹测试夹（L3）

对参数有疑问？问 AI 助手

商业参数

产品	Hardware	产品类别	D-Sub Tools & Hardware
标准包装数量	Bulk	工厂包装数量	1

合规参数

RoHS	RoHS Compliant	标准	RoHSCompliant
海关税号	85369010	无铅定义	Not relevant for lead free process
RoHS/ELV合规状态	RoHS compliant, ELV compliant	认证机构标志	No

机械参数

深度	4.75 mm	表面处理	Unfinished
重量	0.02	包装方式	Bulk
螺纹尺寸	4-40 UNC	基体材料	Stainless Steel
螺纹长度	9.02 [0.355]	封装形式	Set-2
螺丝材料	StainlessSteel	总长度	14.27 mm
包装数量	Individual Kit	螺纹/螺钉/孔尺寸	:-
头部以下螺纹长度	:14.27mm

产品信息

类型	Screw Lock Kit	样式	Screwlock Only
连接器性别	Female	制造商全称	AMP
产品子类型	Female Screw Locks	射频系列/标准	749087
适用产品/相关产品	.050SeriesConn
