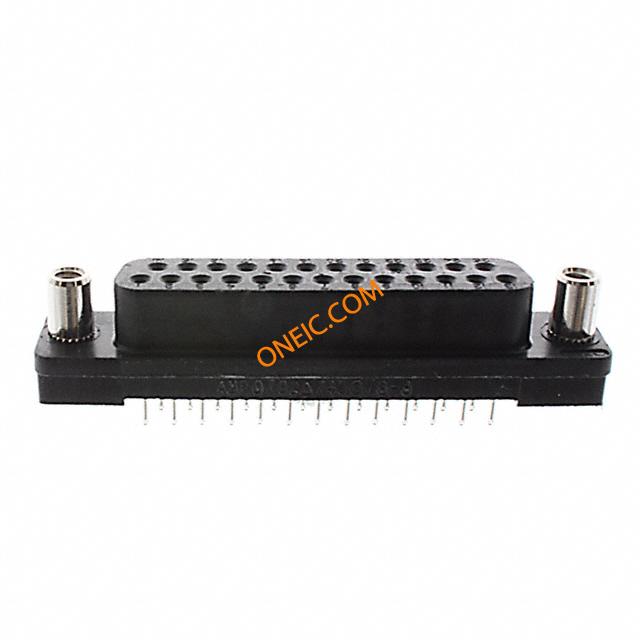

745078-3
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn D-Subminiature SKT 25 POS 2.77mm Solder ST Thru-Hole 25 Terminal 1 Port D-Sub Standard Connectors HD-20 25P SOCKET 630 Standard Board Mount Connectors CONN D-SUB RCPT STR 25POS PCB AU Conn D-Subminiature SKT 25 POS 2.77mm Solder ST Thru-Hole 25 Terminal 1 Port Product Highlights:Number of Positions = 25ReceptaclePCB Mount Angle = VerticalProduct Series = HD 20With Mating Connector LockSearch Keywords:Subminiature D, AMPLIMITE, MIL-C-24308, DIN 41652, Mark II, Mark III, DIN 41494, box to box, military/aerospace, 13C3, 3C3, HD-22, ACTION PIN, d-sub, d sub, dsub 25 RCPT SP/AP SCRLK |
| 分类 |
商业参数
| 产品类别 | D-Sub Standard Connectors | 标准包装数量 | Rail / Tube |
| 工厂包装数量 | 10 | ||
合规参数
| RoHS | No | 无铅定义 | Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c |
| 认可国家 | UL E28476 | RoHS/ELV合规状态 | ELV compliant, 5 of 6 Compliant |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 接地方式 | Without | 额定电压 | 125V |
| 连接器阻抗 | 母端螺钉锁，固定 | 最大额定电流 | 6A |
机械参数
| 颜色 | Black | 间距 | 2.77 mm |
| 密封型 | No | 外形尺寸(长x宽) | 3 |
| 包装方式 | Tube | 壳体颜色 | 黑色 |
| 外壳尺寸 | 3 | 端接方式 | Solder |
| 触头类型 | Signal | 柱间距 | .109 |
| 第二连接器 | With | 触点形状 | Round |
| 安装类型 | Through Hole | 连接器类型 | Receptacle, Female Sockets |
| 接触镀层 | Gold | 法兰特征 | Mating Side; Female Screwlock (4-40) |
| 接地类型 | Without | 安装样式 | Through Hole |
| 排数 | 2 | 电路板厚度 | 0.062 â 0.093 [1.57 â 2.36] |
| 连接器样式 | D-Sub | 插入件材料 | 磷青铜 |
| 锁定特性 | Female Screwlocks, Fixed | 外形（宽 x 高） | Standard |
| 触头材料 | Phosphor Bronze | 壳体材料 | Thermoplastic |
| 安装特性 | 安装孔 | 包装数量 | 10 |
| 面板安装类型 | Without | 尺寸/外形 | 0.66 [.026] |
| 接地凹痕 | Without | 端接样式 | Through Hole |
| 连接器颜色 | None | 外径 | .66 mm [ .026 in ] |
| 触点数 | 25 | 位数 | 25 |
| 外壳尺寸-插件 | All Plastic | 端子螺钉表面处理 | 镀镍铜薄层 |
| 安装孔直径 | 3.05 [.120] | 端子柱长度 | 3.18 [0.125] |
| 接触镀层厚度 | Flash | 螺钉材料 - 镀层 | Brass |
| 外壳与棱镜材料 | 是 | 外壳尺寸，连接器布局 | 3 (DB, B) |
产品信息
| 备注 | All receptacles are preloaded with size 20 DF posted socket contacts | 类型 | D-Subminiature |
| 连接器性别 | SKT | 系列 | HD-20 |
| 可密封 | 否 | 制造商全称 | AMP |
| 预装 | 是 | 产品子类型 | 连接器 |
环境参数
| 工作温度 | -55°C ~ 105°C | 封装热阻 | 1.57 – 2.36 mm [ .062 – .093 in ] |
