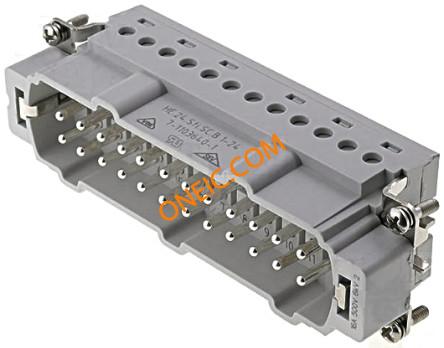

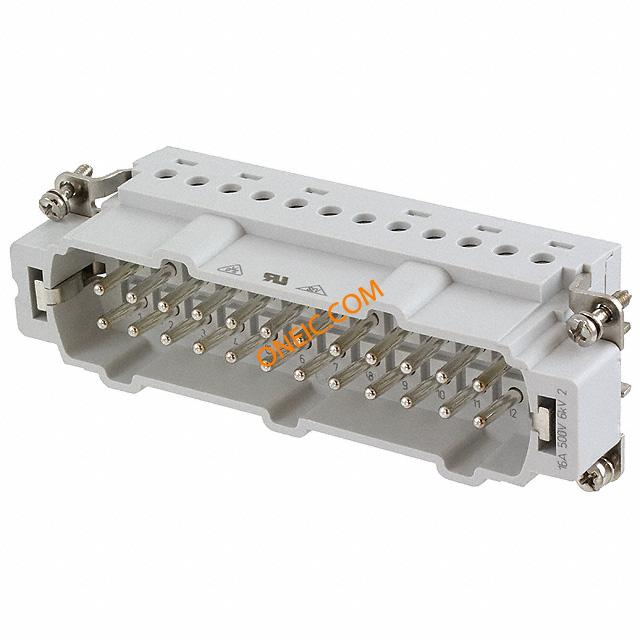

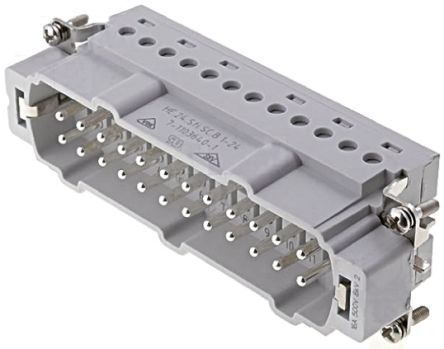

7-1103640-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Rectangular M 24Signal/1Ground POS Crimp ST Cable Mount Loose Piece HTS Connectors and Accessories CONN MALE INSERT HE.24 SERIES HD Connect Insert HE24 male clamp Heavy Duty Power Connectors HE.24.STI.SC.B1-24 Conn Rectangular M 24Signal/1Ground POS Crimp ST Cable Mount Loose Piece Search Keywords:cabled power, DIN VDE 0110, DIN VDE 0627, DIN IEC707/VDE 0304, self extinguishing, non-flammable, European Metal Shell connector, rectangular industrial, input/output, box to box, Heavy Duty Connectors, Motorman, Motorman Hybrid, ELFA®, frequency converter, SurTec 650 INSERT, HE.24, SPRING-CLAMP, PIN Connector: HTS; male; HTS HE; PIN:24; 24+PE; size 8; 16A; 400V TE Connectivity HE 系列 24针 24P+E极 插头 电源连接器外壳 HE.24.STI.SC.B1-24 |
| 分类 |
商业参数
| 交货时间 | 73 Days | 子类别 | Connector Rectangular |
| 产品类别 | Heavy Duty Power Connectors | 标准包装数量 | Bulk |
合规参数
| RoHS | Lead free / RoHS Compliant | 标准 | CSA, DIN VDE 0110, DIN VDE 0627, SEV, UL |
| 海关税号 | 85366910 | 材料阻燃等级 | UL94 V-0 |
电气参数
| 额定电压 | 400V | 最大额定电流 | 16A |
| 最小供电电压 | 400V | ||
机械参数
| 尺寸 | 8 | 颜色 | Gray |
| 深度 | 34 mm | 高度 | 33 mm |
| 重量 | 0.05 | 材料（通用） | thermoplastic |
| 钻孔直径 | 104mm | 包装方式 | Loose Piece |
| 端接方式 | Crimp | 安装类型 | Cable Mount |
| 连接器类型 | Insert | 接触镀层 | Silver |
| 安装样式 | Cable | 排数 | :2 |
| 封装形式 | size 8 | 插入件材料 | :Power |
| 触头材料 | Hard Silver | 壳体材料 | Polycarbonate (PC), Glass Filled |
| 总长度 | 110 mm | 包装数量 | 5 |
| 尺寸/外形 | see | 端接样式 | Tension Clamp |
| 第一触头极性 | :Pin | 外径 | 110mm |
| 触点数 | 24Signal/1Ground | 接触件端接 | :Crimp |
| 横截面形状 | 0.5...2.5mm2 | 位数 | 24+Ground |
| 外壳尺寸-插件 | :8 | 小外径 | 27mm |
| 触点材料 - 镀层 | silver plated | 第一连接器安装特征 | 24+PE |
产品信息
| SPG | 5 | 类型 | Rectangular |
| 连接器性别 | PL | 系列 | Han E |
| 极数格式 | 24P+E | 产品子类型 | Inserts |
| 附件类型 | Contact | 适配器系列 | HTS HE |
| 单元数量 | 1 | 其他规格 | 33mm |
| 适用产品/相关产品 | Machined Crimp Contact | ||
环境参数
| 工作温度 | -40°C ~ 125°C | ||
