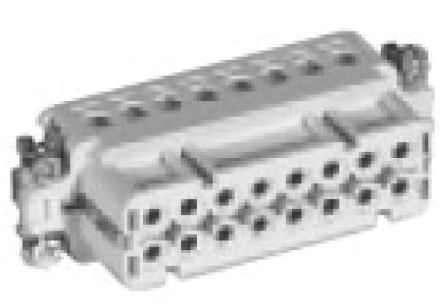

点击放大查看
7-1103417-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Heavy-Duty Rectangular F 16Signal/1Ground POS ST Panel Mount Loose Piece CONN INSERT SKT SZ5 16POS CLAMP HTS 17 2 Male Straight Heavy Duty Power Connector, Panel Mount 16A,250V Heavy Duty Power Connectors HA.16.BU.SC Conn Heavy-Duty Rectangular F 16Signal/1Ground POS ST Panel Mount Loose Piece Product Highlights:HA.16 SeriesInsertProduct Size = 5Contact Type = Spring-Clamp TerminalInsert Style = SocketSearch Keywords:cabled power, DIN VDE 0110, DIN VDE 0627, DIN IEC707/VDE 0304, self extinguishing, non-flammable, European Metal Shell connector, rectangular industrial, input/output, box to box, Heavy Duty Connectors, Motorman, Motorman Hybrid, ELFA®, frequency converter, SurTec 650 TE Connectivity HD 系列 2行 17针 16P+E极 插头 电源连接器 , 面板安装 |
| 分类 |
商业参数
| 交货时间 | 56 Days | 子类别 | Connector Rectangular |
| 产品类别 | Heavy Duty Power Connectors | 标准包装数量 | Bulk |
| 工厂包装数量 | 10 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 材料阻燃等级 | UL94 V-0 |
电气参数
| 额定电压 | 250V | 最大额定电流 | 16A |
机械参数
| 尺寸 | 5 | 颜色 | Beige |
| 包装方式 | Loose Piece | 方向 | 直 |
| 安装类型 | Panel Mount | 连接器类型 | Insert |
| 接触镀层 | Silver | 排数 | 2 |
| 壳体材料 | Polybutylene Terephthalate (PBT) | 端接样式 | Tension Clamp |
| 触点数 | 16Signal/1Ground | 位数 | 16+Ground |
产品信息
| 类型 | Heavy-Duty Rectangular | 连接器性别 | PL |
| 系列 | HTS | 极性 | 16P+E |
环境参数
| 工作温度 | -40°C ~ 125°C | ||
