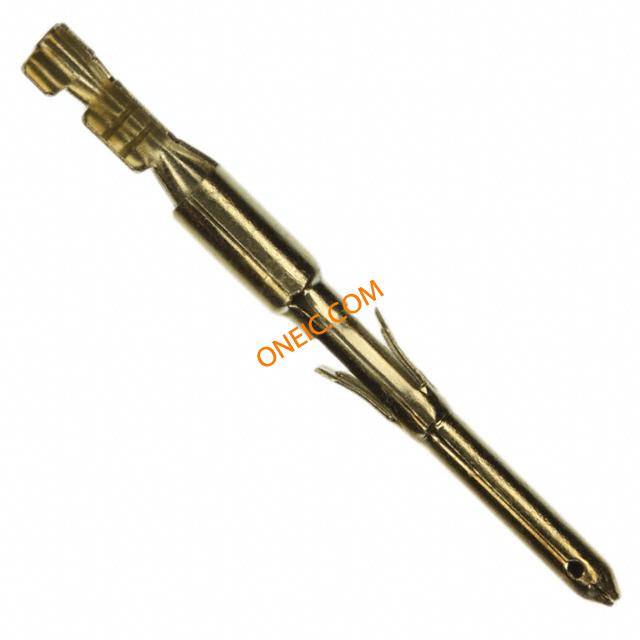

66728-5
| 制造商 | |
| 描述 | Contact PIN Crimp ST Cable Mount Loose Piece Circular DIN Connectors CIRC DIN PIN CONTACT Shielded Circular DIN Connectors CONTACT PIN CRIMP 22-28AWG TIN Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:ContactPackaging Method = Loose PieceContact Gender = PinWire Range = 0.08-0.40² [28-22] mm [AWG]Search Keywords:input/output, DIN 41524, DIN 45322, circular industrial, box to box, CIRCULAR CONTACT, PIN, 28-22AWG, CRIMP CIRC DIN PIN CONTACT,LP |
| 分类 |
对参数有疑问？问 AI 助手
商业参数
| 产品类别 | Circular DIN Connectors | 标准包装数量 | Bulk |
| 工厂包装数量 | 5000 | ||
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85366910 |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
机械参数
| 重量 | 0.002 | 包装方式 | Bulk |
| 导线线规 | 22-28 AWG | 端接方式 | Crimp |
| 触头类型 | Power | 插针或插孔 | Pin |
| 连接器类型 | Connector Circular | 接触镀层 | Tin |
| 触头材料 | Copper Alloy | 包装数量 | Loose Piece |
| 第一触头极性 | :Pin | 接触件端接 | Crimp |
| 接触镀层厚度 | 50µin (1.27µm) | 线规或范围 - AWG | :28AWG |
| 线规或范围 - mm² | 0.08-0.40² [28-22] | ||
产品信息
| 连接器性别 | PIN | 系列 | :- |
| 产品子类型 | Pin Contact | 适用产品/相关产品 | :Shielded Circular DIN Connectors |
