点击放大查看

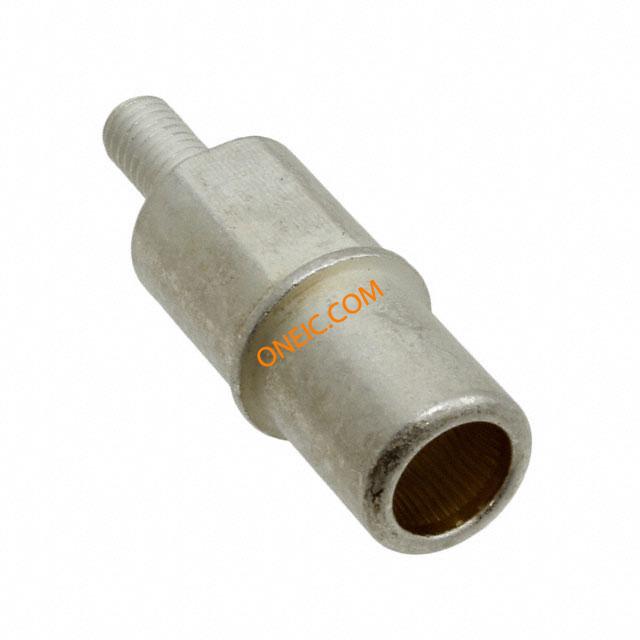

6648430-1
| 制造商 | |
| 描述 | Contact SKT Crimp ST Cable Mount Heavy Duty Power Connectors CONTACT,SKT, SIZE #0 High Current ELCON Drawer Connectors CONN SOCKET CONTACT SIZE #0 CONTACT,SKT,SIZE #0 |
| 分类 |
商业参数
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | RoHS Compliant | ||
电气参数
| 最大额定电流 | 200A | ||
机械参数
| 包装方式 | Bulk | 绝缘类型 | Without |
| 触点形状 | 直式 | 安装类型 | 螺纹安装 |
| 插针或插孔 | Socket | 释放力 | 不带 |
| 端子尺寸 | 0 | 接触镀层 | Gold |
| 壳体镀层 | Nickel | 插入件材料 | 铜 |
| 触头材料 | 金 | 包装数量 | 100 |
| 端接样式 | 插座 | 接触件端接 | Screw Mount |
| 螺纹/无螺纹 | M6 Probe-Proof Internal Thread | 接触件表面处理 - 配合 | 银 |
| 接触镀层厚度 | 200µin (5.08µm) | 护套（绝缘）厚度 | 1 µm [ 40 µin ] |
产品信息
| 备注 | 只能与防探针插针端子搭配使用 | 类型 | Power |
| 产品特性 | Standard Not Hot Pluggable | 产品子类型 | 端子 |
| 应用细节 | Power | ||
环境参数
| 测试温度 | 标准件 - 非灼热丝 | 工作温度 | -55 – 105 °C [ -67 – 221 °F ] |
