点击放大查看

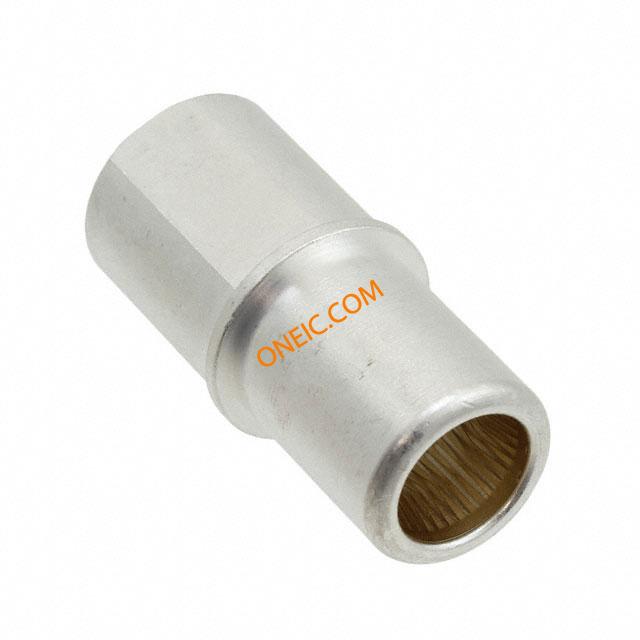

6648416-1
| 制造商 | |
| 描述 | Conn Connector Power SKT POS ST CONN CONTACT SCKT SIZE #0 Heavy Duty Power Connectors CONTACT,SKT, SIZE #0 CONTACT,SKT,SIZE #0 |
| 分类 |
商业参数
| 标准包装规格 | 100 | 标准包装数量 | Bulk |
合规参数
| RoHS | Lead free / RoHS Compliant | ||
电气参数
| 最大额定电流 | 200 | ||
机械参数
| 包装方式 | Bulk | 绝缘类型 | Without |
| 触点形状 | 直式 | 安装类型 | 螺纹安装 |
| 插针或插孔 | Socket | 释放力 | 不带 |
| 端子尺寸 | 0 | 连接器类型 | Connector Power |
| 接触镀层 | 金 | 壳体镀层 | Nickel |
| 插入件材料 | 铜合金 | 触头材料 | 银 |
| 端接样式 | 插座 | 接触件端接 | Screw Mount |
| 螺纹/无螺纹 | 1/4 Internal Thread | 接触件表面处理 - 配合 | 银 |
| 法兰上方插针尺寸 | 9.06 mm [ .357 in ] | 接触镀层厚度 | 5 µm [ 200 µin ] |
| 护套（绝缘）厚度 | 1 µm [ 40 µin ] | ||
产品信息
| 类型 | Power | 连接器性别 | SKT |
| 产品特性 | Standard Not Hot Pluggable | 产品子类型 | 端子 |
| 应用细节 | Power | ||
环境参数
| 测试温度 | 标准件 - 非灼热丝 | 工作温度 | -55 – 105 °C [ -67 – 221 °F ] |
