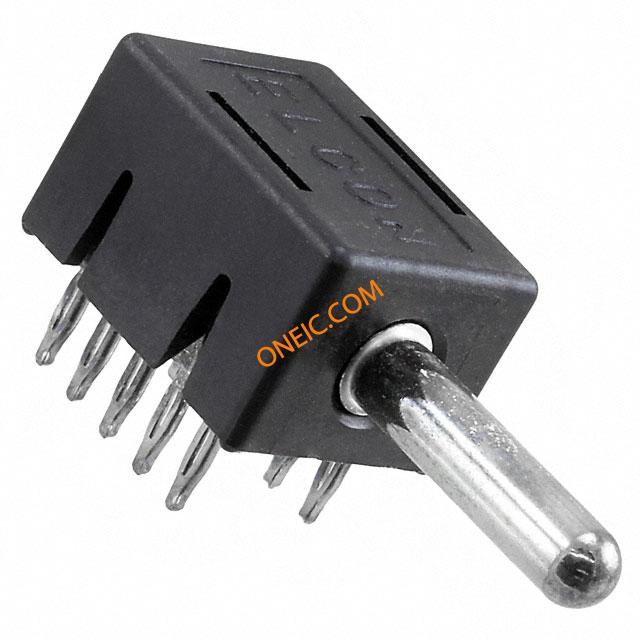

6643442-1
| 制造商 | |
| 描述 | Conn Power PIN 1 POS Press Fit RA Thru-Hole 1 Terminal 1 Port ICCON Single-Pole Power Connectors ICCON,PIN,ASSY Power to the Board ICCON PIN ASSY CMPLT NO-LK 14.48MM ICCON Single-Pole Power Connectors Product Highlights:ConnectorPinPin Length = 14.48 mmWithout Locking FeatureFootprint = 7.62 x 2.54 mmSearch Keywords:ICCON Single Pole Power Connectors DIP Footprint high current quick connect/disconnect CROWN Band |
| 分类 |
商业参数
| 标准包装规格 | 208 | 标准包装数量 | Bulk |
合规参数
| RoHS | Lead free / RoHS Compliant | UL等级 | 获得认可 |
| 零件状态 | UL 1977 | 无铅定义 | Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c |
| 标准编号 | UL | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| UL阻燃等级 | UL 94V-0 | 材料阻燃等级 | UL 94V-0 |
电气参数
| 额定电压 | 250V | 供电电压 | 250 |
| 最大额定电流 | 35A | 连接器类型 - 电压输入 | 自动车床 |
机械参数
| 颜色 | Black | 间距 | 2.54 mm [ .1 in ] |
| 宽度 | 12.29 mm [ .484 in ] | 高度 | 10.16 mm [ .4 in ] |
| 长度 | 31.5 mm [ 1.24 in ] | 包装方式 | Bulk |
| 壳体颜色 | 黑色 | 端接方式 | Press Fit |
| 引脚长度（针脚） | 14.48 [0.570] | 外壳颜色 | No |
| 安装类型 | Through Hole | 连接器类型 | Plug, Male Pins |
| 接触镀层 | Silver | 安装样式 | Press-Fit |
| 壳体镀层 | Gold over Nickel | 连接器样式 | Power |
| 插入件材料 | 黄铜合金 | 锁定特性 | Without |
| 磁芯材质 | Beryllium Copper | 触头材料 | Brass |
| 壳体材料 | Polyester GF 30% | 安装特性 | 作用/符合标准的尾 |
| 包装数量 | 208 | 面板安装类型 | 通孔 - 免焊连接 |
| 外形尺寸 长x宽x高 | 7.62 x 2.54 [.300 x .100] | 端接样式 | 插针 |
| 位数 | 1 | 外壳尺寸-插件 | 插头 |
| 兼容外壳尺寸（如TM-700等） | 母连接器 | 安装孔直径 | 不带 |
| 接触件表面处理 - 配合 | 银 | 典型触点布局 | 1 Power |
| 端子柱长度 | 4.57 mm [ .18 in ] | 接触镀层厚度 | 200µin (5.08µm) |
产品信息
| 类型 | Power | 连接器性别 | PIN |
| 产品子类型 | Connector | 应用细节 | Power |
| 加载位置数 | All | ||
环境参数
| 工作温度 | -40°C ~ 105°C | 封装热阻 | 1.57 mm [ .062 in ] |
文档与媒体
相关型号
