点击放大查看
6643281-1
| 制造商 | |
| 描述 | Conn Power PIN 1 POS Solder RA Thru-Hole 1 Terminal 1 Port ICCON Single-Pole Power Connectors CONN PIN ICCON R/A PCB Power to the Board STD DIP R/A PIN SLDR NO-LK 11.93MM Conn Power PIN 1 POS Solder RA Thru-Hole 1 Terminal 1 Port Product Highlights:ConnectorPinPin Length = 11.93 mmWithout Locking FeatureFootprint = 7.62 x 2.54 mmSearch Keywords:ICCON Single Pole Power Connectors DIP Footprint high current quick connect/disconnect CROWN Band CONNECTOR, POWER, PIN, R/A, 1WAY ICCON,PIN,ASSY |
| 分类 |
商业参数
| 其他名称 | A36259 | 产品类别 | Power to the Board |
| 标准包装数量 | Bulk | 工厂包装数量 | 64 |
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85366990 |
| 无铅定义 | Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 额定电压 | 250V | 最大额定电流 | 35A |
机械参数
| 颜色 | Black | 间距 | 2.54 mm |
| 重量 | 0.005 | 包装方式 | Bulk |
| 端接方式 | Solder | 引脚长度（针脚） | 11.93 [0.470] |
| 外壳颜色 | No | 安装类型 | Through Hole |
| 连接器类型 | Plug, Male Pins | 接触镀层 | Silver |
| 安装样式 | Through-Hole | 壳体镀层 | Gold over Nickel |
| 连接器样式 | Power | 锁定特性 | Without |
| 磁芯材质 | Beryllium Copper | 触头材料 | Brass |
| 壳体材料 | Polyester GF 30% | 外形尺寸 长x宽x高 | 7.62 x 2.54 [.300 x .100] |
| 端接样式 | Solder | 第一触头极性 | Pin (Male) |
| 触点数 | 1 | 接触件端接 | :Through Hole Right Angle |
| 位数 | 1 | 典型触点布局 | 1 Power |
| 接触镀层厚度 | 200µin (5.08µm) | 第一连接器安装类型 | :PCB |
产品信息
| 类型 | Power | 连接器性别 | PIN |
| 系列 | ICCON | 产品子类型 | Connector |
| 加载位置数 | All | ||
环境参数
| 工作温度 | -40°C ~ 105°C | ||
文档与媒体
相关型号

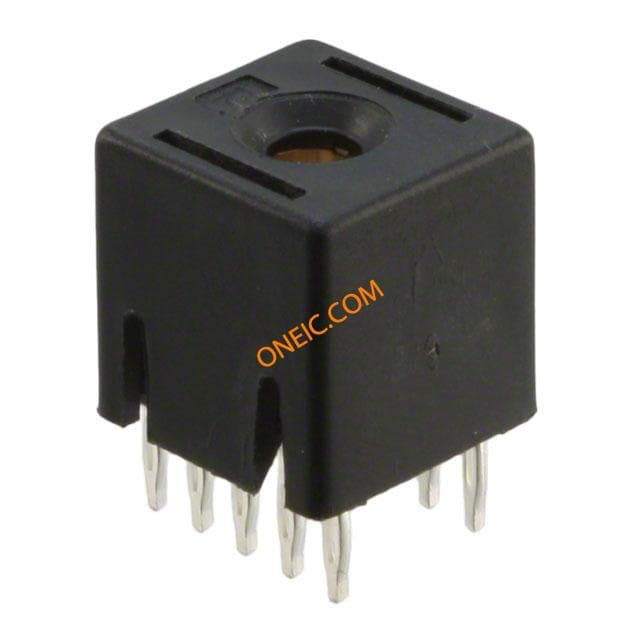

6643269-1
