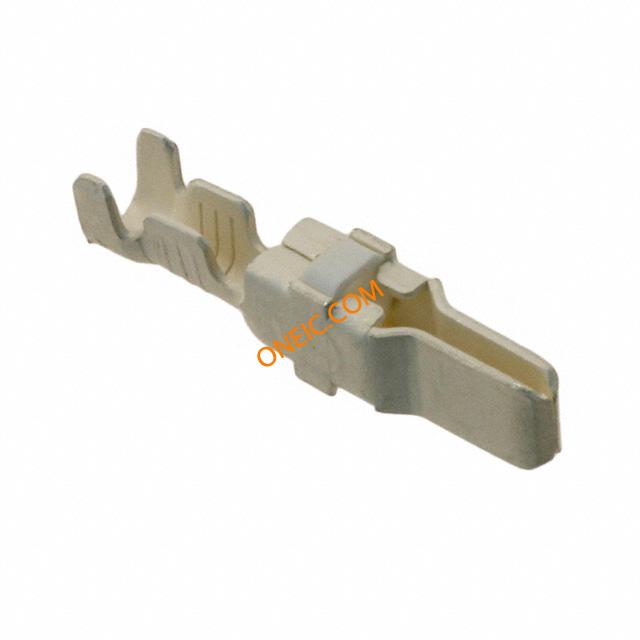

点击放大查看
66256-7
| 制造商 | TE Connectivity Ltd. |
| 描述 | Contact PIN Crimp ST Cable Mount Strip Terminals MALE CONTACT ASSY. (STRIP) Multimate CONN CONT PIN 12-16AWG AG CRIMP MALE CONTACT ASSY. (STRIP) MALE CONTACT ASSY. (STRIP) Search Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts |
| 分类 |
商业参数
| 产品 | Pin Terminals | 标准包装规格 | 1,500 |
| 标准包装数量 | Tape & Reel | ||
合规参数
| RoHS | RoHS Compliant | ||
电气参数
| 测试电流 | 35 | ||
机械参数
| 镀层 | Silver | 材料（通用） | Copper |
| 包装方式 | Reel | 电缆类型 | 分离式导线 |
| 导线线规 | 12-16 AWG | 端接方式 | Crimp |
| 触头类型 | Power | 插针或插孔 | Pin |
| 连接器类型 | Connector Circular | 接触镀层 | 银 |
| 插入件材料 | 铜 | 触头材料 | Copper |
| 包装数量 | 1500 | 端接样式 | 插针 |
| 接触件端接 | Crimp | 绝缘直径 | 3.43 – 4.06 mm [ .135 – .16 in ] |
| 镀层厚度（通用） | 100µin (2.54µm) | 兼容外壳尺寸（如TM-700等） | CPC 连接器, G 系列连接器, M 系列连接器 |
| 接触件表面处理 - 配合 | 银 | ||
产品信息
| 类型 | Power, Stamped | 连接器性别 | PIN |
| 产品子类型 | 端子 | 应用细节 | Power |
