点击放大查看
6469292-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Hard Metric PIN 80 POS 2.5mm Press Fit ST Thru-Hole Z-PACK HM-Zd Connectors, Cable Assemblies and Accessories HM ZD 4 PR HEADER, SEQUENCED Hard Metric Connectors HM ZD 4 PR HDR, SEQUENCED Conn Hard Metric PIN 80 POS 2.5mm Press Fit ST Thru-Hole Product Highlights:ConnectorHousing Gender = Header - Pin25.4 mm Card Slot PitchPCB Mount Angle = VerticalContact Gender = PinSearch Keywords:board to board, high speed, hard metric, Z-PACK, mezzanine board, coplanar board, mid-plane board, Telcordia, parallel, stacking, horizontal, two piece, hmzd, HM-zD, HM-ZD, hm-zd |
| 分类 |
商业参数
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 材料阻燃等级 | UL94 V-0 |
电气参数
| 接口 | HM-Zd | 额定电压 | 250V |
| 数据速率（最大） | ≤12 | 最大额定电流 | 0.700A |
机械参数
| 间距 | 2.5 mm | 长度 | 24.9 |
| 包装方式 | Tube | 屏蔽 | 是 |
| 壳体颜色 | 灰色 | 端接方式 | Press Fit |
| 触头类型 | ACTION PIN Post | 固定类型 | 否 |
| 安装类型 | Through Hole | 电缆间距 | 25.4 [1] |
| 连接器类型 | Header, Male Pins and Blades | 接触镀层 | Gold Over Nickel |
| 排数 | 8 | 连接器样式 | High Speed |
| 插入件材料 | 磷青铜 | 屏蔽材料 | Phosphor bronze |
| 触头材料 | Phosphor Bronze | 壳体材料 | Polyester GF |
| 总长度 | 24.90 [0.980] | 包装数量 | 16 |
| 面板安装类型 | 垂直 | 端接排数 | 压配合 |
| 端接样式 | 插针 | 连接器颜色 | 40 |
| 触点数 | 80 | 端接表面处理 | Tin over Nickel |
| 位数 | 80 | 柱体长度（配合） | 2.50 [0.098] |
| 典型触点布局 | 80 Single Signal, 40 Ground | 接触长度 - 配合 | 5.30 [0.209] |
| 法兰下方引脚尺寸 | 是（参见图纸） | 端子柱长度 | 2.5 |
| 接触镀层厚度 | 30µin (0.76µm) | ||
产品信息
| 制造商 | 5.3 | 类型 | Hard Metric |
| 卡类型 | 无 | 带定序器 | Yes (See Drawing) |
| 制造商全称 | AMP | 产品子类型 | Header |
| 控制器系列 | 否 | 列数 | 10 |
| 选择性装载 | Yes | 加载位置数 | All |
| 转换前位置数 | 10 | ||
环境参数
| 工作温度 | -65°C ~ 105°C | ||
相关型号

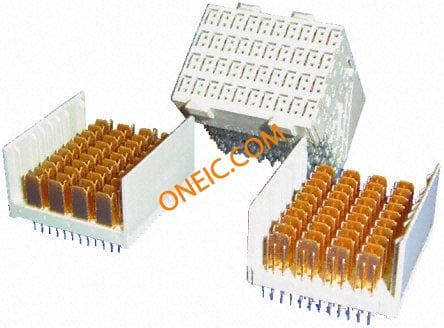

6469001-1
