点击放大查看
6469025-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn High Speed HDR 40 POS 2.5mm Press Fit ST Thru-Hole Z-PACK HM-Zd Connectors, Cable Assemblies and Accessories CONN HEADER 40POS 2PAIR HM-ZD TE Connectivity Z-PACK Series 2.5mm Pitch 40 Way 4 Row Straight Backplane Connector, Press-In Termination, 7A Hard Metric Connectors HM-ZD 2PR 40P HDR ASSY Conn High Speed HDR 40 POS 2.5mm Press Fit ST Thru-Hole Product Highlights:HeaderConnector Type = 10 ColumnInterface Type = HM-ZdContact Type = ACTION PIN PostFeedthrough Post Length = 2.50 mmSearch Keywords:board to board, high speed, hard metric, Z-PACK, mezzanine board, coplanar board, mid-plane board, Telcordia, parallel, stacking, horizontal, two piece, hmzd, HM-zD, HM-ZD, hm-zd HEADER, 2.5MM, 40WAY HMZDPINHDR2PR,HM-ZD2PRHDR40P5.2MM Z-PACK 40 Position Through Hole Press Fit Vertical Pin Header TE Connectivity Z-PACK HM-Zd 系列 2.5mm 节距 40 路 直向 4 排 背板连接器, 按式端子, 0.7A HM-ZD 2PR HDR 40P 2.5MM |
| 分类 |
商业参数
| 其他名称 | 64690251 | 产品类别 | Hard Metric Connectors |
| 标准包装数量 | Rail / Tube | 工厂包装数量 | 20 |
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85366930 |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | UL94 V-0 | ||
电气参数
| 接口 | HM-Zd | 额定电压 | 250V |
| 接触电阻 | 20 mohm | 最大额定电流 | 0.700A |
| 最小供电电压 | 250VAC | ||
机械参数
| 深度 | 15.43 mm | 间距 | 2.5 mm |
| 高度 | 13.4 mm | 重量 | 0.0041 |
| 包装方式 | Tube | 端接方式 | Press Fit |
| 触头类型 | ACTION PIN Post | 柱间距 | :1.5mm |
| 安装类型 | Through Hole | 电缆间距 | 20.3 [0.8] |
| 连接器类型 | Header, Male Pins and Blades | 接触镀层 | Gold Over Nickel |
| 安装样式 | Through Hole | 排数 | 4 |
| 连接器样式 | High Speed | 连接器用途 | Backplane |
| 屏蔽材料 | Phosphor bronze | 触头材料 | Phosphor Bronze |
| 壳体材料 | Polyester GF | 总长度 | 24.90 [0.980] |
| 端接样式 | Press Fit | 连接器颜色 | 20 |
| 触点数 | 40 | 端接表面处理 | Tin over Nickel |
| 接触件端接 | :Press Fit Vertical | 位数 | 40 |
| 柱体长度（配合） | 2.50 [0.098] | 典型触点布局 | 40 Signal, 20 Ground |
| 接触长度 - 配合 | 5.30 [0.209] | 接触镀层厚度 | 30µin (0.76µm) |
产品信息
| 类型 | High Speed | 连接器性别 | HDR |
| 系列 | Z-PACK | 带定序器 | No |
| 制造商全称 | AMP | 产品子类型 | Header |
| 列数 | 10 | 选择性装载 | No |
| 加载位置数 | All | 转换前位置数 | 10 |
环境参数
| 工作温度 | -65°C ~ 105°C | ||
文档与媒体
相关型号
6469028-1
te connectivity / amp
Conn Hard Metric RCP 40 POS 2.5mm Press Fit RA Thru-Hole Z-PACK HM-Zd Connectors, Cable Assemblies and Accessories CONN RCPT 40POS DUAL R/A HM-ZD Hard Metric Connectors REC 4X010P R/A B-PLANE HMZD Conn Hard Metric RCP 40 POS 2.5mm Press Fit RA Thru-Hole Product Highlights:ReceptacleConnector Type = 10 ColumnInterface Type = HM-ZdContact Type = ACTION PIN PostFeedthrough Post Length = 2.20 mmSearch Keywords:board to board, high speed, hard metric, Z-PACK, mezzanine board, coplanar board, mid-plane board, Telcordia, parallel, stacking, horizontal, two piece, hmzd, HM-zD, HM-ZD, hm-zd CONNECTOR, FEMALE, 40WAY HEADER,HM-ZD,40POS,10COLUMN,ACTIONPINPOST,2.20MM,PCB 40 Position 2.5 mm Receptacle Right Angle Through Hole Z-PACK HM-Zd Connector TE Connectivity Z-PACK HM-Zd 系列 2.5mm 节距 40 路 直角 4 排 母 背板连接器, 按式端子, 7A HM-ZD 2PR RECP 40P
1469028-1
te connectivity / amp
Conn Backplane RCP 40 POS 2.5mm Press Fit RA Thru-Hole Z-PACK HM-Zd Connectors, Cable Assemblies and Accessories CONN RCPT 40POS 2ROW RT ANG T/H Connector,HM Zd,recpt,90 deg,40 Way Conn Backplane RCP 40 POS 2.5mm Press Fit RA Thru-Hole Product Highlights:ReceptacleConnector Type = 10 ColumnInterface Type = HM-ZdContact Type = ACTION PIN PostFeedthrough Post Length = 2.20 mmSearch Keywords:board to board, high speed, hard metric, Z-PACK, mezzanine board, coplanar board, mid-plane board, Telcordia, parallel, stacking, horizontal, two piece, hmzd, HM-zD, HM-ZD, hm-zd HEADER,HM-ZD,40POS,10COLUMN,ACTIONPINPOST,2.20MM,PCB 40 Position Receptacle Solder Right Angle Mount Z-Pack Hard Metric Connector TE Connectivity Z-PACK HM-Zd 系列 2.5mm 节距 40 路 直角 4 排 母 背板连接器, 按式端子 HM-ZD 2PR RECP 40P
2065657-1
te connectivity / amp
Conn Hard Metric F 80 POS 2.5mm Press Fit RA Thru-Hole CONN RCPT 80POS 8ROW RT ANG HM-Z Connector pcb 80 way press fit Z-Pack Hard Metric Connectors ZD PLUS 4PR 80P RCPT ASSY CONNECTOR, BACKPLANE, HM-ZD PLUS, RCPT, 80POS RECEPTACLE, HM-ZD PLUS, R/A, 80WAY Connectorpcb80waypressfitZ-Pack 80 Position Z-Pack HM-Zd Plus 4 Pair Press Fit Receptacle Assembly zd Plus, 4 pair, receptacle assy

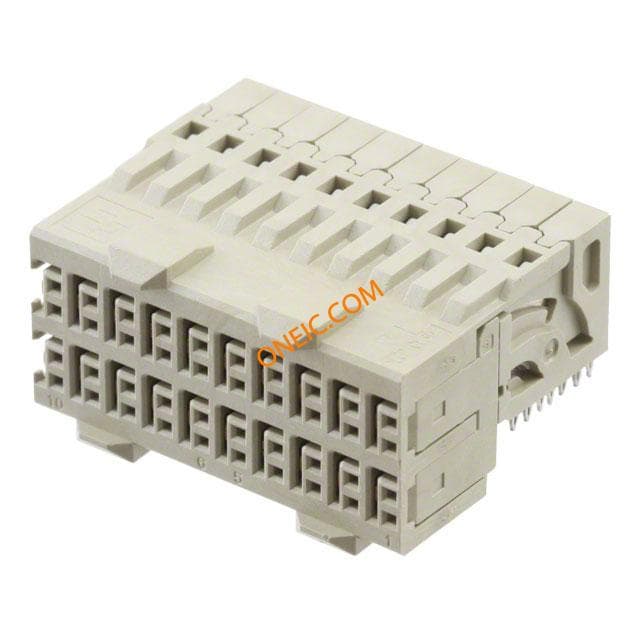

2065769-1
