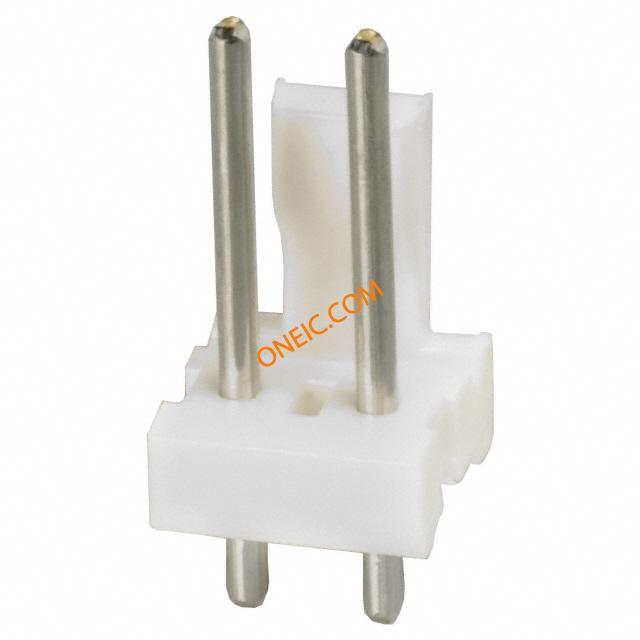

644753-2

点击放大查看

644753-2

制造商
TE Connectivity Ltd.
描述Conn Wire to Board HDR 2 POS 3.96mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER VERT 2POS .156 TIN TE Connectivity MTA-156 Series 3.96mm Pitch 2 Way 1 Row Straight PCB Header, Solder Termination, 7A Conn Wire to Board HDR 2 POS 3.96mm Solder ST Thru-Hole Product Highlights:MTA-156 ConnectorsNumber of Positions = 2Mating Type = HeaderWire-to-Board Application3.96 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP MTA-156VerticalRoundPinHeader,2way TE Connectivity MTA-156 系列 3.96mm节距 2路 (1排) 直 PCB 针座, 焊接端接, 7A , 通孔 02P MTA156 HDR ASSY RN STR F/L
分类
连接器解决方案板对板连接器带罩排针连接器
对参数有疑问？问 AI 助手

商业参数

标准包装数量Bulk

合规参数

RoHSLead free / RoHS CompliantUL等级获得认可
零件状态E28476CSA档案号LR7189
标准编号CSA, ULCSA认证Certified
UL阻燃等级UL 94V-0

电气参数

额定电压600 V ac供电电压600
接触电阻3 mohm最大额定电流7A
最小供电电压600VAC

机械参数

颜色Natural深度7.62 mm
间距3.96 mm高度13.33 mm
长度7.92 mm [ .312 in ]密封型Not Sealed
包装方式Bulk方向直
端接方式Solder触头类型Male Pin
外壳颜色Natural安装类型Through Hole
连接器类型Header, Unshrouded接触镀层Tin
触点时序Without紧固类型Friction Lock
安装样式Through Hole引脚数2
排数1封装形式Plug
壳体镀层Nickel插入件材料铜合金
触头材料Copper Alloy壳体材料Polyester
总长度7.92 mm包装数量1
面板安装类型通孔 - 焊接主要材料WiretoBoard
端接排数焊接端接样式插针
触点数2位数2
兼容外壳尺寸（如TM-700等）MTA .156 连接器组件或 SL .156 连接器组件安装孔直径不带
接触件表面处理 - 配合锡典型触点布局直插式
接触长度 - 配合0.400" (10.16mm)端子柱长度4.06 mm [ .16 in ]
静电放电屏蔽不带

产品信息

类型Wire to Board连接器性别HDR
系列MTA-156覆盖范围无覆盖
制造商全称MTA-156Series产品子类型公端
应用细节Power加载位置数All

环境参数

测试温度标准件 - 非灼热丝工作温度-55C to 105C
