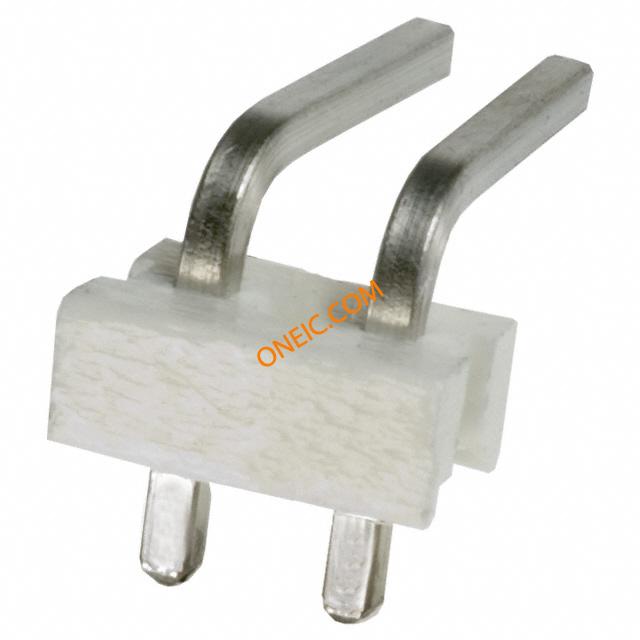

644751-2

点击放大查看

644751-2

制造商
TE Connectivity Ltd.
描述Conn Unshrouded Header HDR 2 POS 3.96mm Solder RA Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER RTANG 2POS .156 TIN Headers & Wire Housings 2P HDR ASSY R/A Conn Unshrouded Header HDR 2 POS 3.96mm Solder RA Thru-Hole Search Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 02P MTA156 HDR ASSY R/A
分类
连接器解决方案板对板连接器带罩排针连接器
对参数有疑问？问 AI 助手

商业参数

产品类别Headers & Wire Housings标准包装数量Bulk
工厂包装数量2000

合规参数

RoHSLead free / RoHS CompliantUL等级获得认可
零件状态E28476CSA档案号LR7189
标准编号CSA, ULCSA认证Certified
UL阻燃等级UL 94V-0材料阻燃等级UL 94 V-0

电气参数

额定电压600 V供电电压600
最大额定电流7 A

机械参数

颜色Natural间距3.96 mm
长度7.92 mm [ .312 in ]密封型Not Sealed
包装方式Bulk端接方式Solder
触头类型Male Pin安装类型Through Hole, Right Angle
连接器类型Header, Unshrouded接触镀层Tin
触点时序Without安装样式不带
引脚数2排数1
封装形式Plug壳体镀层Nickel
插入件材料铜合金触头材料Copper Alloy
壳体材料Polyester包装数量1
面板安装类型通孔 - 焊接端接样式Through Hole
第一触头极性Pin (Male)触点数2
位数2兼容外壳尺寸（如TM-700等）MTA .156 连接器组件或 SL .156 连接器组件
安装孔直径不带接触件表面处理 - 配合锡
典型触点布局直插式接触长度 - 配合0.390" (9.91mm)
端子柱长度4.45 mm静电放电屏蔽不带

产品信息

类型Unshrouded Header连接器性别HDR
系列MTA-156产品子类型Headers
应用细节Wire-to-Board加载位置数All

环境参数

测试温度标准件 - 非灼热丝工作温度-55 – 105 °C [ -67 – 221 °F ]
