644371-4

制造商
TE Connectivity Ltd.
描述Conn IDC Connector F 4 POS 3.96mm IDT RA Cable Mount MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RCPT 4POS 22AWG MTA-156 Headers & Wire Housings 04P MTA156 QUAD ASSY W/O TBS MTA, CST-100 II, MT-6 and SL Connectors and Headers Product Highlights:MTA-156 ConnectorsNumber of Positions = 4Mating Type = ReceptacleConnector Type = Closed EndWire-to-Board ApplicationSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP
分类
连接器解决方案板对板连接器板对板连接器
对参数有疑问？问 AI 助手

商业参数

标准包装规格1产品类别Headers & Wire Housings
标准包装数量Bulk

合规参数

RoHSContains lead / RoHS non-compliant无铅定义Not relevant for lead free process
RoHS/ELV合规状态Not ELV/RoHS compliant材料阻燃等级UL 94V-0

电气参数

额定电压250 V开关功能Locking Ramp
最大额定电流5 A

机械参数

颜色Black间距3.96 mm
包装方式Bulk遮蔽类型No
导线类型Discrete or Ribbon Cable出线方向90°
导线线规22 AWG端接方式IDT
触头类型Female Socket第二连接器With
外壳颜色Black安装类型Free Hanging (In-Line)
连接器类型Closed End接触镀层Bright Tin-Lead Over Nickel
紧固类型Locking Ramp安装样式Wire
排数1连接器用途Receptacle
锁定特性Locking Ramp触头材料High Conductivity Copper Alloy
壳体材料Nylon安装特性Without
面板安装类型Without电缆端接方式IDC
端接样式IDC第一触头极性Socket (Female)
配接方向Without触点数4
位数4典型触点布局3.96 [0.156]
接触镀层厚度80µin (2.03µm)恢复后小径No
线规或范围 - mm²0.3-0.4² [22]

产品信息

备注Mates with tin-plated square posts only类型IDC Connector
连接器性别F系列MTA-156
产品特性Closed End制造商全称AMP
产品子类型MTA-156 Connectors连接类型Wire
跳过的位置数None

文档与媒体

在线文档
644371-4?RQPN=644371-4

相关型号

640445-4

640445-4

te connectivity / amp

Conn Wire to Board HDR 4 POS 3.96mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER VERT 4POS .156 TIN TE Connectivity MTA-156 Series 3.96mm Pitch 4 Way 1 Row Straight PCB Header, Solder Termination, 7A Headers & Wire Housings FRCTN LK HDR STR 4P Square post tin Conn Wire to Board HDR 4 POS 3.96mm Solder ST Thru-Hole Product Highlights:MTA-156 ConnectorsNumber of Positions = 4Mating Type = HeaderWire-to-Board Application3.96 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP CONNECTOR, HEADER, THT, 3.96MM, 4WAY Connector,MTA-156;Male;4;CopperAlloy;7;600;0.156in.;Polyester;White Connector: wire-board; Series: MTA-156; 3.96mm; male; socket; PIN:4 Pin header straight 4P, 640445-4, TE Connectivity TE Connectivity MTA-156 系列 3.96mm节距 4路 (1排) 直 PCB 针座, 焊接端接, 7A , 通孔 04P MTA156 HDR ASSY FL/STR SN

¥0.6379
详情

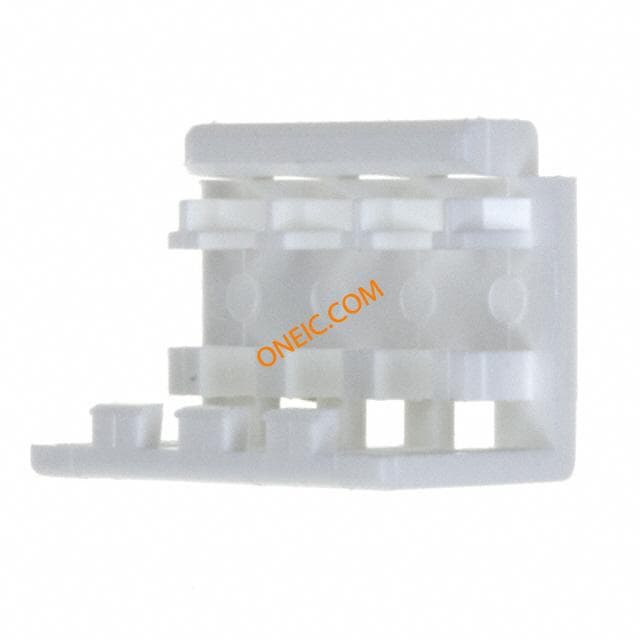

643067-4
