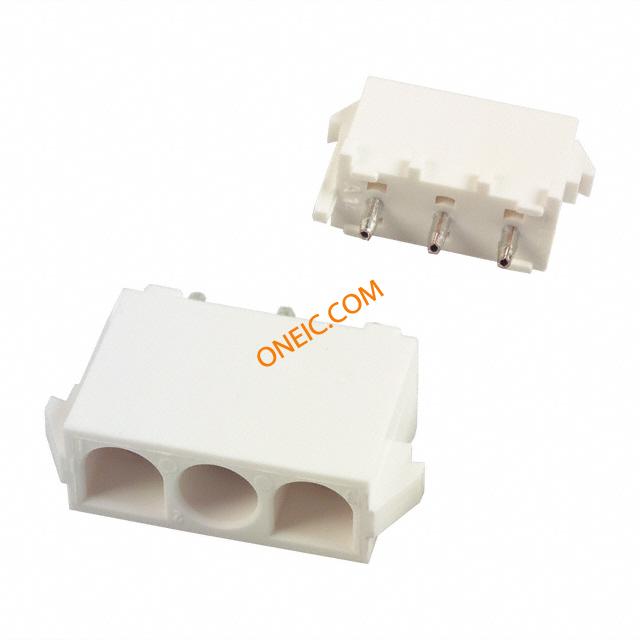

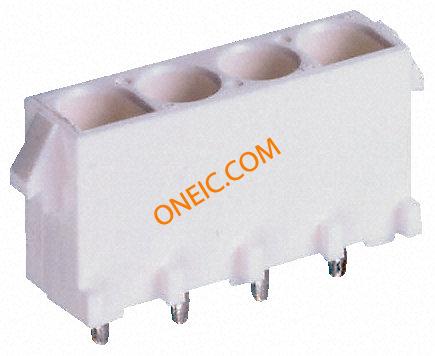

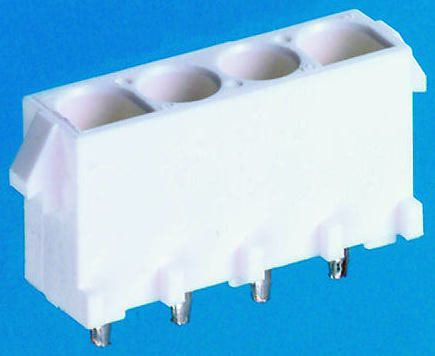

643414-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Power SKT 3 POS 6.35mm Solder ST Thru-Hole 3 Terminal 1 Port .250" Centerline, 600 V, 19 - 36 A max CONN HEADER 3POS VERT .250 TIN TE Connectivity Universal MATE-N-LOK Series 6.35mm 3 Way 1 Row Straight PCB Socket Through Hole Power Pin & Socket Connectors HEADER ASSY 3 POS Conn Power SKT 3 POS 6.35mm Solder ST Thru-Hole 3 Terminal 1 Port Product Highlights:HeaderUniversal MATE-N-LOK, Universal MATE-N-LOK IINot CompactPCI6.35 mm Centerline, MatrixNumber of Circuits = 3Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP UNIVM-N-LHEADER,03PUMNLHDRASSYPOL94VO TE Connectivity Universal MATE-N-LOK 系列 3路 直 6.35mm节距 通孔 印刷电路板插座, 功率 03P UMNL HDR ASSY POL 94VO |
| 分类 |
商业参数
| 产品类别 | Pin & Socket Connectors | 标准包装数量 | Bulk |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| UL等级 | 获得认可 | 零件状态 | E28476 |
| CSA档案号 | LR7189 | 标准编号 | CSA, UL |
| CSA认证 | Certified | UL阻燃等级 | UL 94V-0 |
| 认证机构标志 | 是 | ||
电气参数
| 额定电压 | 600 V ac/dc | 供电电压 | 600 |
| 最大额定电流 | 15A | 最小输入电压 | 600VDC|600VAC |
| 最小供电电压 | 600VDC/600VAC | ||
机械参数
| 颜色 | White | 间距 | 6.35 mm |
| 宽度 | 20.32 | 高度 | 14.73 mm |
| 长度 | 13.97 | 密封型 | Not Sealed |
| 包装方式 | Bulk | 壳体颜色 | 白色 |
| 方向 | 直 | 端接方式 | Solder |
| 触点形式 | Female Socket | 触头类型 | Female Socket |
| 安装类型 | Through Hole | 连接器类型 | Header |
| 接触镀层 | Pre-Tin | 紧固类型 | Locking Ramp |
| 安装样式 | Through Hole | 引脚数 | 3 |
| 排数 | 1 | 封装形式 | Plug |
| 高度（英寸） | 7.62 | 触头材料 | Phosphor Bronze |
| 壳体材料 | Nylon | 包装数量 | 100 |
| 面板安装类型 | 通孔 - 焊接 | 主要材料 | InterconnectSystem |
| 端接排数 | 焊接 | 端接样式 | 插针 |
| 第一触头极性 | Socket (Female) | 触点数 | 3 |
| 位数 | 3 | 兼容外壳尺寸（如TM-700等） | 与插头护套插接（使用插针端子） |
| 安装孔直径 | 带有 | 接触件表面处理 - 配合 | 预镀锡 |
| 典型触点布局 | 直插式 | 端子柱长度 | 3.81 mm [ .149 in ] |
| 静电放电屏蔽 | 不带 | 每排/每行位置数 | All |
产品信息
| 类型 | Power | 连接器性别 | SKT |
| 系列 | Universal MATE-N-LOK | 产品特性 | Board Guide |
| 主要用途 | Board Guide | 制造商全称 | MATE-N-LOK |
| 产品子类型 | PCB Receptacles | 端口数 | 1 |
| 输出配置 | Through Hole | 应用细节 | Power |
| 装配配置 | Without | 加载位置数 | All |
环境参数
| 测试温度 | 标准件 - 非灼热丝 | 工作温度 | -55C to 85C |
| 封装热阻 | 3.18 mm [ .125 in ] | ||
