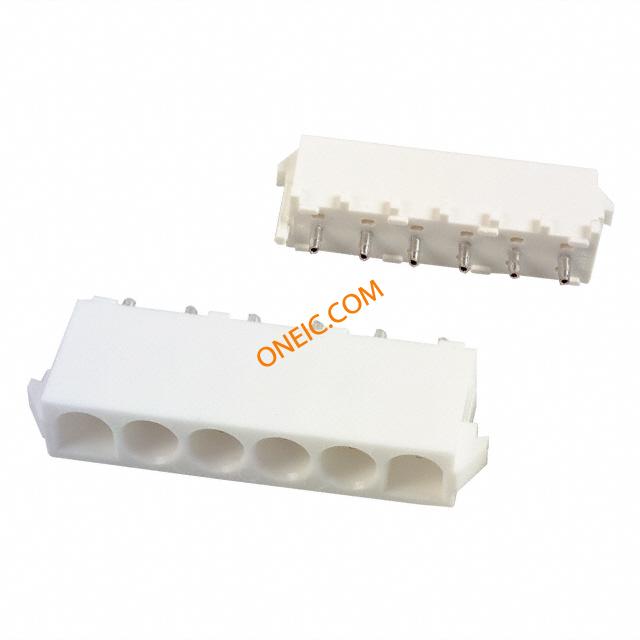

643408-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Power HDR 6 POS 6.35mm Solder ST Thru-Hole 6 Terminal 1 Port Pin & Socket Connectors 6P PCB VERT HEADER .250" Centerline, 600 V, 19 - 36 A max CONN HEADER 6POS VERT .250 TIN Header vert 6 way Pin UMNL Conn Power HDR 6 POS 6.35mm Solder ST Thru-Hole 6 Terminal 1 Port Product Highlights:HeaderUniversal MATE-N-LOKNot CompactPCI6.35 mm Centerline, MatrixNumber of Circuits = 6Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP UNIVM-N-LHEADER,06PUMNLPINHDRASSYPOL94VO TE Connectivity MATE-N-LOK 系列 工业电源 通孔 插头 , 19A额定电流, 600 V 交流 06P UMNL PIN HDR ASSY POL 94VO |
| 分类 |
商业参数
| 产品类别 | Pin & Socket Connectors | 标准包装数量 | Bulk |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | RoHS Compliant | ||
电气参数
| 额定电压 | 600 V | 最大额定电流 | 19 A |
| 最小供电电压 | 600VAC | 连接器类型 - 电压输入 | Plug |
机械参数
| 颜色 | White | 间距 | 6.35 mm |
| 高度 | 14.73 mm | 包装方式 | Bulk |
| 端接方式 | Solder | 触头类型 | Male Pin |
| 安装类型 | Through Hole | 连接器类型 | Header, Shrouded |
| 接触镀层 | Pre Tin | 紧固类型 | Locking Ramp |
| 安装样式 | Through Hole | 排数 | 1 |
| 触头材料 | Phosphor Bronze | 壳体材料 | Polyamide (PA) |
| 主要材料 | InterconnectSystem | 第一触头极性 | Pin (Male) |
| 触点数 | 6 | 位数 | 6 |
产品信息
| 类型 | Power | 连接器性别 | HDR |
| 系列 | Universal Mate-N-Lok | 产品特性 | Board Guide |
| 制造商全称 | MATE-N-LOK | 产品子类型 | Headers |
| 端口数 | 1 Port | 加载位置数 | All |
环境参数
| 工作温度 | -55C to 85C | 结工作温度 | 85C |
文档与媒体
相关型号
640581-1
te connectivity / amp
Conn Housing PL 6 POS 6.35mm ST Cable Mount Individual .250" Centerline, 600 V, 19 - 36 A max CONN PLUG 6POS 94V-0 UNI-MATE Housing,plug,Mate-n-lok,1 row,6 Way Pin & Socket Connectors 6 P IN-LINE PLUG Conn Housing PL 6 POS 6.35mm ST Cable Mount Individual Product Highlights:HousingUniversal MATE-N-LOKNot CompactPCI6.35 mm Centerline, MatrixNumber of Circuits = 6Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP HOUSING, 6WAY CONNECTOR,SOFTSHELL,UNIVERSALMATE-N-LOK,6POSITION,FREEHANGING,WHITE Crimp housing Pitch6.35 mm Poles 6 MATE-N-LOK Universal, 640581-1, TE Connectivity TE Connectivity Universal MATE-N-LOK 系列 6.35mm 节距 6 路 直 公 压接连接器外壳 06P UMNL PLUG HSG
640585-1
te connectivity / amp
Conn Housing PL 6 POS 6.35mm ST Individual Pin & Socket Connectors 6P IN-LINE PLUG .250" Centerline, 600 V, 19 - 36 A max CONN PLUG 6POS 94V-2 UNI-MATE Housing,plug,Mate-n-lok,1 row,6 Way Conn Housing PL 6 POS 6.35mm ST Individual Product Highlights:HousingUniversal MATE-N-LOKNot CompactPCI6.35 mm Centerline, MatrixNumber of Circuits = 6Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP CONNECTOR, RECEPT Plug,6Postition,UniversalMATE-N-LOK,6.35mmCenterline,Matrix Crimp housing Pitch6.35 mm Poles 6 Single row / Free hanging/cable mount MATE-N-LOK Universal, 640585-1, TE Connectivity TE Connectivity Universal MATE-N-LOK 系列 6.35mm 节距 6 路 直 公 压接连接器外壳 06P UMNL PLUG HSG V2 NATL

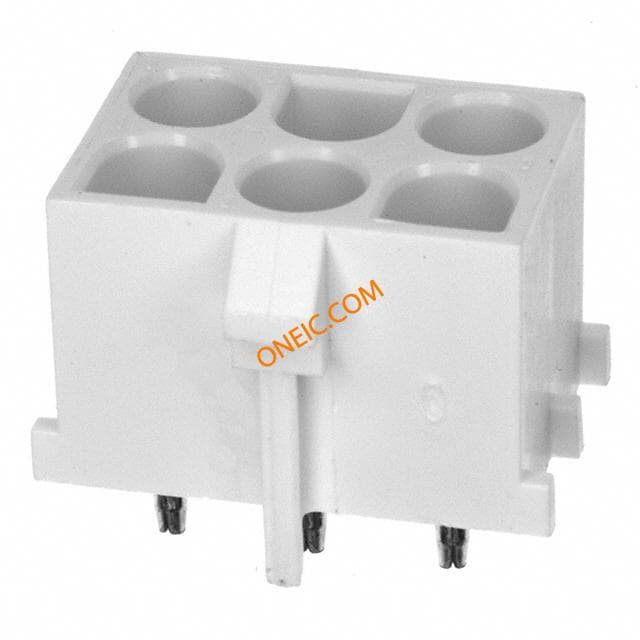

643424-1
