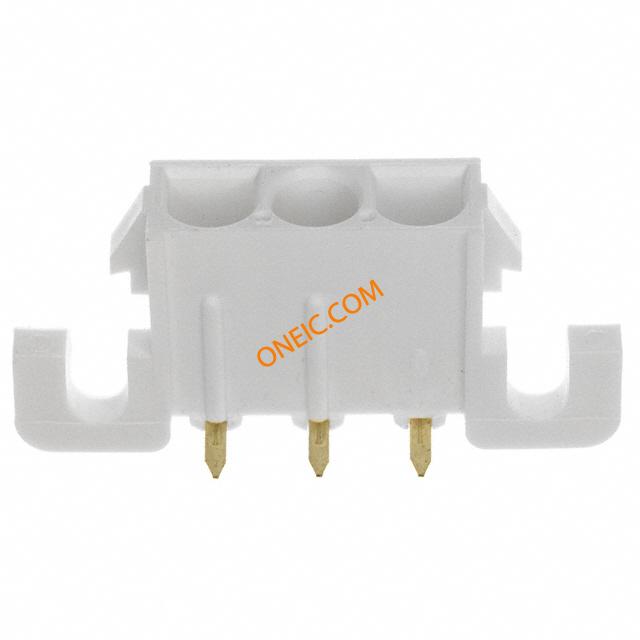

643228-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Power SKT 3 POS 6.35mm Solder RA Thru-Hole 3 Terminal 1 Port Box .250" Centerline, 600 V, 19 - 36 A max CONN HEADER 3POS RTANG .250 TIN MATE-N-LOK 3 Male Right Angle Heavy Duty Power Connector, Through Hole 19A,600V ac/dc Power to the Board 3P HEADER ASSY R/A Conn Power SKT 3 POS 6.35mm Solder RA Thru-Hole 3 Terminal 1 Port Box Product Highlights:HeaderUniversal MATE-N-LOK, Universal MATE-N-LOK IINot CompactPCI6.35 mm Centerline, MatrixNumber of Circuits = 3Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP HEADER, 3WAY UNIVM-N-LHEADER,03PUMNLHDRASSYR/A94VO TE Connectivity Universal MATE-N-LOK 系列 6.35mm节距 3路 直角 印刷电路板插座, 焊接端接, 19A , 通孔 03P UMNL HDR ASSY R/A 94VO |
| 分类 |
商业参数
| 产品类别 | Power to the Board | 标准包装数量 | Bulk |
| 工厂包装数量 | 280 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 认证机构 | :CSA, UL, VDE | 材料阻燃等级 | :UL94V-0 |
电气参数
| 量程（°/s） | :TE - Universal MATE-N-LOK Series | 额定电压 | 600 V ac/dc |
| 最大额定电流 | 19A | 最小供电电压 | 600VDC/600VAC |
| 触点额定电流 | :19A | ||
机械参数
| 颜色 | Natural | 深度 | 17.27 mm |
| 间距 | 6.35 mm | 高度 | 9.14 mm |
| 重量 | 0.002 | 包装方式 | Bulk |
| 端接方式 | Solder | 触头类型 | Female Socket |
| 安装类型 | Through Hole | 连接器类型 | Header |
| 接触镀层 | Tin | 紧固类型 | Locking Ramp |
| 安装样式 | Through Hole | 排数 | 1 |
| 材料表面处理 | :- | 触头材料 | Phosphor Bronze |
| 壳体材料 | Polyamide (PA) | 总长度 | 37.97 mm |
| 主要材料 | InterconnectSystem | 连接器颜色 | :White |
| 触点数 | 3 | 接触件端接 | :Solder |
| 位数 | 3 | 第一连接器安装类型 | :PC Board |
产品信息
| 类型 | Power | 连接器性别 | SKT |
| 系列 | MATE-N-LOK | CAD图纸 | 3D CAD Model |
| 制造商全称 | MATE-N-LOK | 端口数 | 1 Port |
| 加载位置数 | All | ||
环境参数
| 工作温度 | :105°C | ||
