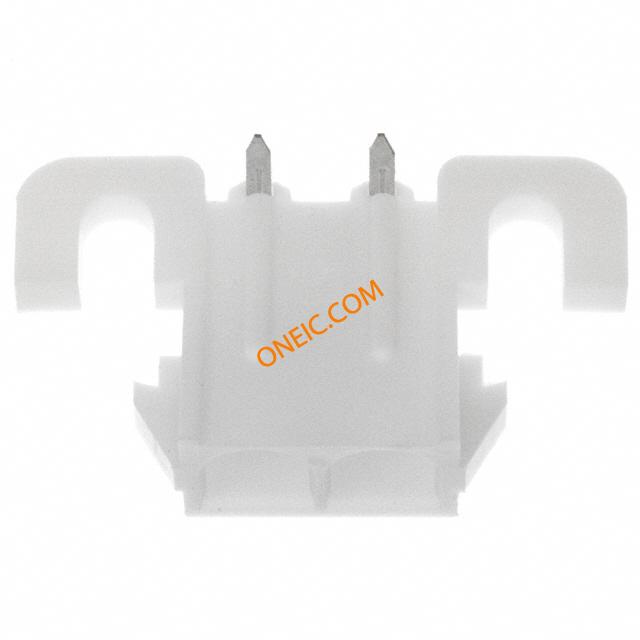

643226-1

点击放大查看

643226-1

制造商
TE Connectivity Ltd.
描述Conn Power SKT 2 POS 6.35mm Solder RA Thru-Hole 2 Terminal 1 Port .250" Centerline, 600 V, 19 - 36 A max CONN HEADER 2POS RTANG .250 TIN Power to the Board 2P R/A HDR ASSY Conn Power SKT 2 POS 6.35mm Solder RA Thru-Hole 2 Terminal 1 Port Product Highlights:HeaderUniversal MATE-N-LOK, Universal MATE-N-LOK IINot CompactPCI6.35 mm Centerline, MatrixNumber of Circuits = 2Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP UNIVM-N-LHEADER,02PUMNLHDRASSYR/A94VO 02P UMNL HDR ASSY R/A 94VO
分类
连接器解决方案板对板连接器板对板连接器
对参数有疑问？问 AI 助手

商业参数

产品类别Power to the Board标准包装数量Bulk
工厂包装数量280

合规参数

RoHSLead free / RoHS CompliantUL等级获得认可
零件状态E28476CSA档案号LR7189
标准编号CSA, ULCSA认证Certified
UL阻燃等级UL 94V-0认证机构标志是

电气参数

额定电压600 V供电电压600
最大额定电流19 A最小供电电压600VAC

机械参数

颜色Natural深度17.27 mm
间距6.35 mm高度9.14 mm
密封型Not Sealed包装方式Bulk
端接方式Solder触头类型Female Socket
安装类型Through Hole连接器类型Header
接触镀层Tin紧固类型Locking Ramp
安装样式Through Hole引脚数2
排数1封装形式Receptacle
触头材料Phosphor Bronze壳体材料Polyamide (PA)
总长度31.62 mm安装特性安装孔
包装数量280面板安装类型通孔 - 焊接
主要材料InterconnectSystem端接样式插座
第一触头极性Socket (Female)触点数2
位数2兼容外壳尺寸（如TM-700等）与插头护套插接（使用插针端子）
安装孔直径带有接触件表面处理 - 配合预镀锡
典型触点布局直插式端子柱长度3.7 mm [ .146 in ]
静电放电屏蔽不带

产品信息

类型Power连接器性别SKT
制造商全称MATE-N-LOK产品子类型Headers
端口数1 Port应用细节Power
装配配置Without加载位置数All

环境参数

测试温度标准件 - 非灼热丝工作温度-40 – 105 °C [ -40 – 221 °F ]
封装热阻3.18 mm [ .125 in ]
