点击放大查看

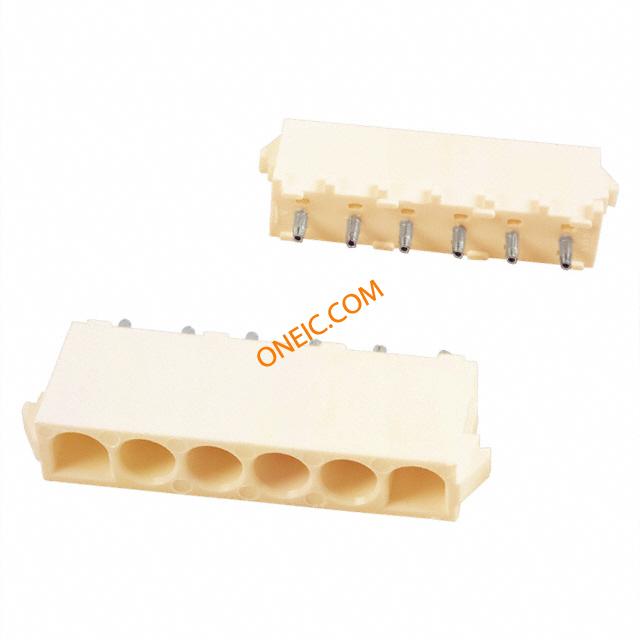

641832-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Power HDR 6 POS 6.35mm Solder ST Thru-Hole 6 Terminal 1 Port CONN HEADER 6POS VERT .250 TIN Header vert 6 way Pin UMNL Pin & Socket Connectors 6 P PCB VERT. HEADER Conn Power HDR 6 POS 6.35mm Solder ST Thru-Hole 6 Terminal 1 Port Product Highlights:HeaderUniversal MATE-N-LOKNot CompactPCI6.35 mm Centerline, MatrixNumber of Circuits = 6Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP PLUG & SOCKET CONN, HEADER, 6POS, 6.35MM Header;SoftShell;UniversalMATE-N-LOK;Natural;Nylon;6;UL94V-2 TE Connectivity MATE-N-LOK 系列 工业电源 通孔 插头 , 19A额定电流, 600 V 交流 06P UMNL PIN HDR ASSY V2 NATL |
| 分类 |
商业参数
| 产品类别 | Pin & Socket Connectors | 标准包装数量 | Bulk |
| 工厂包装数量 | 100 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
电气参数
| 额定电压 | 600 V ac | 最大额定电流 | 19A |
| 最小供电电压 | 600VAC | 连接器类型 - 电压输入 | Plug |
机械参数
| 颜色 | White | 间距 | 6.35 mm |
| 高度 | 14.73 mm | 重量 | 0.004 |
| 包装方式 | Bulk | 端接方式 | Solder |
| 触头类型 | Male Pin | 安装类型 | Through Hole |
| 连接器类型 | Header, Shrouded | 接触镀层 | Tin |
| 紧固类型 | Locking Ramp | 安装样式 | Through Hole |
| 排数 | 1 | 触头材料 | Phosphor Bronze |
| 壳体材料 | Polyamide (PA) | 第一触头极性 | Pin (Male) |
| 触点数 | 6 | 接触件端接 | :Through Hole Vertical |
| 位数 | 6 | 第一连接器安装类型 | :PCB |
产品信息
| 类型 | Power | 连接器性别 | HDR |
| 系列 | Universal Mate-N-Lok | 产品子类型 | Headers |
| 端口数 | 1 Port | 加载位置数 | All |
