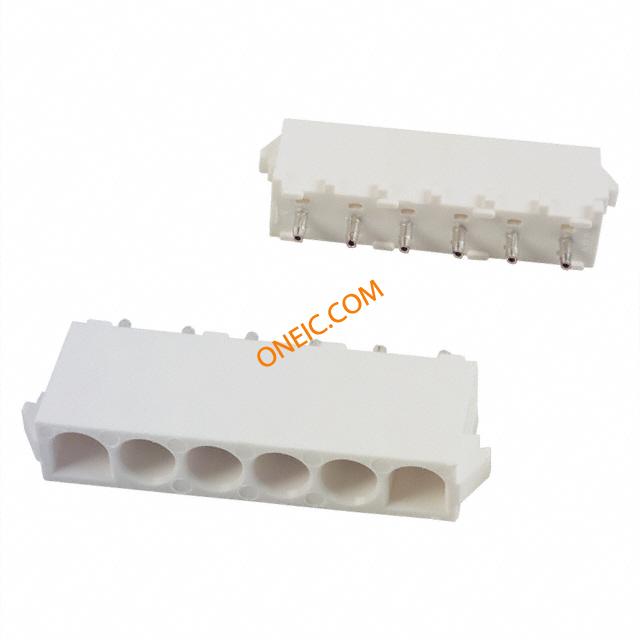

641831-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Power HDR 6 POS 6.35mm Solder ST Thru-Hole 6 Terminal 1 Port .250" Centerline, 600 V, 19 - 36 A max CONN HEADER 6POS VERT .250 TIN TE Connectivity Universal MATE-N-LOK Series 6.35mm Pitch 6 Way 1 Row Straight PCB Header, Solder Termination, 15A Power to the Board 6P PIN HDR ASSY Conn Power HDR 6 POS 6.35mm Solder ST Thru-Hole 6 Terminal 1 Port Product Highlights:HeaderUniversal MATE-N-LOKNot CompactPCI6.35 mm Centerline, MatrixNumber of Circuits = 6Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP UNIVM-N-LHEADER,06PUMNLPINHDRASSY94VO TE Connectivity Universal MATE-N-LOK 系列 6.35mm节距 6路 (1排) 直 PCB 针座, 焊接端接, 15A , 通孔 06P UMNL PIN HDR ASSY 94VO |
| 分类 |
商业参数
| 产品类别 | Power to the Board | 标准包装数量 | Bulk |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | ||
电气参数
| 额定电压 | 600 V ac/dc | 最大额定电流 | 15A |
| 最小供电电压 | 600VAC | ||
机械参数
| 颜色 | White | 深度 | 7.62 mm |
| 间距 | 6.35 mm | 高度 | 14.73 mm |
| 包装方式 | Bulk | 端接方式 | Solder |
| 触头类型 | Male Pin | 安装类型 | Through Hole |
| 连接器类型 | Header, Shrouded | 接触镀层 | Tin |
| 紧固类型 | Locking Ramp | 安装样式 | Through Hole |
| 排数 | 1 | 触头材料 | Phosphor Bronze |
| 壳体材料 | Polyamide (PA) | 总长度 | 39.37 mm |
| 主要材料 | InterconnectSystem | 第一触头极性 | Pin (Male) |
| 触点数 | 6 | 位数 | 6 |
产品信息
| 类型 | Power | 连接器性别 | HDR |
| 系列 | Universal MATE-N-LOK | 制造商全称 | MATE-N-LOK |
| 产品子类型 | Headers | 端口数 | 1 Port |
| 加载位置数 | All | ||
环境参数
| 工作温度 | -55C to 85C | 结工作温度 | 85C |
