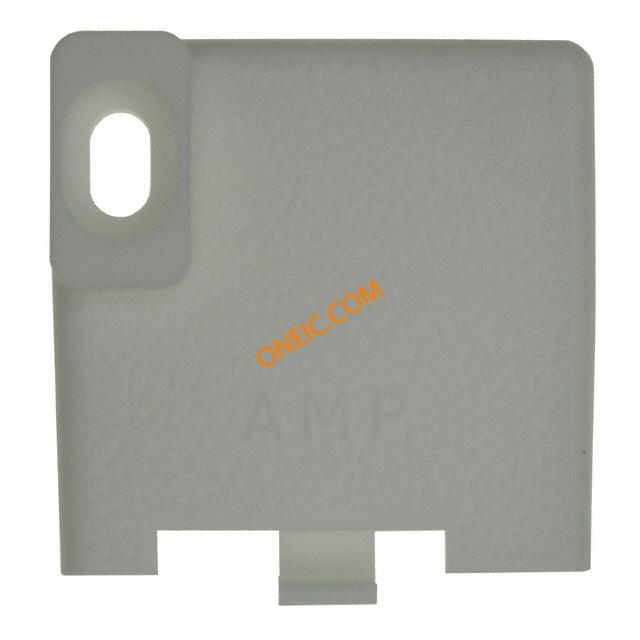

641776-2
| 制造商 | TE Connectivity Ltd. |
| 描述 | Connector Accessories 4 POS Housing Strain Relief Nylon Natural Soft Shell - Accessories CONN STRAIN RELIEF 4POS IN LINE Mate-n-Lok Universal,Strain Relief,4way Power to the Board STRN RLF W/INSERT Connector Accessories 4 POS Housing Strain Relief Nylon Natural Product Highlights:Strain ReliefUniversal MATE-N-LOK IINylon Housing MaterialColor = WhiteNumber of Circuits = 4Search Keywords:Power Pin & Socket, Lighting Interconnection Products, Valve Connector, PWRSIGALLP STRAIN RELIEF, 4WAY, NYLON STRAINRELIEFS,WHITENYLON,UL94V-0RATED,4CIRCUIT TE Connectivity 641776 4路 应变消除, 使用于 通用 MATE-N-LOK 连接器 04P UMNL STR/REL |
| 分类 |
商业参数
| 产品类别 | Power to the Board | 标准包装数量 | Bulk |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 额定电压 | 600 V | 连接器类型 - 电压输入 | Universal MATE-N-LOK II |
机械参数
| 颜色 | White | 深度 | 33.02 mm |
| 重量 | 0.003 | 线径 | 1.02 â 4.83 [0.040 â 0.190] |
| 供货尺寸 | No | 壳体材料 | Nylon |
| 端接样式 | Screw | 第一触头极性 | Pin (Male), Socket (Female) |
| 触点数 | 4 | 位数 | 4 |
| 绝缘材料 - 材质 | :Nylon | 典型触点布局 | In-Line |
产品信息
| 备注 | Strain relief part number represents one half of a strain relief. Two of a part | 类型 | Strain Relief |
| 系列 | Mate-N-Lok | 产品子类型 | Strain Relief |
| 附件类型 | Strain Relief | 电路数 | 4 |
| 射频系列/标准 | 641776 | 适用产品/相关产品 | Universal MATE-N-LOK II Series |
文档与媒体
相关型号
770026-1
te connectivity / amp
Conn Housing RCP 4 POS 6.35mm ST .250" Centerline, 600 V, 19 - 36 A max CONN RECPT/CAP 4POS UMNL-II 2PC Universal MATE-N-LOK II Cap Housing 4P Pin & Socket Connectors 4 IN LINE CAP Conn Housing RCP 4 POS 6.35mm ST Product Highlights:HousingUniversal MATE-N-LOK IINot CompactPCI6.35 mm Centerline, MatrixNumber of Circuits = 4Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP PLUG AND SOCKET CONNECTOR HOUSING Connector,SoftShell;UniversalMATE-N-LOKII;4;Receptacle(Cap);Nylon 04P UMNLII IN-LINE CAP HSG KIT
770050-1
te connectivity / amp
Conn Housing RCP 4 POS 6.35mm Crimp ST Individual .250" Centerline, 600 V, 19 - 36 A max CONN CAP REAR 4POS UNIV-MNL II Pin & Socket Connectors 04P UMNL II CAP REAR Conn Housing RCP 4 POS 6.35mm Crimp ST Individual Product Highlights:HousingUniversal MATE-N-LOK II Product LineIn-Line Contact Layout6.35 mm CenterlineNumber of Positions = 4Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP 04P UMNL II CAP REAR 94VO
641777-1
te connectivity / amp
UMNL STR/REL ADAPTER NATL Soft Shell - Accessories ADAPTER FOR CAP HOUSING RELIEF Pin & Socket Connectors NATURAL NYLON CAP Connector Accessories Cap Housing Adapter Nylon Natural Connector Accessories Cap Housing Adapter Nylon Natural Product Highlights:Cap Housing AdapterUniversal MATE-N-LOKNylon Housing MaterialColor = NaturalUL 94V-2Search Keywords:Power Pin & Socket, Lighting Interconnection Products, Valve Connector, PWRSIGALLP STRAIN RELIEF, MATE-N-LOK CAPHOUSINGADAPTER,UNIVERSALMATE-N-LOK,STRAINRELIEF,NYLON,NATURAL
770019-1
te connectivity / amp
Conn Housing PL 4 POS 6.35mm ST Bulk .250" Centerline, 600 V, 19 - 36 A max CONN PLUG 4POS UMNL-II (2PC) Pin & Socket Connectors 4 POS IN LINE PLUG Conn Housing PL 4 POS 6.35mm ST Bulk Product Highlights:HousingUniversal MATE-N-LOK IINot CompactPCI6.35 mm Centerline, MatrixNumber of Circuits = 4Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP PLUG AND SOCKET CONNECTOR HOUSING Connector,SoftShell;UniversalMATE-N-LOKII;4;Plug;Nylon;White;0.25in. Crimp housing Pitch6.35 mm Poles 4 MATE-N-LOK Universal, 770019-1, TE Connectivity 04P UMNLII IN-LNE PLUG HSG KIT
770036-1
te connectivity / amp
Conn Housing PL 4 POS 6.35mm ST Rear Piece .250" Centerline, 600 V, 19 - 36 A max CONN PLUG REAR 4POS UNIV-MNL II Mate-n-Lok housing,plug,free hanging,4w Pin & Socket Connectors 04P UMNL II PLUG REA Conn Housing PL 4 POS 6.35mm ST Rear Piece Product Highlights:HousingUniversal MATE-N-LOK II Product LineIn-Line Contact Layout6.35 mm CenterlineNumber of Positions = 4Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP 04P UMNL II PLUG REAR 94VO
641778-1
te connectivity / amp
UMNL STR/REL ADAPTER Soft Shell - Accessories ADAPTER FOR CAP HOUSING RELIEF Strain relief,Matenlok,adapter-caps,Whte Pin & Socket Connectors WHITE NYLON CAP Connector Accessories Cap Housing Adapter Nylon White Connector Accessories Cap Housing Adapter Nylon White Product Highlights:Cap Housing AdapterUniversal MATE-N-LOKNylon Housing MaterialColor = WhiteUL 94V-0Search Keywords:Power Pin & Socket, Lighting Interconnection Products, Valve Connector, PWRSIGALLP HOUSING ADAPTER, CAP Adapter;UniversalMATE-N-LOK;Nylon;White;AMP;RoHSCompliant,ELVCompliant TE Connectivity 应力释放支架
