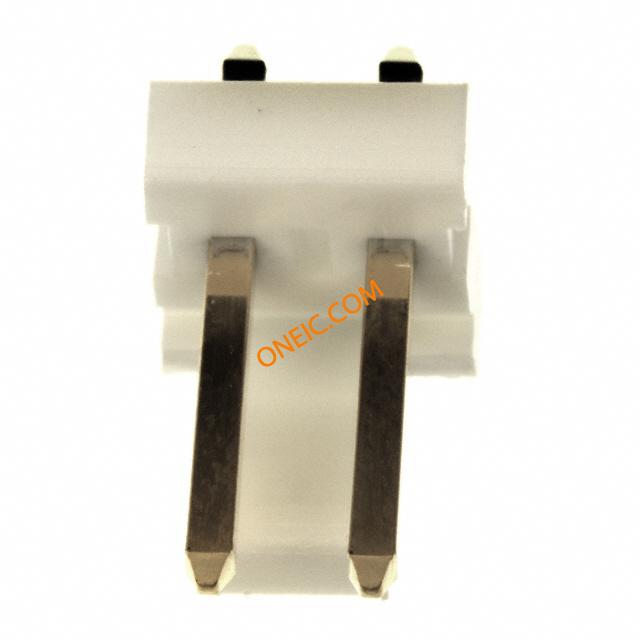

641119-2

点击放大查看

641119-2

制造商
TE Connectivity Ltd.
描述Conn Wire to Board HDR 2 POS 3.96mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER 2POS VERT .156 GOLD Conn Wire to Board HDR 2 POS 3.96mm Solder ST Thru-Hole Product Highlights:MTA-156 ConnectorsNumber of Positions = 2Mating Type = HeaderWire-to-Board Application3.96 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 02P MTA156 HDR ASSY FL/ST 15AU
分类
连接器解决方案板对板连接器带罩排针连接器
对参数有疑问？问 AI 助手

商业参数

其他名称6411192标准包装数量Bulk

合规参数

RoHSContains lead / RoHS non-compliantUL等级获得认可
UL档案号E28476CSA档案号LR7189
标准编号CSA, ULCSA认证Certified
材料阻燃等级UL 94V-0

电气参数

供电电压600连接器阻抗焊接
最大额定电流7

机械参数

颜色Natural间距3.96 mm
高度10.79 mm [ .425 in ]长度7.92 mm [ .312 in ]
包装方式Bulk壳体颜色自然
端接方式Solder触头类型Male Pin
触点形状Square安装类型Through Hole
连接器类型Header, Unshrouded接触镀层Gold Over Nickel
触点时序Without紧固类型Friction Lock
安装样式不带排数1
壳体镀层Tin-Lead外壳材料（壳体）摩擦锁
插入件材料铜合金壳体材料聚酯 - GF
包装数量1250面板安装类型通孔 - 焊接
端接样式插针触点数2
端接表面处理不带位数2
兼容外壳尺寸（如TM-700等）MTA .156 连接器组件或 SL .156 连接器组件触头长度-柱3.18 mm [ .125 in ]
安装孔直径不带接触件表面处理 - 配合锡铅
典型触点布局同轴接触长度 - 配合0.400" (10.16mm)
表面贴装焊盘尺寸Without端子柱长度10.16 mm [ .4 in ]
接触镀层厚度15µin (0.38µm)静电放电屏蔽不带
护套（绝缘）厚度1.27 µm, 50 µin

产品信息

类型Wire to Board连接器性别HDR
可密封否产品子类型连接器
加载位置数All

环境参数

工作温度-55 – 105 °C [ -67 – 221 °F ]封装热阻1.6 mm [ .063 in ]
