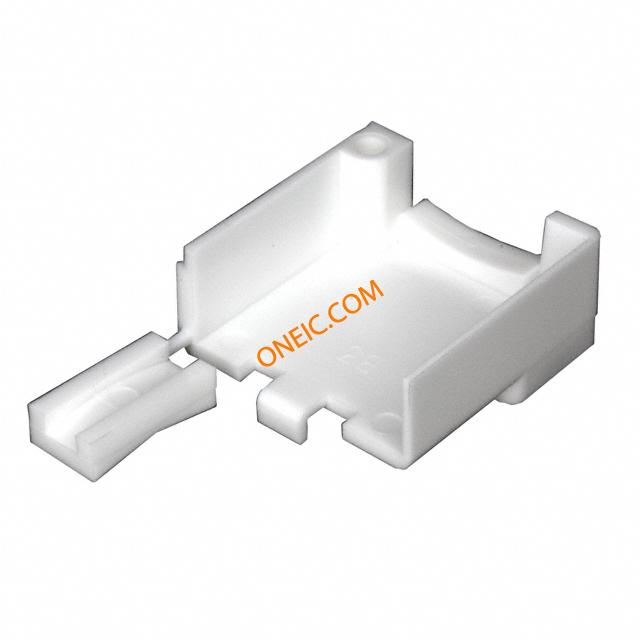

640717-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | 12P UMNL STR/REL Connector Accessories Strain Relief 12 POS Nylon White Soft Shell - Accessories CONN STRAIN RELIEF ENCLOSE 12POS Mate-N-Lok cable-clamp housing 12W Pin & Socket Connectors STRN RLF 12P MATRIX Connector Accessories Strain Relief 12 POS Nylon White Product Highlights:Strain ReliefUniversal MATE-N-LOK IINylon Housing MaterialColor = WhiteNumber of Circuits = 12Search Keywords:Power Pin & Socket, Lighting Interconnection Products, Valve Connector, PWRSIGALLP STRAIN RELIEF, 12WAY Connector;SoftShell;12;UniversalMATE-N-LOKII;Nylon;Matrix;AMPBrand Strain relief shell, 640717-1, TE Connectivity TE Connectivity 640717 12路 应力释放支架, 使用于 通用 MATE-N-LOK 连接器 |
| 分类 |
商业参数
| 产品类别 | Pin & Socket Connectors | 标准包装数量 | 1 |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 标准 | RoHSCompliant,ELVCompliant |
| 海关税号 | 85369010 | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 材料阻燃等级 | UL 94V-0 |
电气参数
| 输出数量 | 12 | 连接器类型 - 电压输入 | Universal MATE-N-LOK II |
机械参数
| 颜色 | White | 深度 | 33.02 mm |
| 宽度 | :33mm | 高度 | 4.73 mm |
| 长度 | :33mm | 重量 | 0.006 |
| 材料（通用） | :Nylon | 线径 | 3.81 â 19.05 [0.150 â 0.750] |
| 连接器类型 | SoftShell | 安装样式 | Panel |
| 供货尺寸 | Yes | 壳体材料 | Nylon |
| 总长度 | 32.51 mm | 主要材料 | Interconnect |
| 端接样式 | Screw | 第一触头极性 | Socket (Female) |
| 连接器颜色 | :White | 触点数 | 12 |
| 位数 | 12 | 绝缘材料 - 材质 | :Nylon (Polyamide) |
| 典型触点布局 | Matrix | 外径-未扩张 | :19.05mm |
产品信息
| 备注 | Strain relief part number represents one half of a strain relief. Two of a part | 类型 | Strain Relief |
| 样式 | :#6 x 16 mm Lg Type B Pan head sheet metal screw | 系列 | Universal Mate-N-Lok |
| 制造商全称 | MATE-N-LOK | 产品子类型 | Strain Relief |
| 附件类型 | Strain Relief | 电路数 | 12 |
| 射频系列/标准 | 640717 | 适用产品/相关产品 | Universal MATE-N-LOK II Series |
文档与媒体
相关型号
770056-1
te connectivity / amp
Conn Housing RCP 12 POS 6.35mm ST Rear Piece .250" Centerline, 600 V, 19 - 36 A max CONN CAP REAR 12POS UNIV-MNL II Pin & Socket Connectors 12 MATRIX CAR REAR Conn Housing RCP 12 POS 6.35mm ST Rear Piece Product Highlights:HousingUniversal MATE-N-LOK IINot CompactPCI6.35 x 6.35 mm Centerline, MatrixNumber of Circuits = 12Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP 12P UMNL II CAP REAR 94VO
770042-1
te connectivity / amp
Conn Housing PL 12 POS 6.35mm ST Rear Piece .250" Centerline, 600 V, 19 - 36 A max CONN PLUG REAR 12POS UNIV-MNL II Pin & Socket Connectors FREE HNG PLUG 12P Conn Housing PL 12 POS 6.35mm ST Rear Piece Product Highlights:HousingUniversal MATE-N-LOK IINot CompactPCI6.35 x 6.35 mm Centerline, MatrixNumber of Circuits = 12Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP UniversalMATE-N-LOKII,Connector,19A,Plug,Rear,.25"Centerline 12P UMNL II PLUG REAR 94VO
770022-1
te connectivity / amp
Conn Housing PL 12 POS 6.35mm ST Bulk .250" Centerline, 600 V, 19 - 36 A max CONN PLUG 12POS UMNL-II (2PC) Pin & Socket Connectors 12 MATRIX PLUG Conn Housing PL 12 POS 6.35mm ST Bulk Product Highlights:HousingUniversal MATE-N-LOK IINot CompactPCI6.35 x 6.35 mm Centerline, MatrixNumber of Circuits = 12Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP Connector,SoftShell;UniversalMATE-N-LOKII;12;Plug;Nylon;White;31A Crimp housing Pitch6.35 mm Poles 12 MATE-N-LOK Universal, 770022-1, TE Connectivity 12P UMNLII IN-LNE PLUG HSG KIT
641777-1
te connectivity / amp
UMNL STR/REL ADAPTER NATL Soft Shell - Accessories ADAPTER FOR CAP HOUSING RELIEF Pin & Socket Connectors NATURAL NYLON CAP Connector Accessories Cap Housing Adapter Nylon Natural Connector Accessories Cap Housing Adapter Nylon Natural Product Highlights:Cap Housing AdapterUniversal MATE-N-LOKNylon Housing MaterialColor = NaturalUL 94V-2Search Keywords:Power Pin & Socket, Lighting Interconnection Products, Valve Connector, PWRSIGALLP STRAIN RELIEF, MATE-N-LOK CAPHOUSINGADAPTER,UNIVERSALMATE-N-LOK,STRAINRELIEF,NYLON,NATURAL

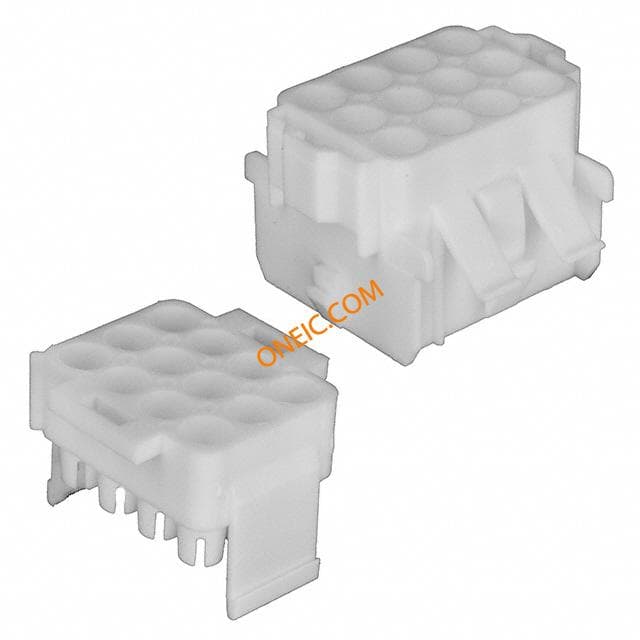

770029-1
