点击放大查看

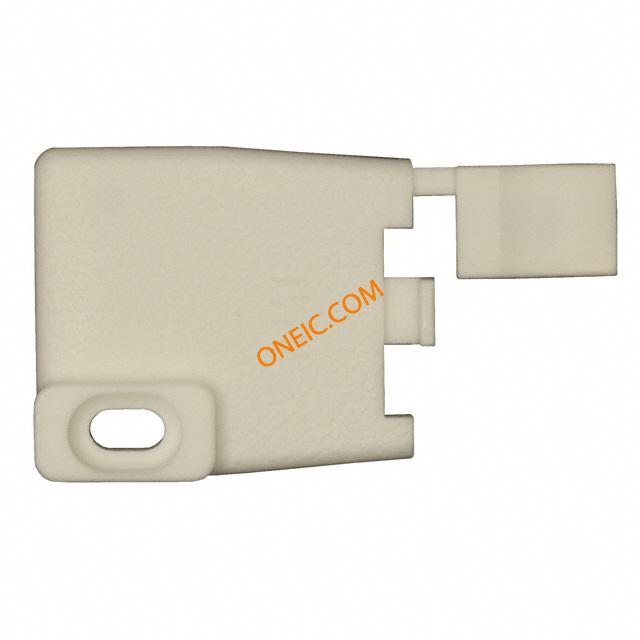

640714-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | 03P UMNL STR/REL Soft Shell - Accessories CONN STRAIN RELIEF ENCLOSE 3POS Mate-N-Lok cable-clamp housing 3W Connector; Soft Shell; 3; Universal MATE-N-LOK II; Nylon; In-Line; AMP Brand Pin & Socket Connectors STRN RLF 3 CKT IN-LN Connector Accessories Strain Relief 3 POS Nylon White Connector Accessories Strain Relief 3 POS Nylon White Product Highlights:Strain ReliefUniversal MATE-N-LOK IINylon Housing MaterialColor = WhiteNumber of Circuits = 3Search Keywords:Power Pin & Socket, Lighting Interconnection Products, Valve Connector, PWRSIGALLP STRAIN RELIEF, 3WAY Connector;SoftShell;3;UniversalMATE-N-LOKII;Nylon;In-Line;AMPBrand Strain relief shell, 640714-1, TE Connectivity TE Connectivity 640714 3路 应力释放支架, 使用于 通用 MATE-N-LOK 连接器 |
| 分类 |
商业参数
| 产品类别 | Pin & Socket Connectors | 标准包装数量 | 1 |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 标准 | RoHSCompliant,ELVCompliant |
| 海关税号 | 85369010 | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 材料阻燃等级 | UL 94V-0 |
电气参数
| 输出数量 | 3 | 连接器类型 - 电压输入 | Universal MATE-N-LOK II |
机械参数
| 颜色 | White | 深度 | 33.02 mm |
| 宽度 | :29mm | 高度 | 8.38 mm |
| 长度 | :33mm | 重量 | 0.001 |
| 材料（通用） | :Nylon | 线径 | 1.02 â 4.83 [0.040 â 0.190] |
| 连接器类型 | SoftShell | 安装样式 | Panel |
| 供货尺寸 | Yes | 壳体材料 | Nylon |
| 总长度 | 28.96 mm | 主要材料 | Interconnect |
| 端接样式 | Screw | 第一触头极性 | Socket (Female) |
| 连接器颜色 | :White | 触点数 | 3 |
| 位数 | 3 | 绝缘材料 - 材质 | :Nylon (Polyamide) |
| 典型触点布局 | In-Line | 外径-未扩张 | :4.83mm |
产品信息
| 备注 | Strain relief part number represents one half of a strain relief. Two of a part | 类型 | Strain Relief |
| 样式 | :#6 x 10 mm Lg Type B Pan head sheet metal screw | 系列 | Universal Mate-N-Lok |
| 制造商全称 | MATE-N-LOK | 产品子类型 | Strain Relief |
| 附件类型 | Strain Relief | 电路数 | 3 |
| 适用产品/相关产品 | Universal MATE-N-LOK II Series | ||
文档与媒体
相关型号
770018-1
te connectivity / amp
Conn Housing PL 3 POS 6.35mm Crimp ST Bulk .250" Centerline, 600 V, 19 - 36 A max CONN PLUG 3POS UMNL-II (2PC) Housing,plug,kit,Mate-n-lokII,3Way Pin & Socket Connectors 3 POS IN LINE PLUG Conn Housing PL 3 POS 6.35mm Crimp ST Bulk Product Highlights:HousingUniversal MATE-N-LOK IINot CompactPCI6.35 mm Centerline, MatrixNumber of Circuits = 3Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP PLUG AND SOCKET CONNECTOR HOUSING Connector,SoftShell;UniversalMATE-N-LOKII;3;Plug;Nylon;White;0.25in. Crimp housing Pitch6.35 mm Poles 3 MATE-N-LOK Universal, 770018-1, TE Connectivity TE Connectivity Universal MATE-N-LOK II 系列 6.35mm 节距 3 路 直 公 压接连接器外壳 03P UMNLII IN-LNE PLUG HSG KIT

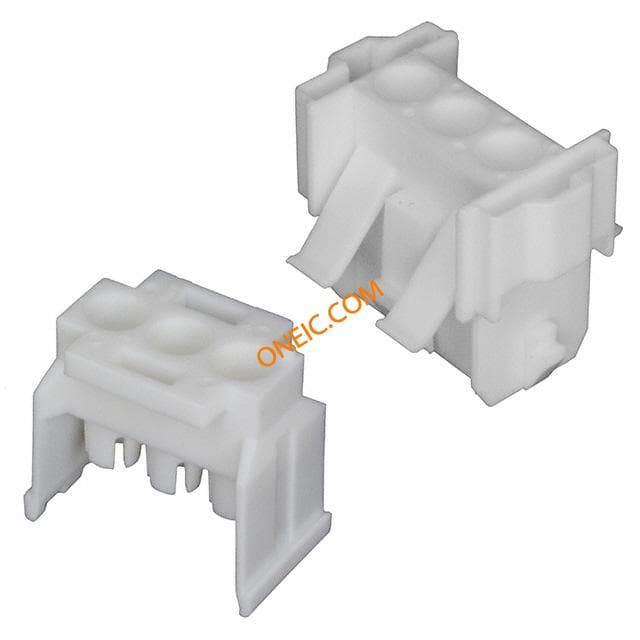

770025-1
