640606-8

点击放大查看

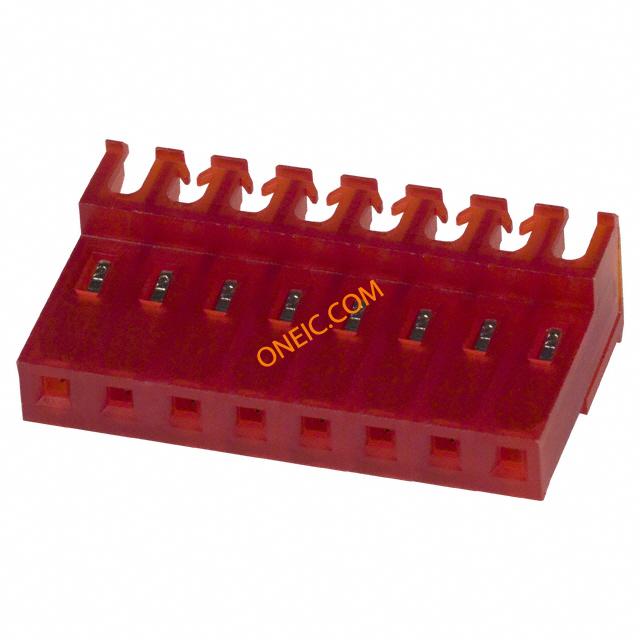

640606-8

制造商
TE Connectivity Ltd.
描述Conn IDC Connector F 8 POS 3.96mm IDT RA Cable Mount MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 8POS 22AWG MTA156 Headers & Wire Housings FEED THRU WO TAB 8P Red 22 AWG Conn IDC Connector F 8 POS 3.96mm IDT RA Cable Mount Product Highlights:Connector8 PositionsConnector Type = ReceptacleConnector Style = Feed ThroughMTA-156 Product LineSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 08P MTA156 CONN ASSY 22AWG RED
分类
连接器解决方案板对板连接器板对板连接器

商业参数

其他名称A24995产品类别Headers & Wire Housings
标准包装数量Bulk工厂包装数量250

合规参数

RoHSContains lead / RoHS non-compliantUL等级获得认可
UL档案号E28476CSA档案号LR7189
标准编号CSA, ULCSA认证Certified
材料阻燃等级UL 94V-2

电气参数

额定电压600 VAC供电电压600
接触电阻3 mohm连接器阻抗IDC
最大额定电流7 A最小供电电压600VAC

机械参数

颜色Red深度9.78 mm
间距3.96 mm高度18.42 mm
长度31.7 mm [ 1.248 in ]包装方式Bulk
导线类型Discrete or Ribbon Cable壳体颜色白色
电缆类型分离式导线, 绞线导线线规22 AWG
端接方式IDT触头类型Female Socket
外壳颜色Red安装类型Free Hanging (In-Line)
连接器类型Receptacle接触镀层Tin-Lead Over Nickel
触点时序Without安装样式Wire
排数1外壳材料（壳体）标准
插入件材料铜合金触头材料Copper Alloy
壳体材料Nylon总长度31.7 mm
包装数量250面板安装类型不带
电缆端接方式IDC端接样式IDC
第一触头极性Socket (Female)触点数8
端接表面处理带有接触件端接Locking Lance
绝缘直径2.41 mm [ .095 in ]位数8
兼容外壳尺寸（如TM-700等）MTA .156 头安装孔直径不带
接触件表面处理 - 配合锡铅典型触点布局同轴
表面贴装焊盘尺寸Without接触镀层厚度80µin (2.03µm)
静电放电屏蔽带有

产品信息

备注肋之间的条纹可能会减少类型IDC Connector
连接器性别F系列MTA-156
产品特性Feed Through可密封否
产品子类型Connector Assemblies
