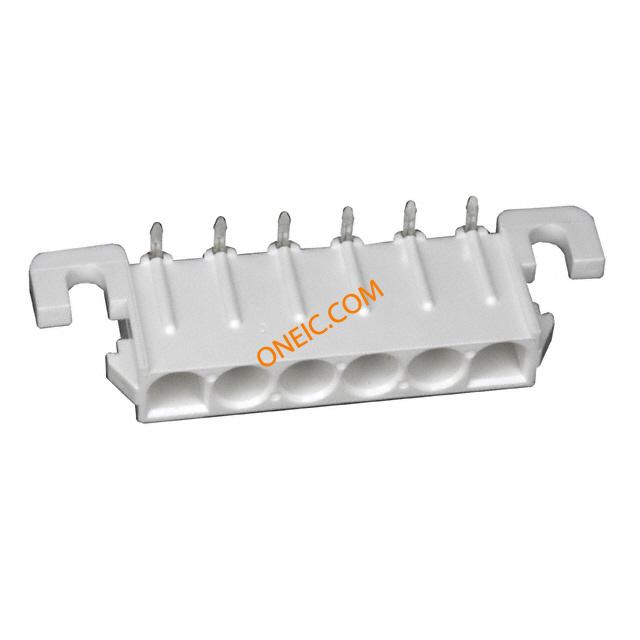

640583-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Power HDR 6 POS 6.35mm Solder RA Thru-Hole 6 Terminal 1 Port .250" Centerline, 600 V, 19 - 36 A max CONN HEADER 6POS RTANG .250 TIN MATE-N-LOK 6 Male Right Angle Heavy Duty Power Connector, Through Hole 19A,600V ac/dc Pin & Socket Connectors 6 P R/A PIN HEADER Conn Power HDR 6 POS 6.35mm Solder RA Thru-Hole 6 Terminal 1 Port Product Highlights:HeaderUniversal MATE-N-LOKNot CompactPCI6.35 mm Centerline, MatrixNumber of Circuits = 6Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP CONNECTOR, RECEPT UNIVM-N-LHEADER,06PUMNLHDRASSYR/A94VO TE Connectivity Universal MATE-N-LOK 系列 6.35mm节距 6路 直角 PCB 针座, 焊接端接, 19A , 通孔 06P UMNL HDR ASSY R/A 94VO |
| 分类 |
商业参数
| 产品类别 | Pin & Socket Connectors | 标准包装数量 | Bulk |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
电气参数
| 量程（°/s） | :TE - Universal MATE-N-LOK Series | 额定电压 | 600 V ac/dc |
| 最大额定电流 | 19A | 最小供电电压 | 600VDC/600VAC |
机械参数
| 颜色 | White | 深度 | 17.27 mm |
| 间距 | 6.35 mm | 高度 | 9.14 mm |
| 重量 | 0.00455 | 包装方式 | Bulk |
| 端接方式 | Solder | 触头类型 | Male Pin |
| 安装类型 | Through Hole | 连接器类型 | Header, Shrouded |
| 接触镀层 | Tin | 紧固类型 | Locking Ramp |
| 安装样式 | Through Hole | 排数 | 1 |
| 触头材料 | Phosphor Bronze | 壳体材料 | Nylon |
| 主要材料 | InterconnectSystem | 端接样式 | Solder Pin |
| 第一触头极性 | Pin (Male) | 连接器颜色 | :White |
| 触点数 | 6 | 接触件端接 | :Through Hole Right Angle |
| 位数 | 6 | 第一连接器安装类型 | :PCB |
产品信息
| 类型 | Power | 连接器性别 | HDR |
| 系列 | MATE-N-LOK | CAD图纸 | 3D CAD Model |
| 制造商全称 | MATE-N-LOK | 产品子类型 | Header Assemblies |
| 端口数 | 1 Port | 加载位置数 | All |
环境参数
| 工作温度 | -55C to 85C | ||
