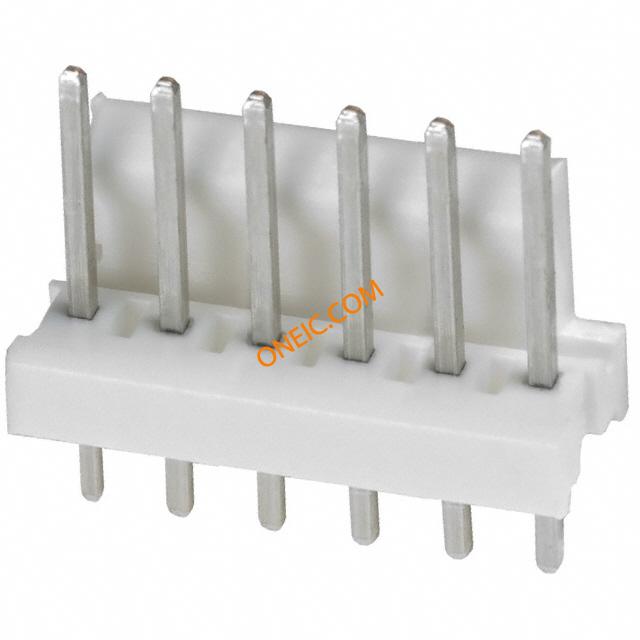

640454-6

点击放大查看

640454-6

制造商
TE Connectivity Ltd.
描述Conn Wire to Board HDR 6 POS 2.54mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER VERT 6POS .100 TIN TE Connectivity MTA-100 Series 2.54mm Pitch 6 Way 1 Row Straight PCB Header, Solder Termination, 5A Headers & Wire Housings POLARIZED HEADER 6P Straight Post tin Conn Wire to Board HDR 6 POS 2.54mm Solder ST Thru-Hole Product Highlights:MTA-100 ConnectorsNumber of Positions = 6Mating Type = HeaderWire-to-Board Application2.54 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP HEADER, VERTICAL, 0.1", 6WAY Header,Polarized;MTA-100;6;250VAC;Polyester;Tin;CopperAlloy;0.100in. TE Connectivity MTA-100 系列 2.54mm节距 6路 (1排) 直 PCB 针座, 焊接端接, 5A , 通孔 06P MTA100 HDR ASSY SQ STR POL
分类
连接器解决方案板对板连接器板对板连接器
对参数有疑问？问 AI 助手

商业参数

产品类别Headers & Wire Housings标准包装数量Bulk
工厂包装数量2000

合规参数

RoHSLead free / RoHS Compliant标准RoHSCompliant,ELVCompliant,UL94V-0
海关税号85369010无铅定义Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c
认证机构CSA,ULRoHS/ELV合规状态RoHS compliant, ELV compliant
材料阻燃等级UL 94V-0

电气参数

量程（°/s）:TE - MTA-100 Series额定电压250 V ac
工作电压:250V接触电阻6 mohm
额定交流电压250最大额定电流5A
最小供电电压250VAC

机械参数

颜色Natural深度5.72 mm
间距2.54 mm高度10.03 mm
重量0.057包装方式Bulk
端口尺寸0.025in.遮蔽类型No
端接方式Solder触头类型Male Pin
引脚间距:2.54mm引脚长度（针脚）0.14"
第二连接器Without触点形状Square
外壳颜色White安装类型Vertical
行程角度Straight连接器类型Header, Unshrouded
接触镀层Tin安装样式Through Hole
排数1连接器用途Header
触头材料Copper Alloy壳体材料Polyester
总长度15.24 mm安装特性Without
面板安装类型Without主要材料InterconnectSystem
尺寸/外形0.64 [.025]插针孔直径0.1"
端接样式Through Hole第一触头极性Pin (Male)
配接方向With触点数6
接触件端接:Through Hole Vertical位数6
后壳中断功能Without中心触点镀层工艺0.100in.
柱体长度（配合）0.14in.安装孔直径0.04"
典型触点布局2.54 [0.100]接触长度 - 配合0.295" (7.49mm)
触点材料 - 柱Copper Alloy端子柱长度3.56 [0.140]
恢复后小径No

产品信息

类型Wire to Board连接器性别HDR
系列MTA-100产品特性Polarizing Key
CAD图纸3D CAD Model制造商全称AMP
产品子类型MTA-100 Connectors连接类型Printed Circuit Board
应用细节Wire-to-Board加载位置数All
跳过的位置数None

环境参数

工作温度-55C to 105C

文档与媒体

PDF 文档
101735.pdf
在线文档
TE.Connect?C=1&PN=640454-6&M=BYPN&LG=1&I=13
在线文档
640454-6
