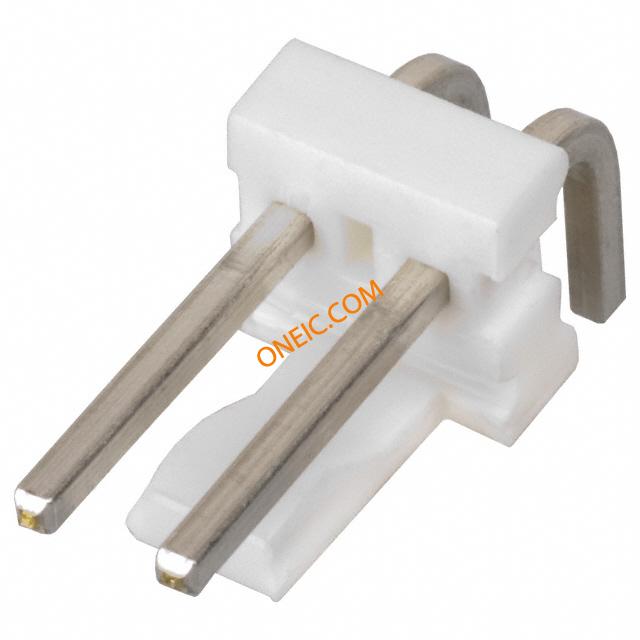

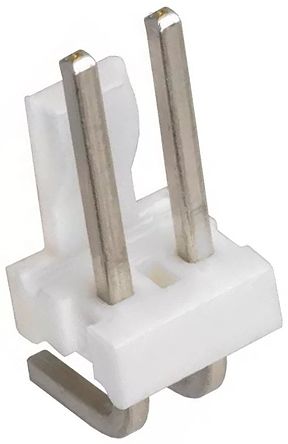

640387-2

点击放大查看

640387-2

制造商
TE Connectivity Ltd.
描述Conn Wire to Board HDR 2 POS 3.96mm Solder RA Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER RTANG 2POS .156 TIN TE Connectivity MTA-156 Series 3.96mm Pitch 2 Way 1 Row Right Angle PCB Header, Solder Termination, 7A Headers & Wire Housings POLARIZED HDR RA 2P Square post tin Conn Wire to Board HDR 2 POS 3.96mm Solder RA Thru-Hole Product Highlights:MTA-156 ConnectorsNumber of Positions = 2Mating Type = HeaderWire-to-Board Application3.96 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP WIRE-BOARD CONNECTOR HEADER 2POS, 3.96MM MTA-156HEADER-TIN,02PMTA156HDRASSYSQR/A TE Connectivity MTA-156 系列 3.96mm节距 2路 (1排) 直角 PCB 针座, 焊接端接, 7A , 通孔 02P MTA156 HDR ASSY SQ R/A
分类
连接器解决方案板对板连接器板对板连接器
对参数有疑问？问 AI 助手

商业参数

产品类别Headers & Wire Housings标准包装数量Bulk
工厂包装数量2000

合规参数

RoHSLead free / RoHS Compliant海关税号85411000
材料阻燃等级UL 94 V-0

电气参数

量程（°/s）:TE - MTA-156 Series额定电压600 V ac
开关功能Friction Lock接触电阻3 mohm
最大额定电流7A最小供电电压600VAC

机械参数

颜色Natural深度17.32 mm
间距3.96 mm高度7.62 mm
重量0包装方式Bulk
端接方式Solder触头类型Male Pin
外壳颜色White安装类型Through Hole, Right Angle
连接器类型Header, Unshrouded接触镀层Tin
紧固类型Friction Lock安装样式Through Hole
排数1触头材料Copper Alloy
壳体材料Polyester总长度7.92 mm
主要材料InterconnectSystem端接样式Through Hole
第一触头极性Pin (Male)触点数2
接触件端接:Through Hole Right Angle位数2
接触长度 - 配合0.400" (10.16mm)端子柱长度3.18 mm

产品信息

类型Wire to Board连接器性别HDR
系列MTA-156制造商全称MTA-156
产品子类型Headers应用细节Wire-to-Board
加载位置数All

环境参数

工作温度-55C to 105C

文档与媒体

在线文档
640387-2
