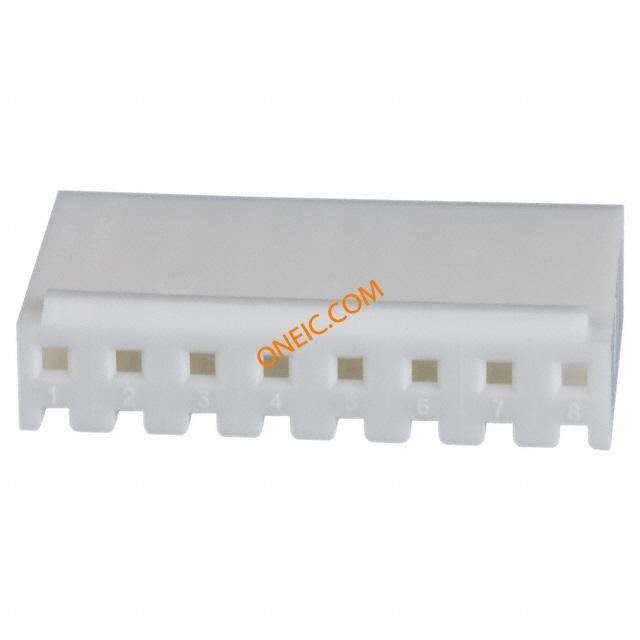

640250-8

点击放大查看

640250-8

制造商
TE Connectivity Ltd.
描述Conn Housing RCP 8 POS 3.96mm Crimp ST Cable Mount MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 8 POS W/RAMP SL-156 8w housing without polarising tabs Headers & Wire Housings 8P SL156 RECEPTACLE Conn Housing RCP 8 POS 3.96mm Crimp ST Cable Mount Product Highlights:SL-156 HousingsNumber of Positions = 8Mating Type = ReceptacleWire-to-Board Application3.96 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP Connector;Receptacle;8;Crimp;LockingRamp;180deg;Nylon;SL-156Housings TE Connectivity SL-156 系列 3.96mm 节距 8 路 直 母 电缆安装 压接连接器外壳 08P SL156 HSG W/LCK RAMP NATL
分类
连接器解决方案矩形连接器高可靠性矩形连接器
对参数有疑问？问 AI 助手

商业参数

产品类别Headers & Wire Housings标准包装数量Bulk
工厂包装数量1

合规参数

RoHSLead free / RoHS Compliant标准UL94V-0FlammabilityRating,RoHSCompliant,ELVCompliant
UL等级已获认证无铅定义Not relevant for lead free process
UL档案号E28476认证机构CSA,UL
CSA档案号LR 7189标准编号CSA, UL
CSA认证CertifiedRoHS/ELV合规状态RoHS compliant, ELV compliant
材料阻燃等级UL 94V-0

电气参数

额定电压250 V开关功能Locking Ramp
供电电压250 VAC连接器阻抗压接
最大额定电流5 A最小供电电压250VAC

机械参数

颜色Natural深度16.76mm
间距3.96 mm宽度7.27mm
高度7.27 mm长度31.65mm
包装方式Bulk遮蔽类型No
壳体颜色自然出线方向180°
导线线规16-24 AWG方向直
排间距0.156in.端接方式Crimp
触头类型Female Socket第二连接器With
外壳颜色White安装类型Straight
行程角度Straight连接器类型Crimp
紧固类型Locking Ramp安装样式Free Hanging
排数1外壳材料（壳体）标准
连接器用途Receptacle高度（英寸）6.35
锁定特性Locking Ramp壳体材料Nylon
总长度31.65 mm安装特性Without
包装数量1面板安装类型Without
主要材料InterconnectSystem导线端接方式Crimp
插针孔直径0.156"端接样式Crimp
第一触头极性Socket (Female)配接方向Without
触点数8端接表面处理不带
接触件端接Crimp绝缘直径Standard
位数8兼容外壳尺寸（如TM-700等）SL .156 端子
安装孔直径不带典型触点布局3.96 [0.156]
静电放电屏蔽不带

产品信息

备注Recommended contact: Part No. 640252-1,-2 and Part No. 770476-1,-2.类型Housing
连接器性别RCP系列SL-156
可密封否CAD图纸3D CAD Model
制造商全称AMP产品子类型SL-156 Housings
应用细节Wire-to-Board适用产品/相关产品Wire-to-Board Economy Power Connector

环境参数

工作温度-55C to 105C
