点击放大查看

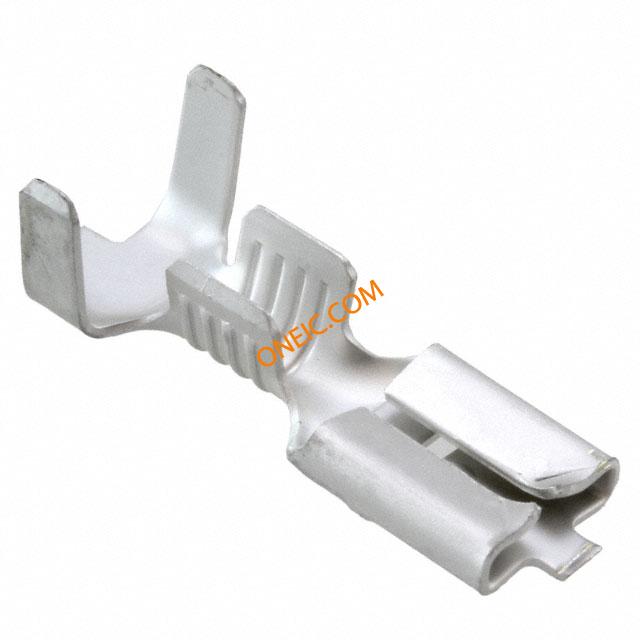

63832-2
| 制造商 | TE Connectivity Ltd. |
| 描述 | Quick Disconnect Terminal 14-18AWG F 16.26mm 7.24mm Tin Strip Terminals RECPT FASTON 187 FASTON Uninsulated Receptacles & Housings CONN RECEPT FAST 14-18 AWG .187 FASTON Uninsulated Receptacles & Housings Product Highlights:ReceptacleTab Fit = 4.75 x 0.64 mmBoard Mount = NoReceptacle Style = StraightInsulation SupportSearch Keywords:Quick Connect/Disconnect Tabs and Receptacles, relay connectors, fast-on, AMPIP, Blade Receptacle, Blade Tab, Packard Style Tab, E-SPRING CONN QC RCPT 14-18AWG 0.187 FASTON .187 RECEPTACLE 18-14 AWG TPBR |
| 分类 |
商业参数
| 产品 | Faston Terminals | 其他名称 | A111557CT |
| 标准包装规格 | 12,500 | 标准包装数量 | 25,000 |
| 工厂包装数量 | 12500 | ||
合规参数
| RoHS | RoHS Compliant | UL等级 | 已获认证 |
| UL列名 | Listed | 无铅定义 | Not relevant for lead free process |
| 认可国家 | 是 | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 认证机构标志 | Yes | ||
电气参数
| 核心类型 | Open | 最大频率 | Single |
| 开关功能 | 快速连接 | 连接器类型 - 电压输入 | Without |
机械参数
| 表面处理 | Tin | 材料（通用） | Brass |
| 包装方式 | Reel | 插片宽度 | 4.75 x 0.64 [.187 x .025] |
| 厚度 | 0.36 [0.014] | 电缆类型 | Regular Wire |
| 绝缘类型 | Non-Insulated | 插片长度 | 0.250" (6.35mm) |
| 导线线规 | 14-18 AWG | 端接方式 | Crimp |
| 安装类型 | Free Hanging (In-Line) | 插片厚度 | 0.025" (0.64mm) |
| 端子类型 | Standard | 电缆材料 | Stranded |
| 连接器类型 | Yes | 接触镀层 | Tin |
| 连接器样式 | Straight | 连接器用途 | Wire & Cable |
| 箔压接区域 | F-Crimp | 插入件材料 | 黄铜 |
| 插入力 | Normal | 触头材料 | Brass |
| 总长度 | Commercial | 包装数量 | Strip |
| 导线端接方式 | No | 绝缘高度 | Insulation Support |
| 端接样式 | 母端 | 适用端子尺寸 | 4.57 – 5.84 mm [ .18 – .23 in ] |
| 绝缘直径 | (2) 2.79 [.110] Max., 4.57-5.84 [.180-.230] | 绝缘材料 - 类型 | No |
| 总厚度 | .36 mm [ .014 in ] | 法兰上方插针尺寸 | 4.75 mm [ .187 in ] |
| 法兰下方引脚尺寸 | .64 mm [ .025 in ] | 线规或范围 - mm² | 0.80-2.00² [18-14], (2) 1.25-1.40; [(2) 16] |
| 第二连接器安装特性 | No | 外径-未扩张 | 5.84 mm [ .23 in ] |
产品信息
| 连接器性别 | Female | 系列 | 187 |
| 制造商全称 | AMP | 产品子类型 | Receptacle |
