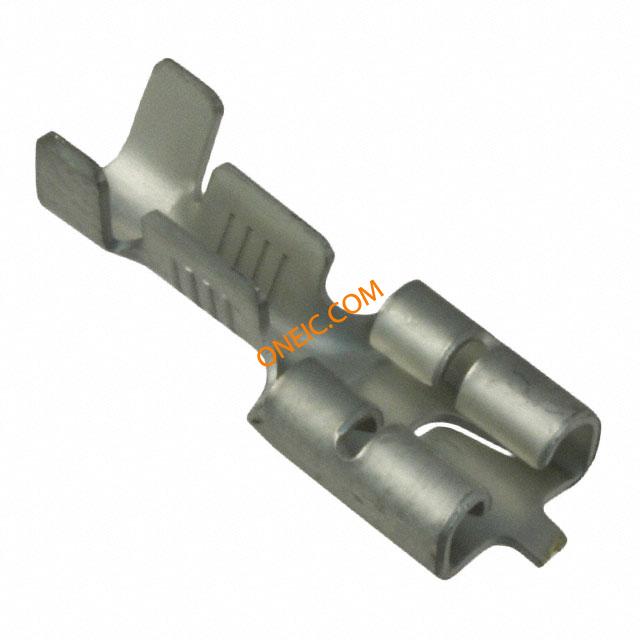

点击放大查看
63537-2
| 制造商 | TE Connectivity Ltd. |
| 描述 | Quick Disconnect Terminal 14-18AWG F 19.18mm 7.62mm Tin Strip Terminals .25 FAST REC 18-14 FASTON Uninsulated Receptacles & Housings CONN RECEPT FAST 14-18 AWG .250 Quick Disconnect Terminal 14-18AWG F 19.18mm 7.62mm Tin Strip Product Highlights:ReceptacleTab Fit = 6.35 x 0.81 mmBoard Mount = NoReceptacle Style = StraightInsulation SupportSearch Keywords:Quick Connect/Disconnect Tabs and Receptacles, relay connectors, fast-on, AMPIP, Blade Receptacle, Blade Tab, Packard Style Tab, E-SPRING CONTACT, CRIMP, RECEPTACLE, 18-14AWG FASTON .250 RECEPTACLE 18-14 AWG TPBR |
| 分类 |
商业参数
| 产品 | Faston Terminals | 产品类别 | Terminals |
| 标准包装数量 | 11,000 | 工厂包装数量 | 11000 |
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85366910 |
| UL列名 | Listed | 抗辐射加固 | No |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 认证机构标志 | Yes | ||
电气参数
| 量程（°/s） | :TE - FASTON 250 Series | 连接器类型 - 电压输入 | Without |
机械参数
| 颜色 | Not Required | 深度 | 7.62 mm |
| 表面处理 | Tin | 重量 | 0.005 |
| 材料（通用） | Brass | 包装方式 | Tape & Reel (TR) |
| 插片宽度 | 6.35 x 0.81 [.250 x .032] | 厚度 | 0.46 [0.018] |
| 电缆类型 | Stranded | 绝缘类型 | Not Insulated |
| 插片长度 | 0.305" (7.75mm) | 导线线规 | 18-14 |
| 端接方式 | Crimp | 基体材料 | Brass |
| 安装类型 | Free Hanging (In-Line) | 螺柱/焊片尺寸 | 2.79 mm x 0.032 in |
| 插片厚度 | 0.032" (0.81mm) | 端子类型 | Standard |
| 连接器类型 | :Female Disconnect | 接触镀层 | Tin |
| 壳体镀层 | Tin | 连接器样式 | Straight |
| 箔压接区域 | F-Crimp | 插入力 | Low |
| 触头材料 | Brass | 绝缘颜色 | :Uninsulated |
| 总长度 | Premier | 刀片材料 | :Brass |
| 包装数量 | Strip | 绝缘高度 | Insulation Support |
| 端接样式 | Crimp | 绝缘直径 | 3.05-4.32 [.120-.170] |
| 绝缘材料 - 材质 | :Uninsulated | 线规或范围 - AWG | :18AWG |
| 线规或范围 - mm² | 0.80-2.00² [18-14] | 第二连接器安装特性 | No |
产品信息
| 备注 | Stress Relieved. | 连接器性别 | Female |
| 系列 | 250 | 制造商全称 | AMP |
| 产品子类型 | Receptacle | ||
