点击放大查看

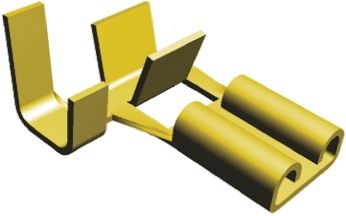

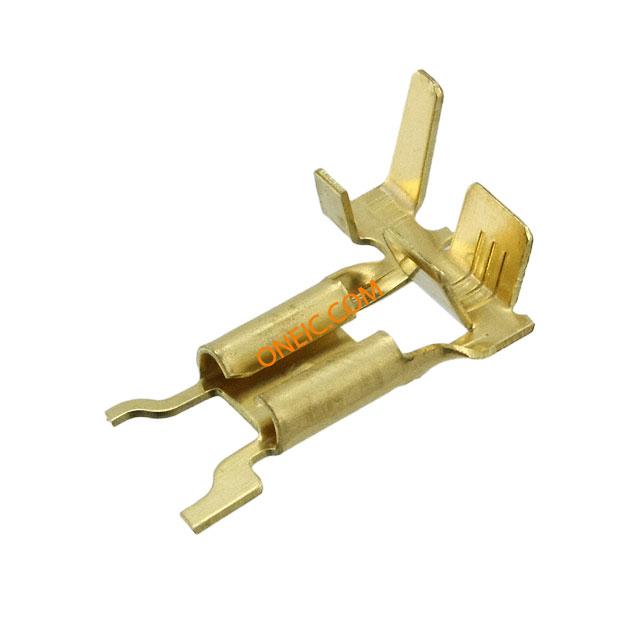

63512-1
| 制造商 | |
| 描述 | Quick Disconnect Terminal 14-18AWG RCP 19.18mm 10.4mm Strip Terminals NFLG-DSC 18-14 AWG FASTON Uninsulated Receptacles & Housings CONN RECT FLG FAST 14-18AWG .187 Receptacle flag terminal, FASTON 187 Quick Disconnect Terminal 14-18AWG RCP 19.18mm 10.4mm Strip Product Highlights:Product Classification = Connectors - Terminals and SplicesTerminalTerminal Type = ReceptacleTab Fit = 4.75 x 0.51 mmBoard Mount = NoSearch Keywords:Quick Connect/Disconnect Tabs and Receptacles, relay connectors, fast-on, AMPIP, Blade Receptacle, Blade Tab, Packard Style Tab, E-SPRING CONTACT, CRIMP, RECEPTACLE, 18-14AWG CONTACT,FLAG,0.80-2.00MMª TE Connectivity FASTON .187 系列 非绝缘 旗形压接端子 , 4.75 x 0.51mm FASTON 187 FLAG RECEPTACLE 18-14 AWG BR |
| 分类 |
商业参数
| 产品 | Faston Terminals | 其他名称 | A100787CT |
| 产品类别 | Terminals | 标准包装数量 | 5,000 |
| 工厂包装数量 | 5000 | ||
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85366910 |
| UL列名 | Listed | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 认证机构标志 | Yes |
电气参数
| 量程（°/s） | :TE - FASTON 250 Series | 连接器类型 - 电压输入 | Without |
机械参数
| 表面处理 | None | 长度 | 10.41 mm |
| 重量 | 0.005 | 材料（通用） | Brass |
| 包装方式 | Reel | 插片宽度 | 4.75 x 0.51 [.187 x .020] |
| 厚度 | 0.41 [0.016] | 电缆类型 | Regular Wire |
| 绝缘类型 | Not Insulated | 插片长度 | :0.187" x 0.02" |
| 导线线规 | 18-14 | 端接方式 | Crimp |
| 安装类型 | Wire | 螺柱/焊片尺寸 | 6.25 mm x 6.1 mm |
| 插片厚度 | 0.020" (0.51mm) | 端子类型 | Angled - 90°, Flag |
| 连接器类型 | :Female Disconnect | 接触镀层 | :- |
| 线束直径 | 2 mm | 连接器样式 | Flag |
| 箔压接区域 | F-Crimp | 插入力 | Standard |
| 触头材料 | Brass | 绝缘颜色 | :Uninsulated |
| 总长度 | Budget | 刀片材料 | :Brass |
| 包装数量 | Strip | 绝缘高度 | Insulation Support |
| 端接样式 | Crimp | 绝缘直径 | 1.52-3.81 [.060-.150] |
| 绝缘材料 - 材质 | :Uninsulated | 线规或范围 - AWG | :18AWG |
| 线规或范围 - mm² | 0.80-2.00² [18-14] | 第二连接器安装特性 | No |
产品信息
| 连接器性别 | Female | 系列 | 187 |
| 制造商全称 | AMP | 产品子类型 | Receptacle |
