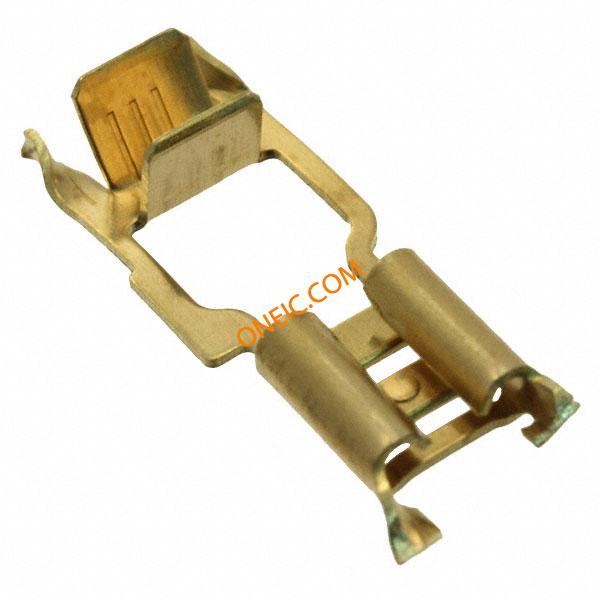

63317-1
| 制造商 | |
| 描述 | Quick Disconnect Terminal 14-18AWG F 10.92mm 6.25mm Strip Terminals 187 FLG FAST REC FASTON Uninsulated Receptacles & Housings CONN RCPT FLAG 14-18 AWG .187 Quick Disconnect Terminal 14-18AWG F 10.92mm 6.25mm Strip Product Highlights:ReceptacleTab Fit = 4.75 x 0.81 mmBoard Mount = NoReceptacle Style = FlagNon-Insulation SupportSearch Keywords:Quick Connect/Disconnect Tabs and Receptacles, relay connectors, fast-on, AMPIP, Blade Receptacle, Blade Tab, Packard Style Tab, E-SPRING FASTON 187 FLAG REC 18-14 AWG BR |
| 分类 |
商业参数
| 产品 | Faston Terminals | 标准包装数量 | 72,000 |
| 工厂包装数量 | 12000 | ||
合规参数
| RoHS | RoHS Compliant | UL等级 | 已获认证 |
| UL列名 | Listed | 抗辐射加固 | No |
| 无铅定义 | Not relevant for lead free process | 认可国家 | 是 |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 认证机构标志 | Yes |
电气参数
| 核心类型 | Open | 最大频率 | Single |
| 开关功能 | 快速连接 | 连接器类型 - 电压输入 | Without |
机械参数
| 颜色 | Not Required | 深度 | 6.25 mm |
| 表面处理 | None | 材料（通用） | Brass |
| 包装方式 | Reel | 插片宽度 | 4.75 x 0.81 [.187 x .032] |
| 厚度 | 0.41 [0.016] | 电缆类型 | Regular Wire |
| 绝缘类型 | Non-Insulated | 导线线规 | 14-18 AWG |
| 端接方式 | Crimp | 基体材料 | Brass |
| 安装类型 | Free Hanging (In-Line), Right Angle | 插片厚度 | 0.032" (0.81mm) |
| 端子类型 | Angled - 90°, Flag | 电缆材料 | Stranded |
| 连接器类型 | Yes | 接触镀层 | 无镀层 |
| 连接器样式 | Flag | 连接器用途 | Wire & Cable |
| 箔压接区域 | F-Crimp | 插入件材料 | 黄铜 |
| 插入力 | Standard | 触头材料 | Brass |
| 总长度 | Budget | 包装数量 | Strip |
| 导线端接方式 | No | 绝缘高度 | Non-Insulation Support |
| 端接样式 | 母端 | 绝缘材料 - 类型 | No |
| 总厚度 | .41 mm [ .016 in ] | 法兰上方插针尺寸 | 4.75 mm [ .187 in ] |
| 法兰下方引脚尺寸 | .81 mm [ .032 in ] | 线规或范围 - mm² | 0.80-2.00² [18-14] |
| 第二连接器安装特性 | No | ||
产品信息
| 连接器性别 | Female | 系列 | 187 |
| 制造商全称 | AMP | 产品子类型 | Receptacle |
