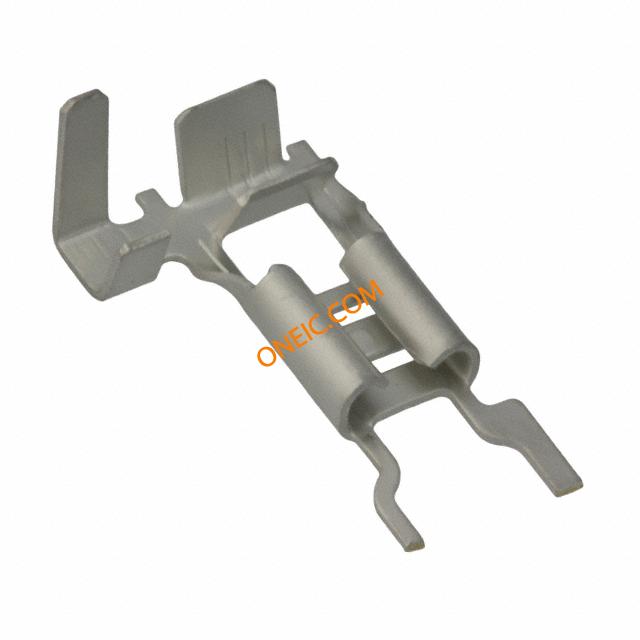

63316-2
| 制造商 | |
| 描述 | Quick Disconnect Terminal 14-18AWG F Tin Strip Terminals 187 FLG FAST REC 18-14.016TPBR FASTON Uninsulated Receptacles & Housings CONN RECEPT FASTON 14-18AWG .187 Quick Disconnect Terminal 14-18AWG F 19.18mm 10.67mm Tin Strip Quick Disconnect Terminal 14-18AWG F 19.18mm 10.67mm Tin Strip Product Highlights:ReceptacleTab Fit = 4.75 x 0.81 mmBoard Mount = NoReceptacle Style = FlagInsulation SupportSearch Keywords:Quick Connect/Disconnect Tabs and Receptacles, relay connectors, fast-on, AMPIP, Blade Receptacle, Blade Tab, Packard Style Tab, E-SPRING FASTON 187 FLAG REC 18-14 AWG TPBR |
| 分类 |
商业参数
| 产品 | Faston Terminals | 其他名称 | A100922CT |
| 标准包装数量 | 7,500 | ||
合规参数
| RoHS | RoHS Compliant | UL等级 | 已获认证 |
| UL列名 | Listed | 无铅定义 | Not relevant for lead free process |
| 认可国家 | 是 | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 认证机构标志 | Yes | ||
电气参数
| 核心类型 | Open | 最大频率 | Single |
| 开关功能 | 快速连接 | 连接器类型 - 电压输入 | Without |
机械参数
| 表面处理 | Tin | 长度 | 10.67 mm |
| 材料（通用） | Brass | 包装方式 | Tape & Reel (TR) |
| 插片宽度 | 4.75 x 0.81 [.187 x .032] | 厚度 | 0.41 [0.016] |
| 电缆类型 | Regular Wire | 绝缘类型 | Not Insulated |
| 导线线规 | 18-14 | 端接方式 | Crimp |
| 安装类型 | Wire | 螺柱/焊片尺寸 | 6.25 mm x 6.1 mm |
| 插片厚度 | 0.032" (0.81mm) | 端子类型 | Angled - 90°, Flag |
| 电缆材料 | Stranded | 连接器类型 | Yes |
| 接触镀层 | Tin | 线束直径 | 2 mm |
| 连接器样式 | Flag | 连接器用途 | Wire & Cable |
| 箔压接区域 | F-Crimp | 插入件材料 | 黄铜 |
| 插入力 | Standard | 触头材料 | Brass |
| 总长度 | Budget | 包装数量 | Strip |
| 导线端接方式 | No | 绝缘高度 | Insulation Support |
| 端接样式 | Crimp | 适用端子尺寸 | 1.52 – 3.81 mm [ .06 – .15 in ] |
| 绝缘直径 | 1.52-3.81 [.060-.150] | 绝缘材料 - 类型 | No |
| 总厚度 | .41 mm [ .016 in ] | 法兰上方插针尺寸 | 4.75 mm [ .187 in ] |
| 法兰下方引脚尺寸 | .81 mm [ .032 in ] | 线规或范围 - mm² | 0.80-2.00² [18-14] |
| 第二连接器安装特性 | No | 外径-未扩张 | 3.81 mm [ .15 in ] |
产品信息
| 连接器性别 | Female | 系列 | 187 |
| 制造商全称 | AMP | 产品子类型 | Receptacle |
文档与媒体
相关型号
3-170823-8
te connectivity / amp
Connector Accessories Insulation Sleeve Soft Vinyl Chloride Natural Loose Piece CONN INSULATION SLEEVE .187 FASTON .250,Connector sleeve,natural Terminals SLEEVE FOR 187 F FASTON Uninsulated Receptacles & Housings FASTON Uninsulated Receptacles & Housings Product Highlights:Insulation SleeveInsulation Diameter = 3.20 [.126] Max. mm [in]Soft Vinyl Chloride MaterialHousing Color = NaturalLine = FASTON .187Search Keywords:Quick Connect/Disconnect Tabs and Receptacles, relay connectors, fast-on, AMPIP, Blade Receptacle, Blade Tab, Packard Style Tab, E-SPRING FASTON.250,Connectorsleeve,natural TE Connectivity 压接端子盖
5-170823-8
TE Connectivity / AMP
Headers & Wire Housings SLEEVE FOR 187 FLAG FASTON FASTON Uninsulated Receptacles & Housings CONN INSULATION SLEEVE .187 BLK
