6278810-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Connector Accessories Jack Kit Multimode Thermoplastic Red Bag Fiber Optic Connectors MTRJ SECURE WRKS JACK KIT RED MT-RJ Connectors MT-RJ SECURE JACK 62.5/125 RED Connector Accessories Jack Kit Multimode Thermoplastic Red Bag Product Highlights:Jack KitJack Kit Style = MT-RJ SECURE® System Outlet JackMultimodeFor Use With Wall Box/WorkstationHousing Color = RedSearch Keywords:fiber optic, Field Installable, rj-45, phone jack, ANSI/TIA/EIA-568-B, ISO/IEC 11801, CENELEC, |
| 分类 |
商业参数
| 产品 | MT-RJ Connectors | 产品类别 | Fiber Optic Connectors |
| 标准包装数量 | Bulk | 工厂包装数量 | 1 |
合规参数
| RoHS | RoHS Compliant By Exemption | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | ||
机械参数
| 颜色 | Red | 材料（通用） | Thermoplastic Elastomer |
| 包装方式 | Bulk | 线缆护套颜色 | Black |
| 基体材料 | Thermoplastic, Glass Filled | 外壳颜色 | Red |
| 插针或插孔 | With | 外壳镀层 | Thermoplastic Elastomer |
| 连接器类型 | Jack | 插入件材料 | Stainless Steel |
| 壳体材料 | Thermoplastic | 包装数量 | Bag |
| 光纤芯径 | 62.5 um, 125 um | 位数 | 2 |
| 光纤包层直径 | 62.5/125 | ||
产品信息
| 工作模式 | Multimode | 备注 | Wall box must be 50.8mm [2.0] deep to install MT-RJ workstation jack kit. Comes |

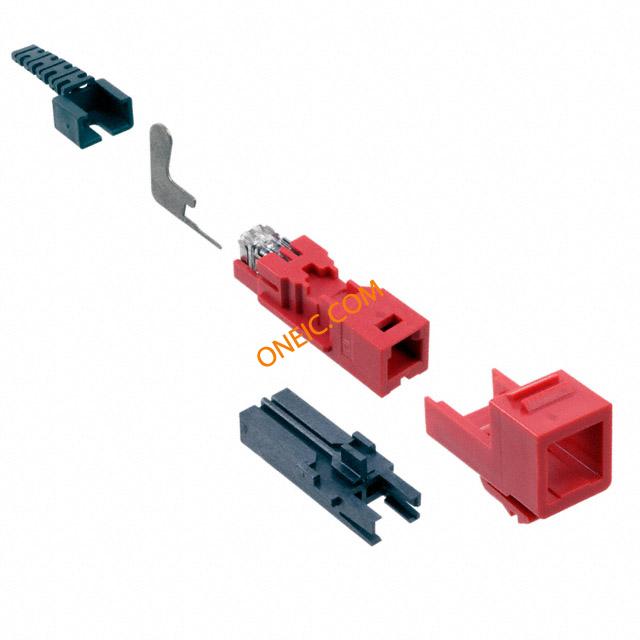

| 类型 | Kit | 值 | 5 pcs - 1 Actuation Key, 1 Boot, 1 Fiber Guide, 1 MT-RJ Jack Module and Cover, 1 SL Jack Housing |
| 产品特性 | Comes with actuation tool. bend limiting boot, and SL Series compatible housing | 套件类型 | MT-RJ SECURE® System Outlet Jack |
| 制造商全称 | AMP | 产品子类型 | Jack Kit |
| 射频系列/标准 | 6278810 | 互连系统 | Yes |
| 其他规格 | With | 适用产品/相关产品 | Wall Box/Workstation |
