点击放大查看

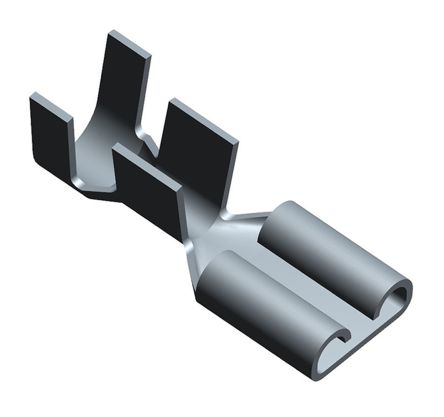

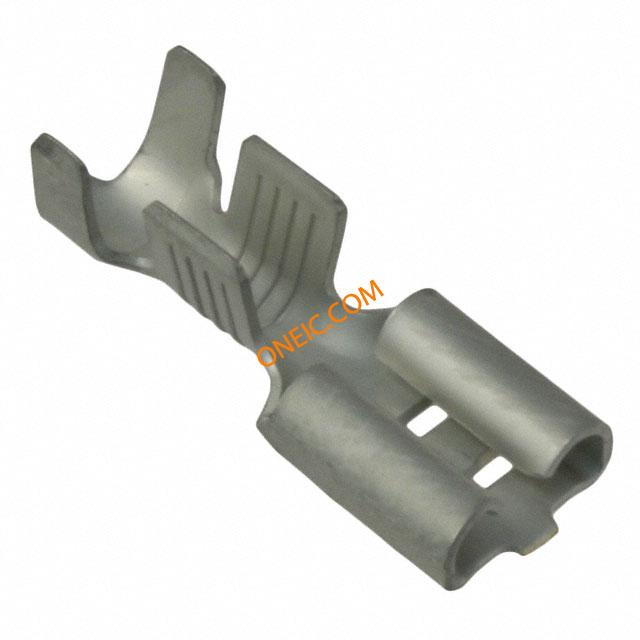

62428-2
| 制造商 | TE Connectivity Ltd. |
| 描述 | Quick Disconnect Terminal 10-12AWG F 19.55mm 7.62mm Tin Strip Terminals 250 FAST RCPT 12-10 FASTON Uninsulated Receptacles & Housings CONN RECEPT FAST 10-12 AWG .250 Quick Disconnect Terminal 10-12AWG F 19.55mm 7.62mm Tin Strip Product Highlights:ReceptacleTab Fit = 6.35 x 0.81 mmBoard Mount = NoReceptacle Style = StraightInsulation SupportSearch Keywords:Quick Connect/Disconnect Tabs and Receptacles, relay connectors, fast-on, AMPIP, Blade Receptacle, Blade Tab, Packard Style Tab, E-SPRING CONTACT, CRIMP, RECEPTACLE, 12-10AWG TE Connectivity 250 系列 压接插座 , 7.62 x 0.46mm, 镀锡触芯 FASTON .250 REC 12-10 AWG TPBR |
| 分类 |
商业参数
| 产品 | Faston Terminals | 其他名称 | A100768CT |
| 产品类别 | Terminals | 标准包装数量 | 9,000 |
| 工厂包装数量 | 9000 | ||
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85366910 |
| UL列名 | Listed | 抗辐射加固 | No |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 认证机构标志 | Yes | ||
电气参数
| 量程（°/s） | :TE - FASTON 250 Series | 连接器类型 - 电压输入 | Without |
机械参数
| 深度 | 7.62 mm | 表面处理 | Tin |
| 重量 | 0.005 | 材料（通用） | Brass |
| 包装方式 | Reel | 插片宽度 | 6.35 x 0.81 [.250 x .032] |
| 厚度 | 0.46 [0.018] | 电缆类型 | Stranded |
| 绝缘类型 | Insulated | 插片长度 | 0.302" (7.67mm) |
| 导线线规 | 10-12 AWG | 端接方式 | Crimp |
| 基体材料 | Brass | 安装类型 | Free Hanging (In-Line) |
| 螺柱/焊片尺寸 | 0.25 in x 0.032 in | 插片厚度 | 0.032" (0.81mm) |
| 端子类型 | Standard | 连接器类型 | :Female Disconnect |
| 接触镀层 | Tin | 壳体镀层 | Tin |
| 连接器样式 | Straight | 箔压接区域 | F-Crimp |
| 插入力 | Normal | 触头材料 | Brass |
| 绝缘颜色 | :Uninsulated | 总长度 | Premier |
| 刀片材料 | :Brass | 包装数量 | Strip |
| 绝缘高度 | Insulation Support | 端接样式 | Crimp |
| 绝缘直径 | 3.81-5.08 [.150-.200] | 绝缘材料 - 材质 | :Uninsulated |
| 线规或范围 - AWG | :12AWG | 线规或范围 - mm² | 3.00-6.00² [12-10] |
| 第二连接器安装特性 | No | ||
产品信息
| 类型 | Quick Disconnect Ter | 连接器性别 | Female |
| 系列 | 250 | 制造商全称 | AMP |
| 产品子类型 | Receptacle | ||
