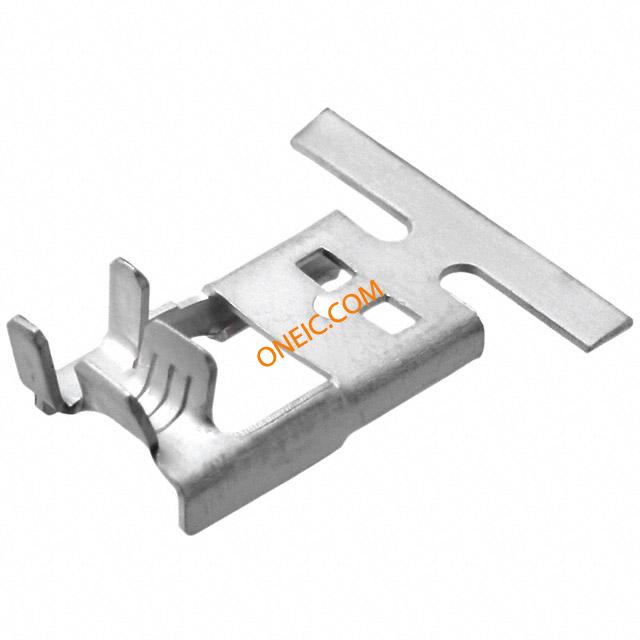

62418-2
| 制造商 | |
| 描述 | Quick Disconnect Terminal 16-22AWG RCP Tin Strip on Reel Terminals 22-16 AWG .250 RCPT FASTON Uninsulated Receptacles & Housings CONN RECEPT FAST 16-22AWG .250 Quick Disconnect Terminal 16-22AWG RCP Tin Strip on Reel Product Highlights:ReceptacleTab Fit = 6.35 x 0.81 mmBoard Mount = NoReceptacle Style = FlagInsulation SupportSearch Keywords:Quick Connect/Disconnect Tabs and Receptacles, relay connectors, fast-on, AMPIP, Blade Receptacle, Blade Tab, Packard Style Tab, E-SPRING FASTON Uninsulated Receptacles & Housings; Terminal Terminal Type: Receptacle Mating Area Interface Dimensions: 6.35 x 0.81 mm Board Mount: No Receptacle Style: Flag Faston 22-16 AWG Straight Insulation Support Receptacle Terminal FASTON .250 FLAG REC 20-16 AWG TPBR |
| 分类 |
商业参数
| 产品 | Faston Terminals | 产品类别 | Terminals |
| 标准包装数量 | 3,000 | 工厂包装数量 | 3000 |
合规参数
| RoHS | RoHS Compliant | UL等级 | 已获认证 |
| UL列名 | Listed | 抗辐射加固 | No |
| 无铅定义 | Not relevant for lead free process | 认可国家 | 是 |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 认证机构标志 | Yes |
电气参数
| 核心类型 | Open | 最大频率 | Single |
| 开关功能 | 快速连接 | 连接器类型 - 电压输入 | Without |
机械参数
| 颜色 | Not Required | 深度 | 7.37 mm |
| 表面处理 | Tin | 材料（通用） | Brass |
| 包装方式 | Reel | 插片宽度 | 6.35 x 0.81 [.250 x .032] |
| 厚度 | 0.41 [0.016] | 电缆类型 | Regular Wire |
| 绝缘类型 | Insulated | 导线线规 | 22-16 |
| 端接方式 | Crimp | 基体材料 | Brass |
| 安装类型 | Free Hanging (In-Line), Right Angle | 插片厚度 | 0.032" (0.81mm) |
| 端子类型 | Angled - 90°, Flag | 电缆材料 | Stranded |
| 连接器类型 | Angled - 90°, Flag | 接触镀层 | Tin |
| 壳体镀层 | Tin | 连接器样式 | Flag |
| 连接器用途 | Wire & Cable | 箔压接区域 | F-Crimp |
| 插入件材料 | 黄铜 | 插入力 | Normal |
| 触头材料 | Brass | 总长度 | Commercial |
| 包装数量 | Strip | 导线端接方式 | No |
| 绝缘高度 | Insulation Support | 端接样式 | Crimp |
| 适用端子尺寸 | 2.29 – 3.56 mm [ .09 – .14 in ] | 绝缘直径 | 2.29-3.56 [.090-.140] |
| 绝缘材料 - 类型 | No | 总厚度 | .41 mm [ .016 in ] |
| 法兰上方插针尺寸 | 6.35 mm [ .25 in ] | 法兰下方引脚尺寸 | .81 mm [ .032 in ] |
| 线规或范围 - mm² | 0.30-1.40² [22-16] | 第二连接器安装特性 | No |
| 外径-未扩张 | 3.56 mm [ .14 in ] | ||
产品信息
| 类型 | Receptacle, Faston | 连接器性别 | Female |
| 系列 | 250 | 制造商全称 | AMP |
| 产品子类型 | Receptacle | ||
