点击放大查看

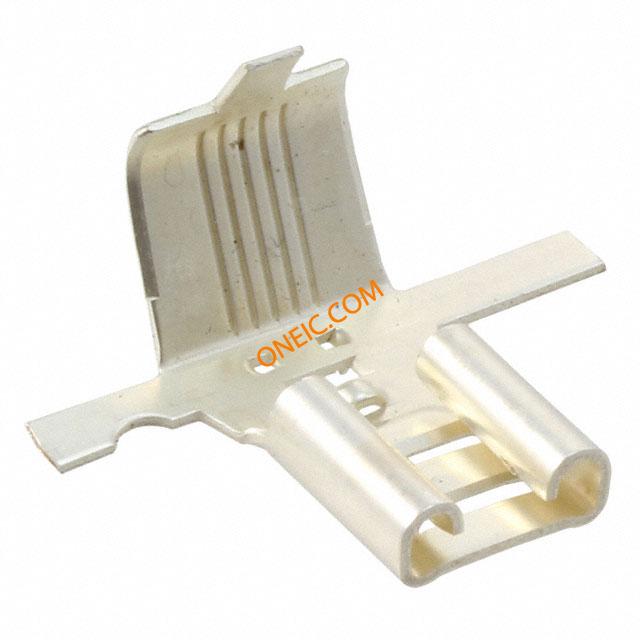

62057-1
| 制造商 | |
| 描述 | Quick Disconnect Terminal 10-12AWG F Silver Strip Terminals NFLG-DSC 12-10 250X032 N-I FASTON Uninsulated Receptacles & Housings CONN RECPT FLAG 10-12AWG 0.250 Quick Disconnect Terminal 10-12AWG F 17.02mm 8.12mm Silver Strip Quick Disconnect Terminal 10-12AWG F 17.02mm 8.12mm Silver Strip Product Highlights:Product Classification = Connectors - Terminals and SplicesTerminalTerminal Type = ReceptacleTab Fit = 6.35 x 0.81 mmBoard Mount = NoSearch Keywords:Quick Connect/Disconnect Tabs and Receptacles, relay connectors, fast-on, AMPIP, Blade Receptacle, Blade Tab, Packard Style Tab, E-SPRING CONN QC RCPT 10-12AWG 0.250 FASTON .250 FLAG REC 12-10 AWG SPPHBZ |
| 分类 |
商业参数
| 产品 | Faston Terminals | 其他名称 | A111385CT |
| 标准包装数量 | 16,000 | 工厂包装数量 | 4000 |
合规参数
| RoHS | RoHS Compliant | UL等级 | 已获认证 |
| UL列名 | Listed | 无铅定义 | Not relevant for lead free process |
| 认可国家 | 是 | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 认证机构标志 | Yes | ||
电气参数
| 核心类型 | Open | 开关功能 | 快速连接 |
| 连接器类型 - 电压输入 | Without | ||
机械参数
| 表面处理 | Silver | 长度 | 0.44 in |
| 材料（通用） | Phosphor Bronze | 包装方式 | Reel |
| 插片宽度 | 6.35 x 0.81 [.250 x .032] | 厚度 | 0.46 [0.018] |
| 电缆类型 | Stranded | 绝缘类型 | Not Insulated |
| 插片长度 | 0.305" (7.75mm) | 导线线规 | 12-10 |
| 端接方式 | Crimp | 安装类型 | Wire |
| 插片厚度 | 0.032" (0.81mm) | 端子类型 | Angled - 90°, Flag |
| 电缆材料 | Stranded | 连接器类型 | Yes |
| 接触镀层 | Silver | 连接器样式 | Flag |
| 箔压接区域 | Tab-Lok | 插入件材料 | 磷青铜 |
| 插入力 | Normal | 触头材料 | Phosphor Bronze |
| 总长度 | Premier | 包装数量 | Strip |
| 导线端接方式 | No | 绝缘高度 | Non-Insulation Support |
| 端接样式 | Crimp | 绝缘材料 - 类型 | No |
| 总厚度 | .46 mm [ .018 in ] | 法兰上方插针尺寸 | 6.35 mm [ .25 in ] |
| 法兰下方引脚尺寸 | .81 mm [ .032 in ] | 接触镀层厚度 | 150 |
| 线规或范围 - mm² | 3.00-6.00² [12-10] | 第二连接器安装特性 | Yes |
产品信息
| 备注 | Right hand | 连接器性别 | Female |
| 系列 | 250 | 制造商全称 | AMP |
| 产品子类型 | Receptacle | ||
