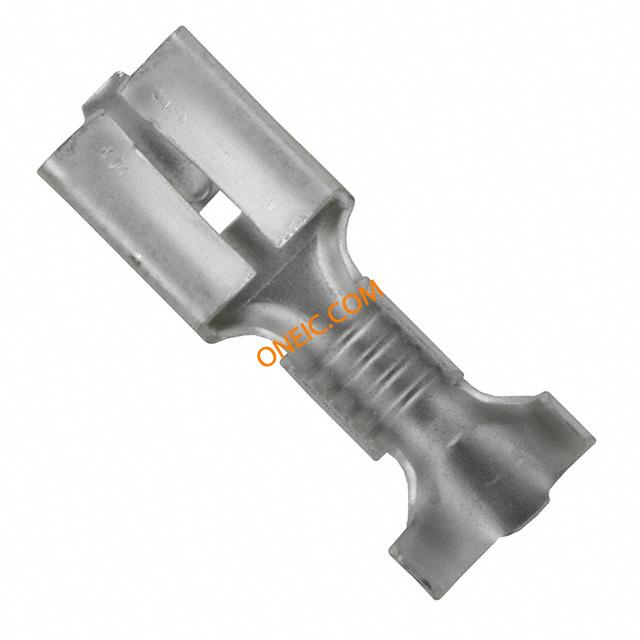

点击放大查看
62016-2
| 制造商 | TE Connectivity Ltd. |
| 描述 | Quick Disconnect Terminal 14-18AWG RCP 16.25mm 5.71mm Tin Strip Terminals 187 FAST RCPT 18-14 FASTON Uninsulated Receptacles & Housings CONN RECEPT FAST 14-18AWG .187 Quick Disconnect Terminal 14-18AWG RCP 16.25mm 5.71mm Tin Strip Product Highlights:ReceptacleTab Fit = 4.75 x 0.51 mmBoard Mount = NoReceptacle Style = StraightInsulation SupportSearch Keywords:Quick Connect/Disconnect Tabs and Receptacles, relay connectors, fast-on, AMPIP, Blade Receptacle, Blade Tab, Packard Style Tab, E-SPRING FASTON Female Crimp 14-18 AWG Brass (Tin Finish) Non-Insulated Receptacle FASTON .187 RECEPTACLE 18-14 AWG TPBR |
| 分类 |
商业参数
| 产品 | Faston Terminals | 其他名称 | A27731CT |
| 产品类别 | Terminals | 标准包装数量 | 12,000 |
| 工厂包装数量 | 12000 | ||
合规参数
| RoHS | RoHS Compliant | UL等级 | 已获认证 |
| UL列名 | Listed | 抗辐射加固 | No |
| 无铅定义 | Not relevant for lead free process | 认可国家 | 是 |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 认证机构标志 | Yes |
电气参数
| 核心类型 | Open | 最大频率 | Single |
| 开关功能 | 快速连接 | 连接器类型 - 电压输入 | Without |
机械参数
| 颜色 | Not Required | 深度 | 6.6 mm |
| 表面处理 | Tin | 长度 | 0.64 in |
| 材料（通用） | Brass | 包装方式 | Reel |
| 插片宽度 | 4.75 x 0.51 [.187 x .020] | 厚度 | 0.36 [0.014] |
| 电缆类型 | Regular Wire | 绝缘类型 | Not Insulated |
| 插片长度 | 0.250" (6.35mm) | 导线线规 | 18-14 |
| 端接方式 | Crimp | 引脚间距 | 0.250" (6.35mm) |
| 基体材料 | Brass | 安装类型 | Wire |
| 螺柱/焊片尺寸 | 0.225 in x 0.25 in | 插片厚度 | 0.020" (0.51mm) |
| 端子类型 | Standard | 电缆材料 | Stranded |
| 连接器类型 | Standard | 接触镀层 | Tin |
| 壳体镀层 | Tin | 线束直径 | 2 mm |
| 连接器样式 | Straight | 连接器用途 | Wire & Cable |
| 箔压接区域 | F-Crimp | 插入件材料 | 黄铜 |
| 插入力 | Normal | 触头材料 | Brass |
| 总长度 | Commercial | 包装数量 | Strip |
| 导线端接方式 | No | 绝缘高度 | Insulation Support |
| 端接样式 | Crimp | 适用端子尺寸 | 3.81 – 4.83 mm [ .15 – .19 in ] |
| 绝缘直径 | 3.81-4.83 [.150-.190] | 绝缘材料 - 类型 | No |
| 总厚度 | .36 mm [ .014 in ] | 法兰上方插针尺寸 | 4.75 mm [ .187 in ] |
| 法兰下方引脚尺寸 | .51 mm [ .02 in ] | 线规或范围 - mm² | 0.80-2.00² [18-14] |
| 第二连接器安装特性 | No | 外径-未扩张 | 4.83 mm [ .19 in ] |
产品信息
| 类型 | Quick Disconnect Ter | 连接器性别 | Female |
| 系列 | 187 | 制造商全称 | AMP |
| 产品子类型 | Receptacle | ||
